Epson Perfection4180 Photo

EPSON Perfection4180 Photo Revision A
MAINTENANCE Overview 56
6.1.2 Lubrication
Lubrication is required when any part of the Carriage Unit of the scanner has been
replaced or the Carriage moves with noticeably large operation noise. The specified
grease is indicated in Table 6-1, and the lubrication points are shown in Figure 6-1.
Table 6-1. Specified Grease

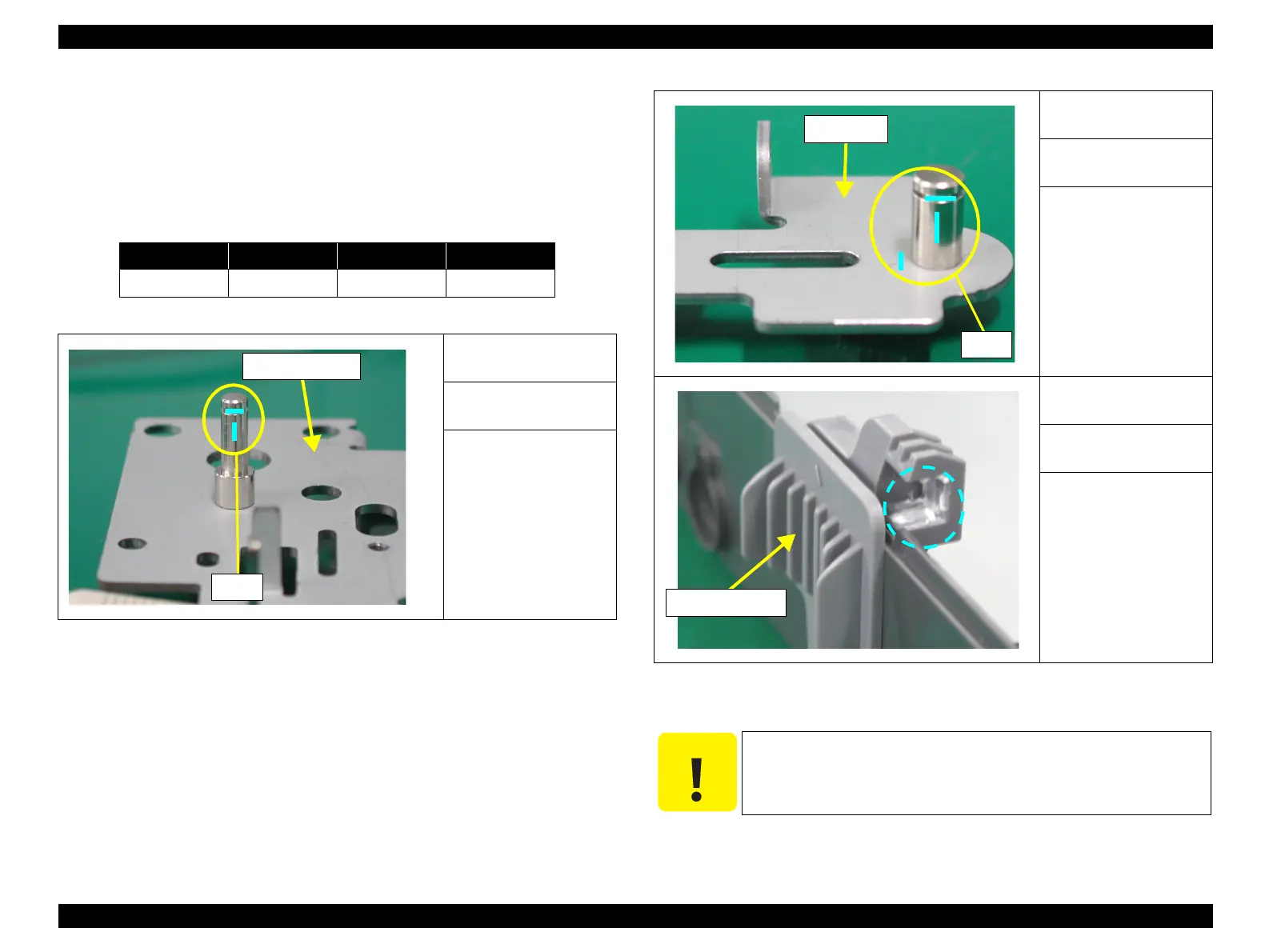

Figure 6-1. Lubrication Points
Type Name Part Number Supplier
Grease G-26 1080614 EPSON
<Lubrication point>
Shaft
<Oil type>
G-26
<Amount of application>
A little
Shaft
CR Motor Unit
<Lubrication point>
Shaft
<Oil type>
G-26
<Amount of application>
A little
<Lubrication point>
Inner side
<Oil type>
G-26
<Amount of application>
A little
C A U T I O N
Note that a failure to strictly observe the specified amount of
application will contaminate the mechanisms or lead to a malfunction.
Tensioner
Shaft
Carriage Lock
