Epson Perfection4180 Photo

EPSON Perfection4180 Photo Revision A
APPENDIX ADF; Disassembly 82
7.6.4 Disassembly of ASF Assembly
7.6.4.1 Removal of ASF Feed Roller Assembly
1. Remove the Right Hopper Release Lever from the right end of the ASF Feed Roller
Shaft.
2. Move the left side ASF Feed Assembly part to the center, and remove the Left ASF
Feed Roller Shaft Securing Bush (color: white).
3. Push out the ASF Feed Roller Shaft to the left, and remove the ASF HP Detection
Wheel from the Shaft end.

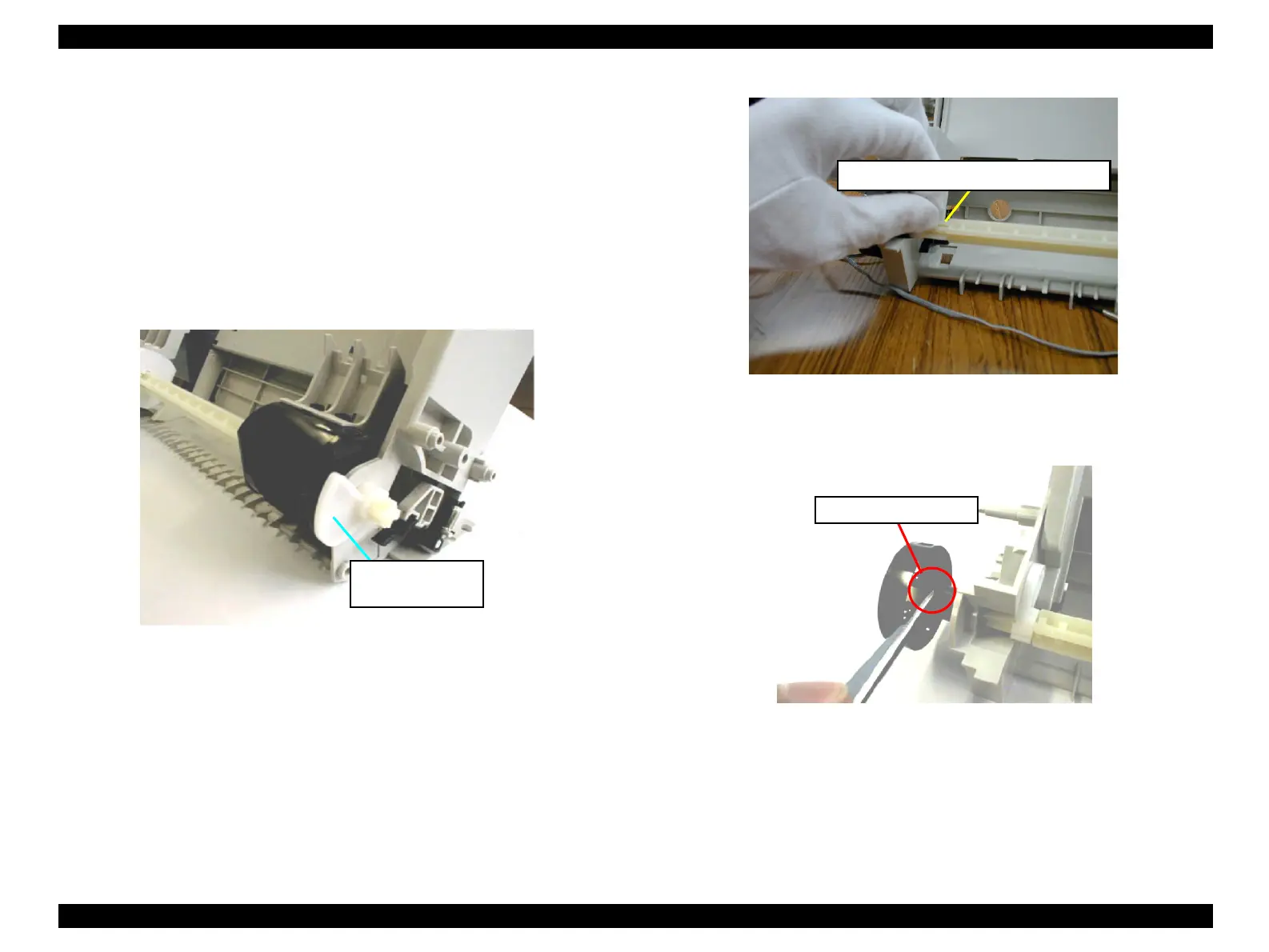

Figure 7-25. Removal of Right Hopper Release Lever
Figure 7-26. Removal of ASF Feed Roller Securing Bush
Figure 7-27. Removal of ASF HP Detection Wheel
Right Hopper
Release Lever
ASF Feed Roller Shaft Securing Bush
Wheel Securing Hook
