4.2.11 Removal of Hinges
1. Remove the TPU Unit. (Refer to 4.2.1)
2. Remove the two screws (CBP, M4x12) that are securing each of the Hinges, and
remove the Hinges.

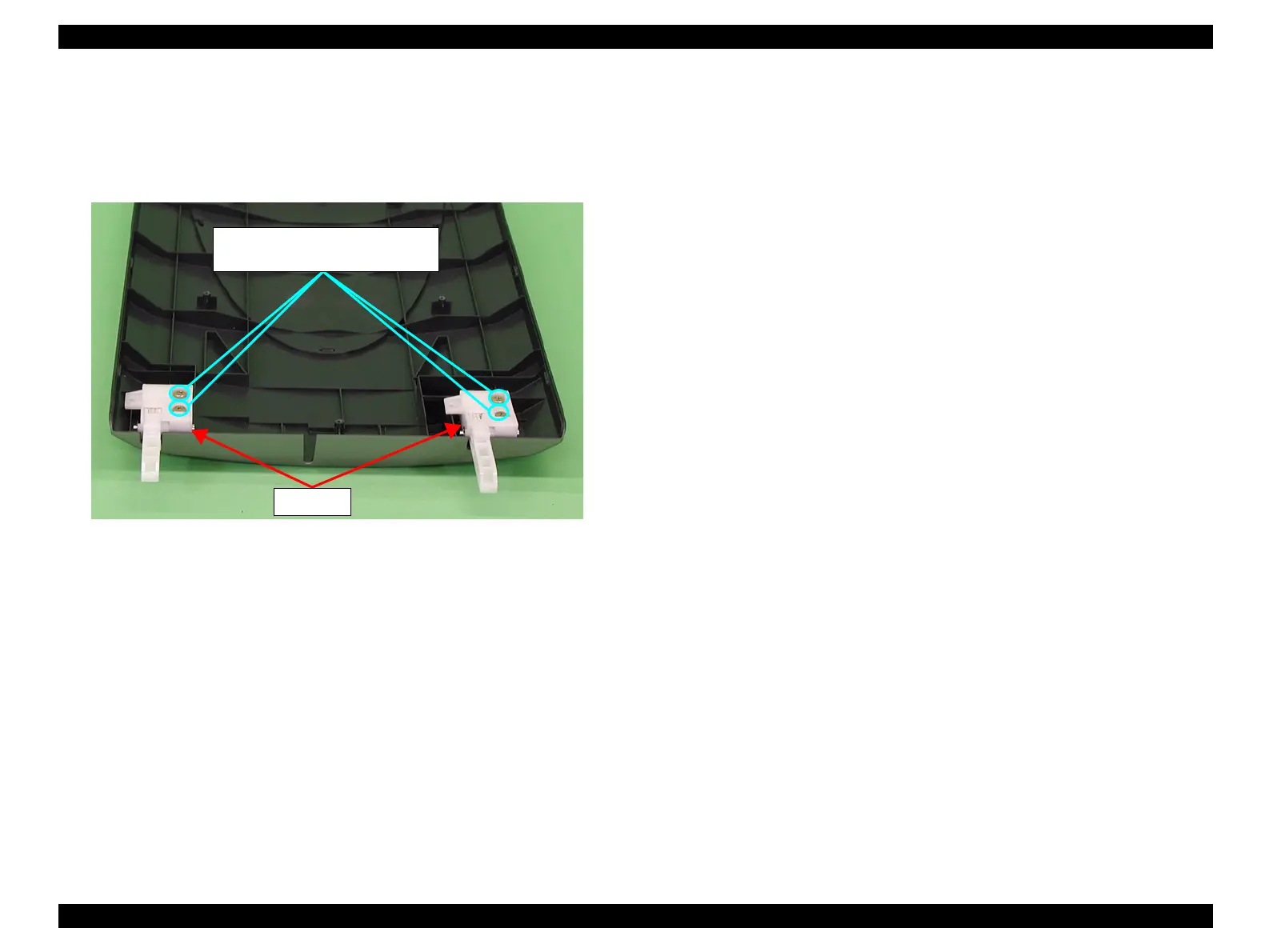

Figure 4-34. Removal of Hinges
M4x12
Tightening torque 10-12kgfcm
Hinges
