2. Locate the hard disk drive connector on the system board.

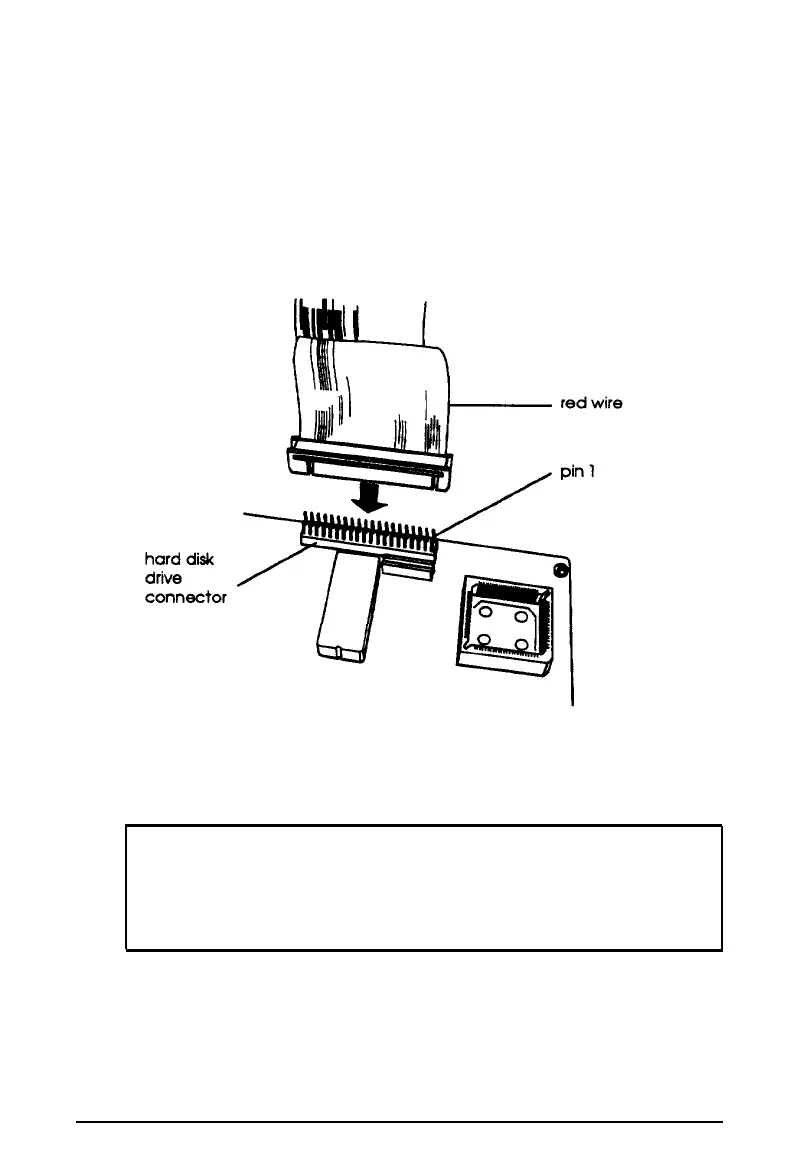

3. Position the system board connector end of the cable so that
the red wire aligns with pin 1 of the connector on the
system board. There is a “1” printed on the system board to
identify pin 1.
4. Make sure the holes in the connector fit over the pins; then
push in the cable connector.
Caution
If you do not correctly align the holes with the pins, you
could severely damage your system board when you push
in the cable connector.
4-10 Installing and Removing Drives
