79
2
Displays
the
vertical
position;
select
to
change
the
value
3
Moves
the
position
up,
down,
left,
or
right
4
Moves
the
lens
to
the
home
position
5
Displays
the
horizontal
position;
select
to
change
the
value

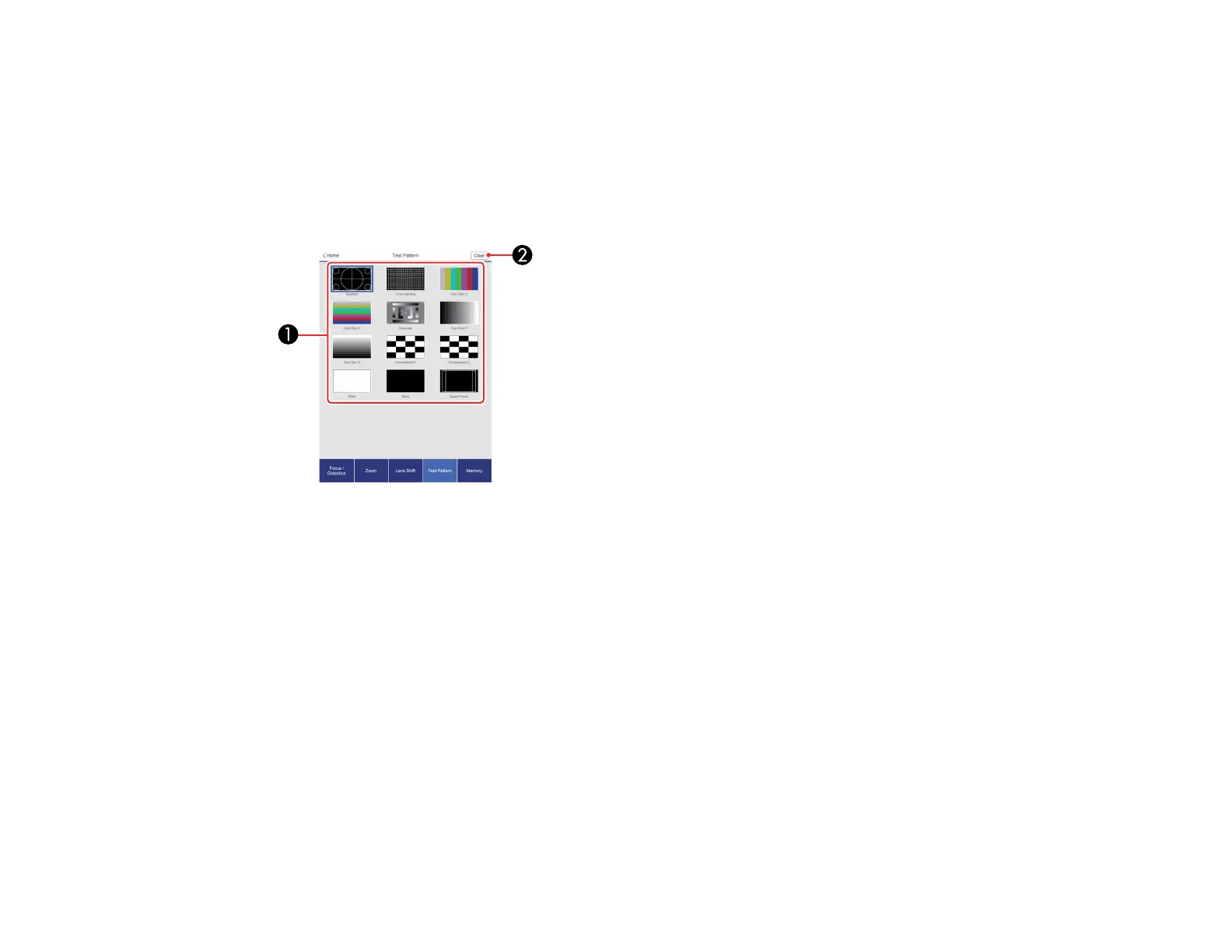

Test
Pattern
screen
1
Displays
available
test
patterns;
select
to
project
a
test
pattern
2
Turns
off
test
pattern
display
78
80
Table of Contents
Table of Contents
3
Pro G7000W/G7100/G7200W/G7400U/G7500U/G7805/G7905U User's Guide
11
Introduction to Your Projector
12
Projector Features
12
Product Box Contents
13
Additional Components
15
Additional Projector Software and Manuals
16
Optional Equipment and Replacement Parts
17
Warranty and Registration Information
19
Notations Used in the Documentation
19
Where to Go for Additional Information
20
Projector Part Locations
20
Projector Parts - Front/Top
21
Projector Parts - Rear
22
Projector Parts - Interface Ports
23
Projector Parts - Base
24
Projector Parts - Control Panel
25
Projector Parts - Remote Control
26
Setting up the Projector
29
Projector Placement
29
Projector Setup and Installation Options
29
Projection Distance
32
Projector Connections
39
Connecting to Computer Sources
40
Connecting to a Computer for VGA Video
40
Connecting to a Computer for HDMI Video and Audio
41
Connecting to a Computer for DVI-D Video
42
Connecting to a Computer for 5 BNC Video
42
Connecting to a Computer for Sound
43
Connecting to Video Sources
43
Connecting to an HDMI Video Source
43
Connecting to a Component-To-BNC Video Source
44
Connecting to a Component Video Source
45
Connecting to a Video Source for Sound
45
Connecting to an Hdbaset Transmitter
46
Connecting to an External Computer Monitor
47
Connecting to External Speakers
48
Attaching and Removing a Lens
48
Attaching a Lens
49
Removing a Lens
51
Attaching and Removing the Cable Cover
53
Installing Batteries in the Remote Control
54
Using the Projector on a Network
57
Wired Network Projection
57
Connecting to a Wired Network
57
Selecting Wired Network Settings
58
Wireless Network Projection
60
Installing the Wireless LAN Module
61
Using Quick Wireless Connection (Windows Only)
64
Selecting Wireless Network Settings Manually
66
Wireless LAN Menu Settings
69
Selecting Wireless Network Settings in os X
70
Selecting Wireless Network Settings in Windows
70
Setting up Projector Network E-Mail Alerts
71
Network Projector E-Mail Alert Messages
72
Selecting Other Network Settings
72
Controlling a Networked Projector Using a Web Browser
74
Web Control Options
75
Crestron Roomview Support
81
Setting up Crestron Roomview Support
81
Controlling a Networked Projector Using Crestron Roomview
82
Turning on the Projector
84
Using Basic Projector Features
84
Turning off the Projector
86
Selecting the Language for the Projector Menus
86
Resizing the Image with the Zoom Button
87
Focusing the Image Using the Focus Button
88
Focusing the Image with the Optional Short Throw Lens
89
Setting the Lens Type
91
Setting the Screen Type
92
Adjusting the Image Position Using Lens Shift
93
Adjusting the Image Position Using Screen Position
93
Displaying a Test Pattern
94
Available Test Pattern Image Adjustments
95
Adjusting the Image Height
95
Image Shape
96
Correcting Image Shape with H/V Keystone
97
Correcting Image Shape with Quick Corner
100
Correcting Image Shape with Curved Surface
102
Correcting Image Shape with Point Correction
106
Correcting Image Shape with Corner Wall
108
Selecting an Image Source
114
Remote Control Operation
115
Projection Modes
117
Changing the Projection Mode Using the Remote Control
117
Changing the Projection Mode Using the Menus
118
Image Aspect Ratio
118
Changing the Image Aspect Ratio
119
Available Image Aspect Ratios
119
Color Mode
120
Changing the Color Mode
121
Available Color Modes
121
Turning on Auto Iris
122
Controlling the Volume with the Volume Buttons
123
Setting the Date and Time
124
Shutting off the Picture and Sound Temporarily
126
Stopping Video Action Temporarily
127
Zooming into and out of Images
127
Projector Security Features
128
Password Security Types
129
Setting a Password
129
Selecting Password Security Types
130
Entering a Password to Use the Projector
131
Saving a User's Logo Image to Display
132
Locking the Projector's Buttons
134
Unlocking the Projector's Buttons
135
Installing a Security Cable
136
Projecting Two Images Simultaneously
137
Using Multiple Projectors
139
Projector Identification System for Multiple Projector Control
140
Setting the Projector ID
140
Setting the Remote Control ID
141
Adjusting the Position of the Projected Image from Multiple Projectors
142
Scaling an Image
143
Adjusting the Lamp's Brightness
144
Blending the Image Edges
145
Adjusting the Black Level
147
Matching the Image Colors
149
Adjusting the Color Tone (Color Uniformity)
151
Adjusting the Color Convergence (Panel Alignment)
152
Configuring Tiling
155
Enabling Protocol Emulation
156
Viewing 3D Images
157
Saving Settings to Memory and Using Saved Settings
157
Saving a Scheduled Event
158
Viewing Scheduled Events
159
Editing a Scheduled Event
160
Copying Menu Settings between Projectors
161
Saving Settings to a USB Flash Drive
162
Transferring Settings from a USB Flash Drive
163
Saving Settings to a Computer
164
Transferring Settings from a Computer
166
Adjusting Projector Features
126
Adjusting the Menu Settings
168
Using the Projector's Menus
168
Image Quality Settings - Image Menu
170
Input Signal Settings - Signal Menu
172
Projector Feature Settings - Settings Menu
176
Projector Setup Settings - Extended Menu
179
Projector Network Settings - Network Menu
186
Projector Information Display - Info Menu
187
Event ID Code List
189
Projector Reset Options - Reset Menu
190
Maintaining and Transporting the Projector
192
Projector Maintenance
192
Cleaning the Lens
192
Cleaning the Projector Case
193
Air Filter and Vent Maintenance
193
Cleaning the Air Filter
194
Replacing the Air Filter
197
Projector Lamp Maintenance
199
Replacing the Lamp
199
Resetting the Lamp Timer
203
Replacing the Remote Control Batteries
204
Transporting the Projector
206
Solving Problems
207
Projection Problem Tips
207
Projector Light Status
208
Viewing the Status Display
212
Projector Status Display Messages
214
Using the Projector Help Displays
218
Solving Image or Sound Problems
219
Solutions When no Image Appears
219
Solutions When "No Signal" Message Appears
220
Displaying from a PC Laptop
221
Displaying from a Mac Laptop
221
Solutions When "Not Supported" Message Appears
221
Solutions When Only a Partial Image Appears
222
Solutions When the Image Is Not Rectangular
222
Solutions When the Image Contains Noise or Static
223
Solutions When the Image Is Fuzzy or Blurry
224
Solutions When the Image Brightness or Colors Are Incorrect
225
Solutions When a 3D Image Does Not Display Correctly
225
Solutions to Sound Problems
226
Solving Projector or Remote Control Operation Problems
227
Solutions to Projector Power or Shut-Off Problems
227
Solutions to Problems with the Remote Control
228
Solutions to Password Problems
229
Solving Network Problems
229
Solutions When You Cannot Access the Projector through the Web
229
Solutions When Network Alert E-Mails Are Not Received
230
Solutions When You Cannot Access the Projector Using Iprojection
230
Where to Get Help
231
Technical Specifications
233
General Projector Specifications
233
Projector Lamp Specifications
235
Remote Control Specifications
236
Projector Dimension Specifications
236
Projector Electrical Specifications
237
Projector Environmental Specifications
238
Projector Safety and Approvals Specifications
239
Supported Video Display Formats
239
Notices
243
Recycling
243
Important Safety Information
243
Important Safety Instructions
243
Restriction of Use
246
List of Safety Symbols (Corresponding to IEC60950-1 A2)
246
FCC Compliance Statement
250
Open Source Software License
251
Trademarks
297
Copyright Notice
298
A Note Concerning Responsible Use of Copyrighted Materials
298
Copyright Attribution
299
