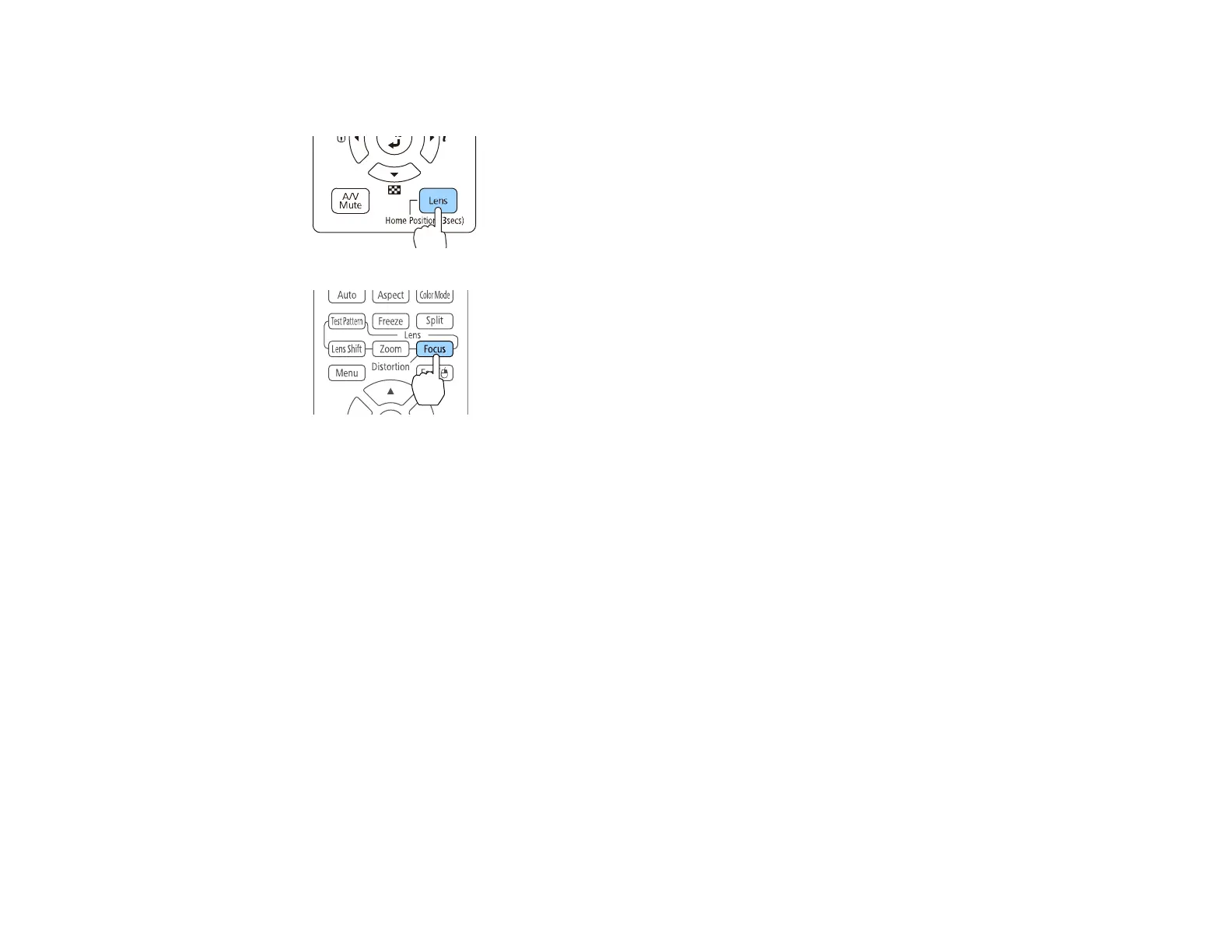

2. Press the Lens button on the control panel repeatedly until the focus adjustment screen appears, or
press the Focus button on the remote control.
3. Press and hold the arrow buttons on the projector's control panel or remote control to adjust the
focus.
4. Press the Esc button on the projector's control panel or remote control when finished.
Focusing the Image with the Optional Short Throw Lens
Parent topic: Using Basic Projector Features
Focusing the Image with the Optional Short Throw Lens
If you installed the optional short throw lens (ELPLU02/ELPLU03/ELPLU04) and used the lens shift
option to shift the lens, you can focus the image using the distortion and focus rings.
1. Turn on the projector and display an image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.
Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern
button on the remote control.
