91

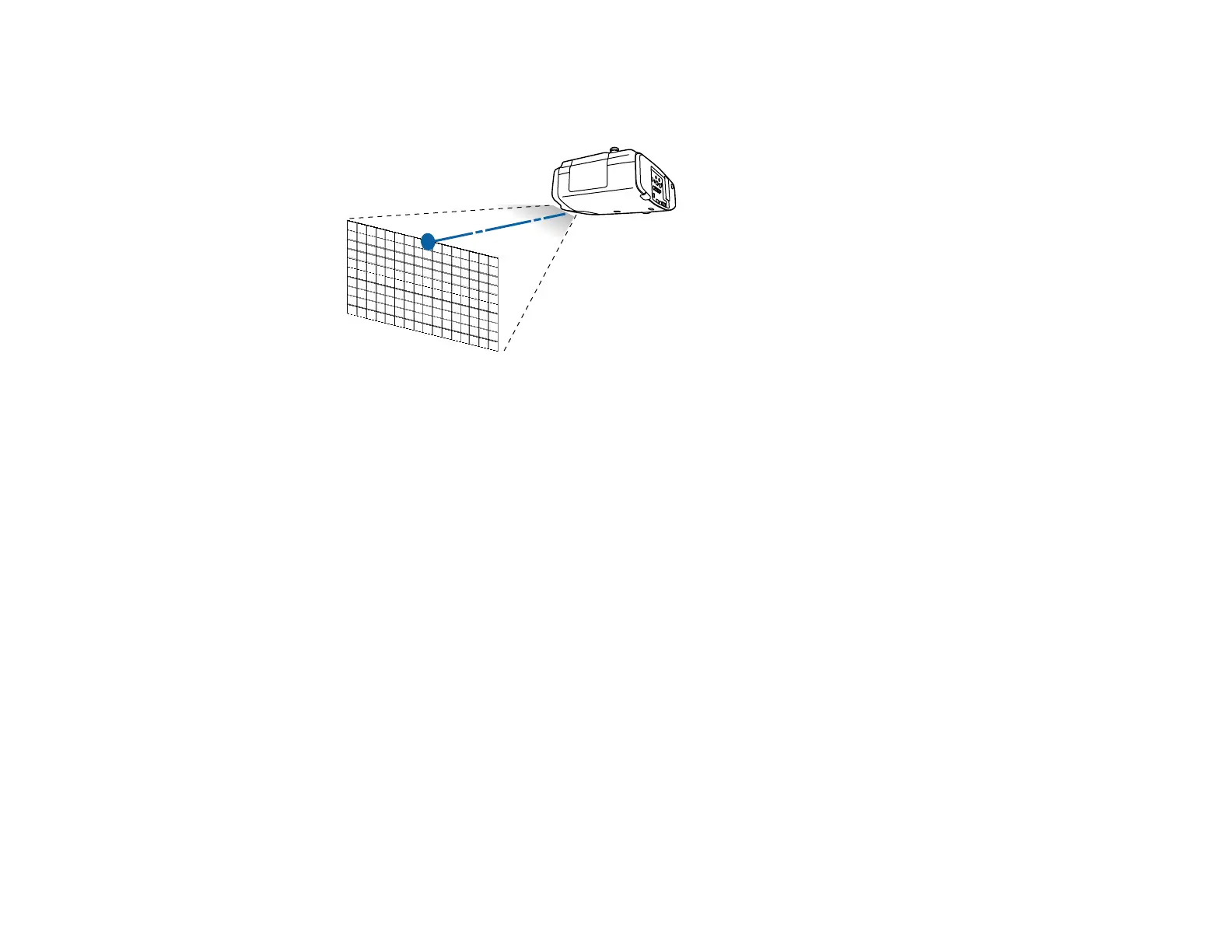

4. Rotate the distortion ring until the edges of the image are also focused.
5. Rotate the focus ring again to focus the entire screen image.
6. If the center of the image out of focus, rotate the distortion ring again to bring the area into focus.
Parent topic: Focusing the Image Using the Focus Button
Related tasks
Adjusting the Image Position Using Lens Shift
Adjusting the Image Position Using Screen Position
Setting the Lens Type
After installing one of the following lenses, you need to select the model number for the lens: ELPLS04,
ELPLU02, ELPLR04, ELPLW04, ELPLM06, ELPLM07, or ELPLL07.
1. Turn on the projector and display an image.
2. Press the Menu button.
3. Select the Extended menu and press Enter.
4. Select Operation > Advanced > Lens Type.
