E

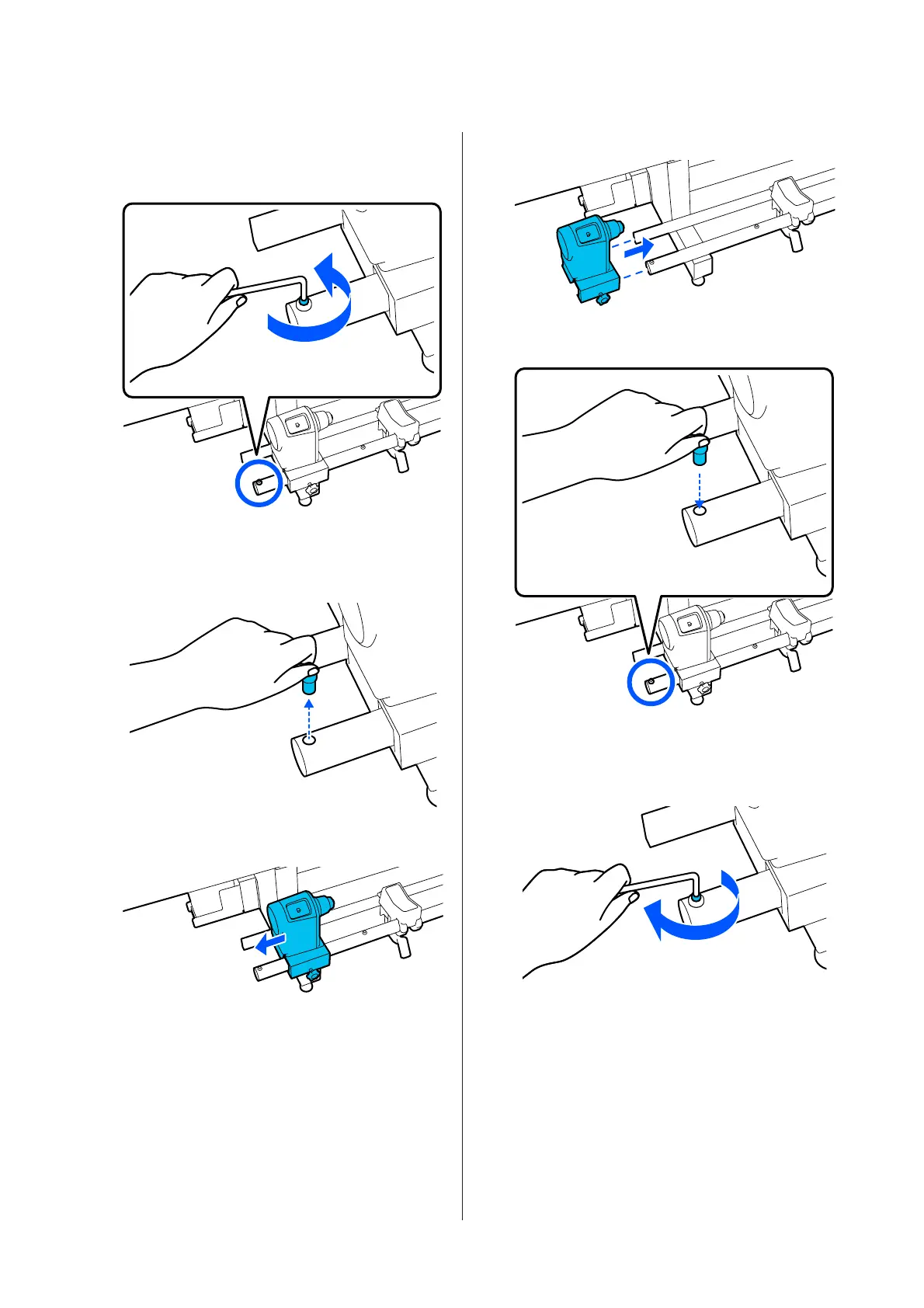

Use the hex wrench to loosen the head of the
screw so it rises up about 5 mm as shown in the
illustration.
F
Pull the screw out upward together with the
rubber part around it.
G
Pull the media holder toward the outer side.
H
Insert the new media holder from the outer side.
I
Insert the parts you pulled out in Step 6.
J
Use the hex wrench to tighten the screw until its
head is flush.
