EPSON Stylus C50/C60/C61/C62 Revision C
Disassembly and Assembly Disassembly 124
CHECK
PO INT

When removing the PF roller, be careful not to damage the Spur
gear 60 with the Main frame.

When assembling the PF roller unit to the Main frame,

Be careful not to damage the Spur gear 60 with the Main
frame.

Make sure to set the PF roller bushing to the cutout portion
of the Main frame.

When assembling the Paper guide upper/left to the Main frame,

Avoid to damage the coated surface of the PF roller by using
the OHP sheet. (Refer to Figure 4-69)

Make sure that the Paper guide is correctly fixed to the Main
frame.

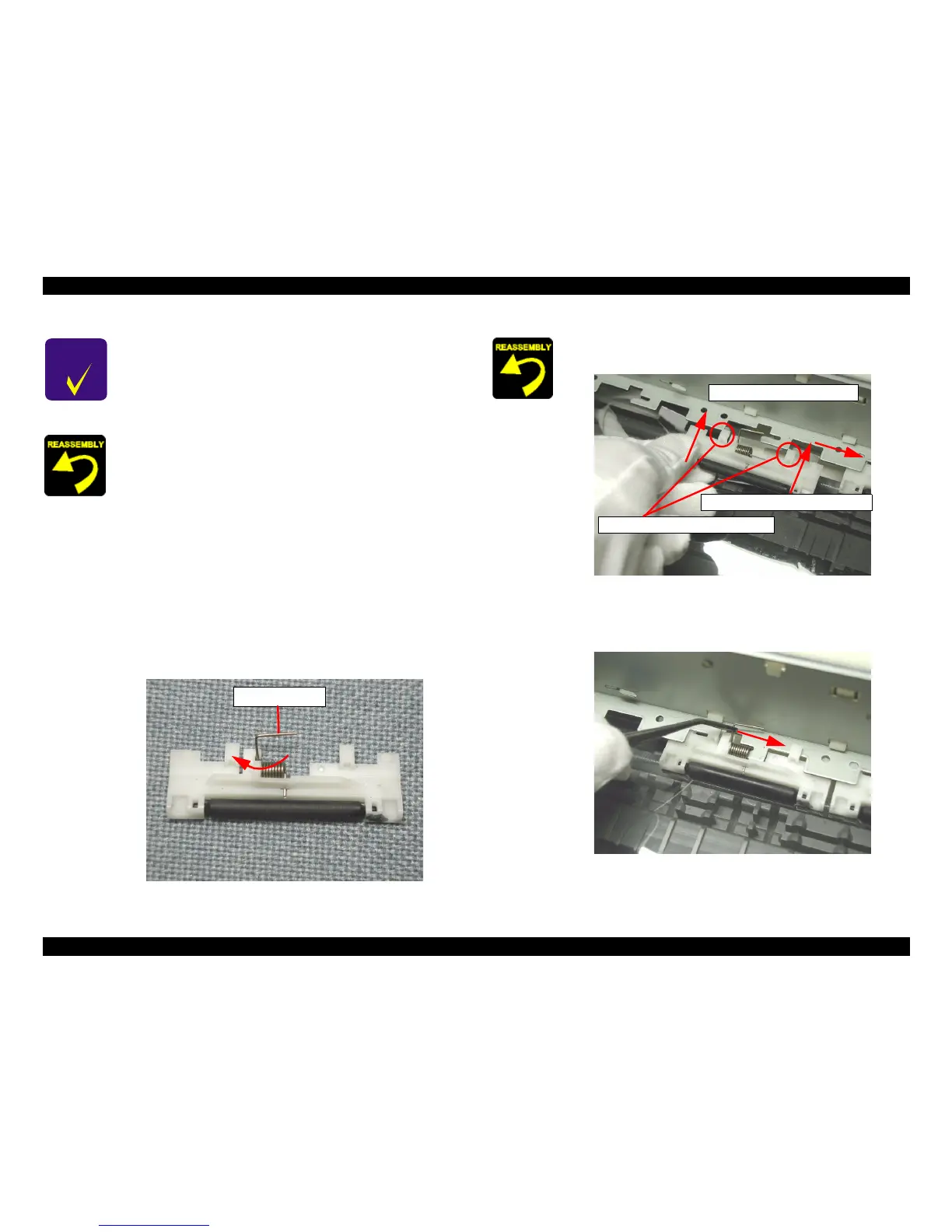

[Reference: Procedure for assembling the Paper guide]
1. Set the Torsion spring 48.51 into the groove of the Paper guide
upper/left as shown figure below.
Figure 4-72. Paper guide assembling (1)
Torsion spring 48.51
2. Install the Paper guide upper/left to the Main frame as shown
figure below, and slide it to the right side
.
Figure 4-73. Paper guide assembling (2)
3. Release the Torsion spring 48.51 by using the tweezers as shown
figure below.
Figure 4-74. Paper guide assembling (3)
Step1) Install the Paper guide upper/left
Step2) Slide it to the right side
Set these protrusions on the Main frame

Epson Stylus C62 Specifications

Printing

printing method	4-color (CMYK) drop-on-demand Micro Piezo ink jet technology
resolution (dots per inch)	Up to 5760 x 720 optimized dpi
print speed (black text memo)	14 ppm

Paper Handling

maximum paper size	up to 8.5" x 44"
input paper tray capacity	100 sheets/10 envelopes
envelope types	No. 10, DL, C6

Dimensions and Weight

dimensions (L x W x H)	18.8" x 10.2" x 7.1"
weight	7.5 lb
maximum printable area	8.26" x 10.76"
