EPSON Stylus C50/C60/C61/C62 Revision C
Disassembly and Assembly Disassembly 95
4.3.2 Printhead removal
1. Remove the Upper housing from the printer. (Refer to Section 4.3.1)
2. Open the Cover cartridge, and remove the both black and color ink cartridges.
3. Remove the both Cover cartridges from the CR unit.
4. Release two hooks for securing the Head FFC holder, and remove the Head FFC
holder from the CR unit.

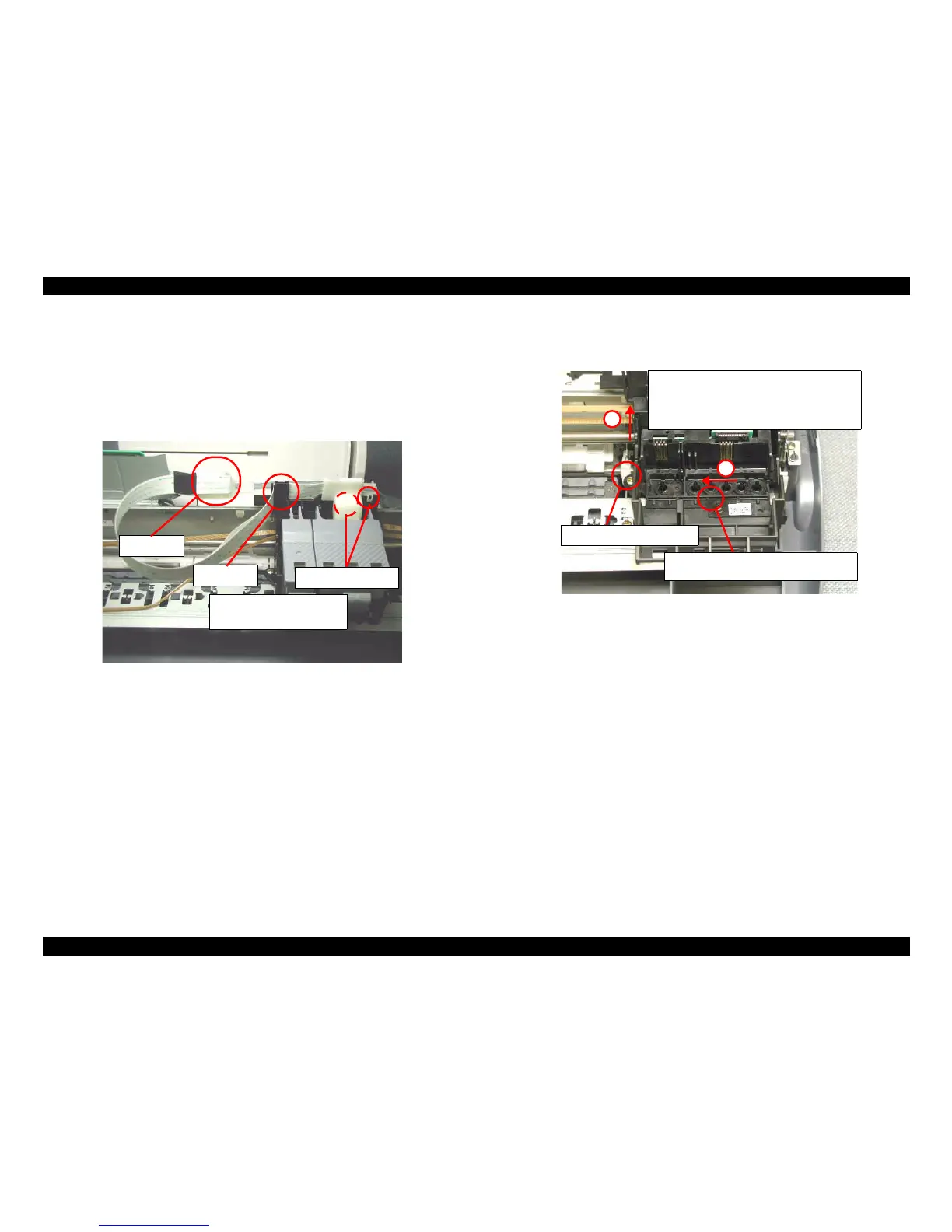

Figure 4-7. Head FFC holder removal
5. Remove two screws (C.B.P-TITE SCREW 3x8 F/Zn, +BIND B-TITE SEMS W2
2.5x5 F/Zb) for tightening the Printhead, and remove the Printhead from the CR
unit in the order indicated in the following figure.
Figure 4-8. Printhead removal
6. Disconnect the Head FFC from the connector on the Printhead.
Hooks for Head FFC
Spacer FFC
Cable holder
The length of the Head FFC is
difference among each model.
SC61/C62 > SC60 > SC50
C.B.P-TITE SCREW, 3x8, F/Zn
+BIND B-TITE SEMS, W2 2.5x5, F/Zb
(This screw is used only for the Stylus C60)
1
2
This figure is the Stylus Photo 810/820. There is a
difference of the Printhead between the Stylus
C60 and the Stylus Photo 810/820.
- Stylus C50/C60/C61/C62 : Printhead for 4col.
- Stylus Photo 810/820 : Printhead for 6col.

Epson Stylus C62 Specifications

Printing

printing method	4-color (CMYK) drop-on-demand Micro Piezo ink jet technology
resolution (dots per inch)	Up to 5760 x 720 optimized dpi
print speed (black text memo)	14 ppm

Paper Handling

maximum paper size	up to 8.5" x 44"
input paper tray capacity	100 sheets/10 envelopes
envelope types	No. 10, DL, C6

Dimensions and Weight

dimensions (L x W x H)	18.8" x 10.2" x 7.1"
weight	7.5 lb
maximum printable area	8.26" x 10.76"
