EPSON Stylus C50/C60/C61/C62 Revision C
Disassembly and Assembly Difference on Printer Machanism between SC60 and SC61/C62 90
4.2 Difference on Printer Machanism between
SC60 and SC61/C62
The Stylus C61/C62 is successor to the Stylus C60, and is the same as its printer
mechanism basically. However, some modificaitons has been taken on Stylus C61/C62
since the first mass production. Followings show you the difference on the printer
mechanism between Stylus C60 and Stylus C61/C62.
1) SW botton
The shape/material of the SW button is changed as below.
- Stylus C60 : It is assembled to the M/B mounting plate by the two hooks of the
SW button
- Stylus C61/C62 : It is assembled to the Upper housing by the two hooks of the
SW button

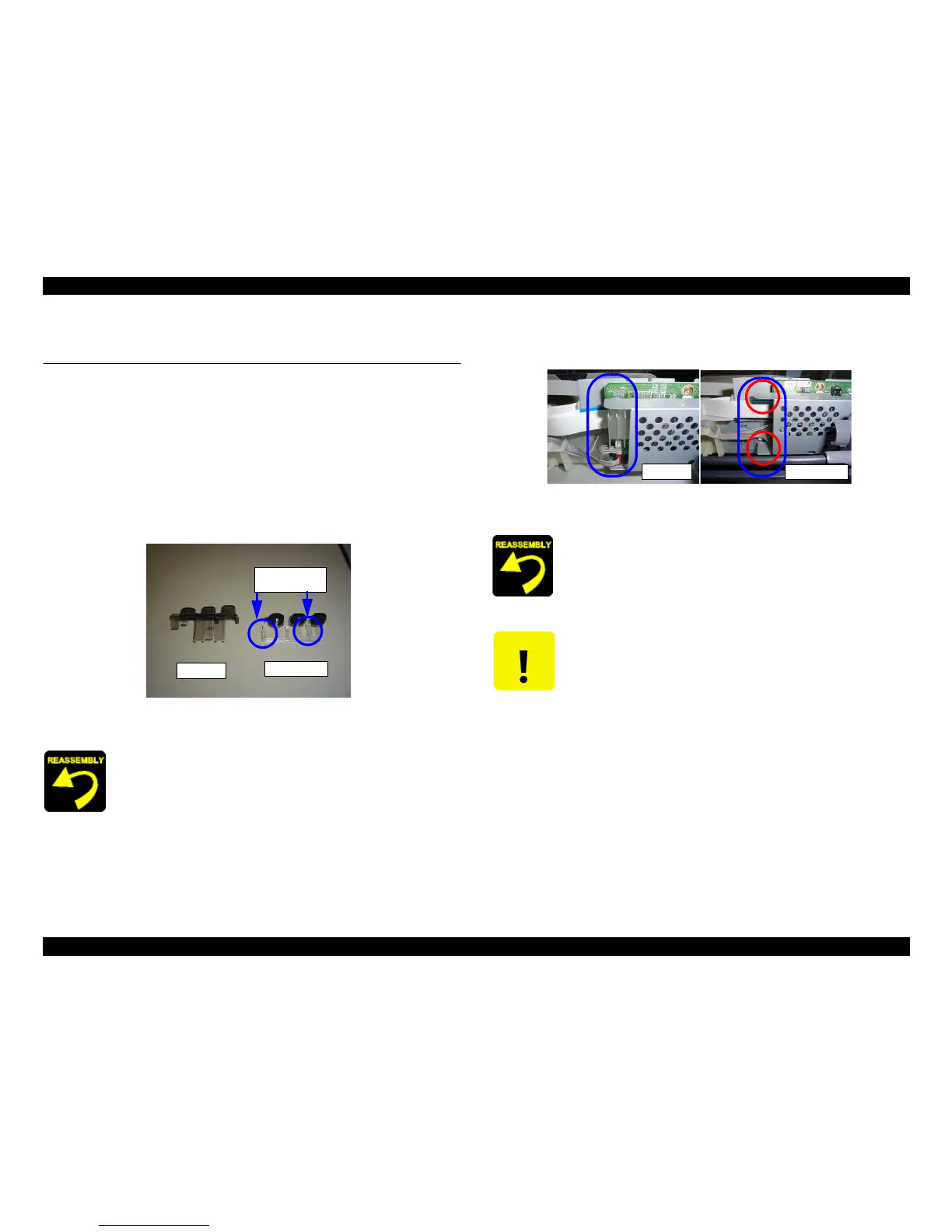

Figure 4-1. Difference of SW button
2) Main board
The size/connector position of the main board is changed as below.
Figure 4-2. Difference of main board
3) CR motor/PF motor*/Head FFC
Due to the above 2), the length of each harness/connector is longer than current one.
* The specification of the PF motor is newly changed for the Stylus C61/C62.
4) P/S baord
a. The type of the AC cable is changed to AC inlet on the Stylus C61/C62.
b. The Stylus C60 has the Power supply radiator on the P/S board. However, the
Stylus C61/C62 does not have it. (Screw position on the P/S board is the same as
the Stylus C60.)

When assembling the SW button to the Upper housing,

Make sure that the fixture position of the SW button is set to
the Upper housing securely.
Stylus C61/C62
Stylus C60
Fixture position
on upper housing

When assembling the CR motor/PF motor /Head FFC to the
main board,

Make sure that the the harness/connector of the above parts
is installed to the connector on the main board securely.
CAUTION

When disconnect/connect the harness/connector of the CR
motor/PF motor/Head FFC, be careful not to hurt your hand
with the protrusion of the main board shiel plate. (Red circle
portion in Fig. 4-2.)
Stylus C61/C62
Stylus C60

Epson Stylus C62 Specifications

Printing

printing method	4-color (CMYK) drop-on-demand Micro Piezo ink jet technology
resolution (dots per inch)	Up to 5760 x 720 optimized dpi
print speed (black text memo)	14 ppm

Paper Handling

maximum paper size	up to 8.5" x 44"
input paper tray capacity	100 sheets/10 envelopes
envelope types	No. 10, DL, C6

Dimensions and Weight

dimensions (L x W x H)	18.8" x 10.2" x 7.1"
weight	7.5 lb
maximum printable area	8.26" x 10.76"
