EPSON Stylus C50/C60/C61/C62 Revision C
Disassembly and Assembly Disassembly 123

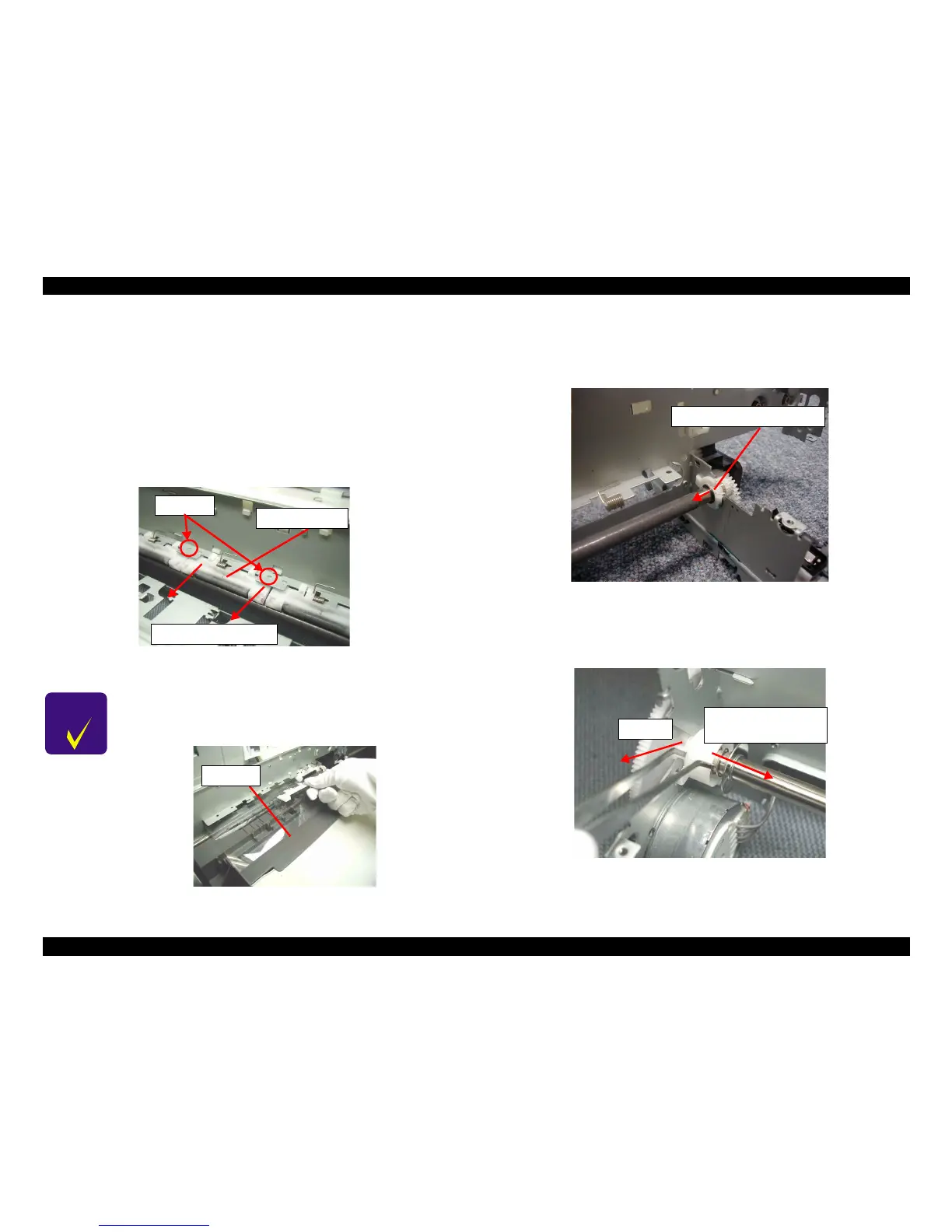

4.3.13 PF roller unit removal
1. Remove the Upper housing from the printer. (Refer to Section 4.3.1)
2. Remove the CR unit from the printer (Refer to Section 4.3.3)
3. Remove the ASF unit from the printer. (Refer to Section 4.3.5)
4. Remove the PSB/PSE unit from the printer. (Refer to Section 4.3.6)
5. Push the dowels of the Paper guide by using the tweezers, and pull the Paper guide
toward the front side of the printer.
Figure 4-68. Paper guide removal procedure (1)
6. Remove the Lower housing from the printer mechanism. (Refer to Section 4.3.10)
7. Remove the Plain washer, 6.9 x 0.5 x 10.4, L/Na by using the tweezers, and slide
the right PF roller bushing to the left side slightly.
Figure 4-70. PF roller removal (1)
8. Remove the PF roller from the Main frame while sliding the left PF roller bushing
to the right side by using the tweezers.
Figure 4-71. PF roller removal (2)
CHECK
PO INT

When removing the Paper guide upper/left, avoid to damage the
coated surface of the PF roller by using the OHP sheet as shown
figure below.
Figure 4-69. Paper guide removal procedure (2)
Paper guide upper
Step1) Push
Step2) Slide to the front side
OHP sheet
Plain washer, 6.9 x 0.5 x 10.4, L/Na
Step1) Slide the bush to
the right side
Step2) Pull

Epson Stylus C62 Specifications

Printing

printing method	4-color (CMYK) drop-on-demand Micro Piezo ink jet technology
resolution (dots per inch)	Up to 5760 x 720 optimized dpi
print speed (black text memo)	14 ppm

Paper Handling

maximum paper size	up to 8.5" x 44"
input paper tray capacity	100 sheets/10 envelopes
envelope types	No. 10, DL, C6

Dimensions and Weight

dimensions (L x W x H)	18.8" x 10.2" x 7.1"
weight	7.5 lb
maximum printable area	8.26" x 10.76"
