EPSON Stylus C67/C68/D68 Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedures 48
8) Remove the four screws that secure the Housing, Lower Assy
to the main unit.
• C.B.P. 3 x 8: 3
• C.B.P.(P2) 3 x 8: 1

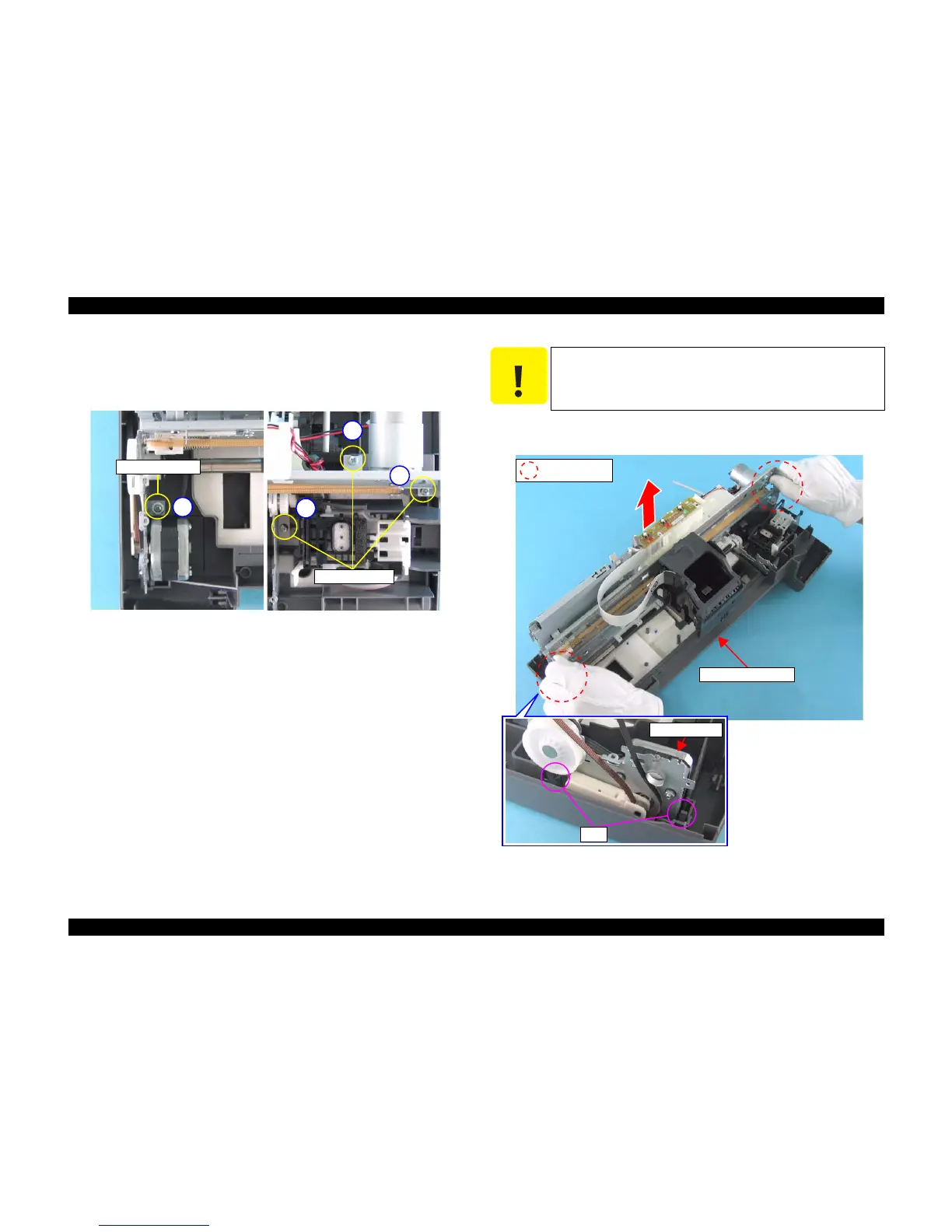

Figure 4-14. Removing Housing Lower Assy. (1)
9) Release the two tabs on the PF Motor side of the Housing, Lower assy, and
remove the Housing, Lower Assy.
Figure 4-15. Removing Housing Lower Assy. (2)
C.B.P. (P2) 3 x 8
4
C.B.P. 3 x 8
1
2
3
C A U T I O N
When performing the following work, be sure to hold the places
indicated with dotted circles to avoid deformation of the Main Unit
Frame.
PF Motor Assy.
Tab
Holding Position
Housing, Lower Assy.
