EPSON Stylus C67/C68/D68 Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedures 63
4.3.3.8 CR Encoder Scale
1) Remove the Housing, Upper. (p43)
2) Move the CR Unit toward the center of the printer. (See 4.3.3.2 Removing
Holder Shaft Unit Step 3)
3) Release the slit on the right side of the CR Encoder Scale from the tab of the
Main Unit.

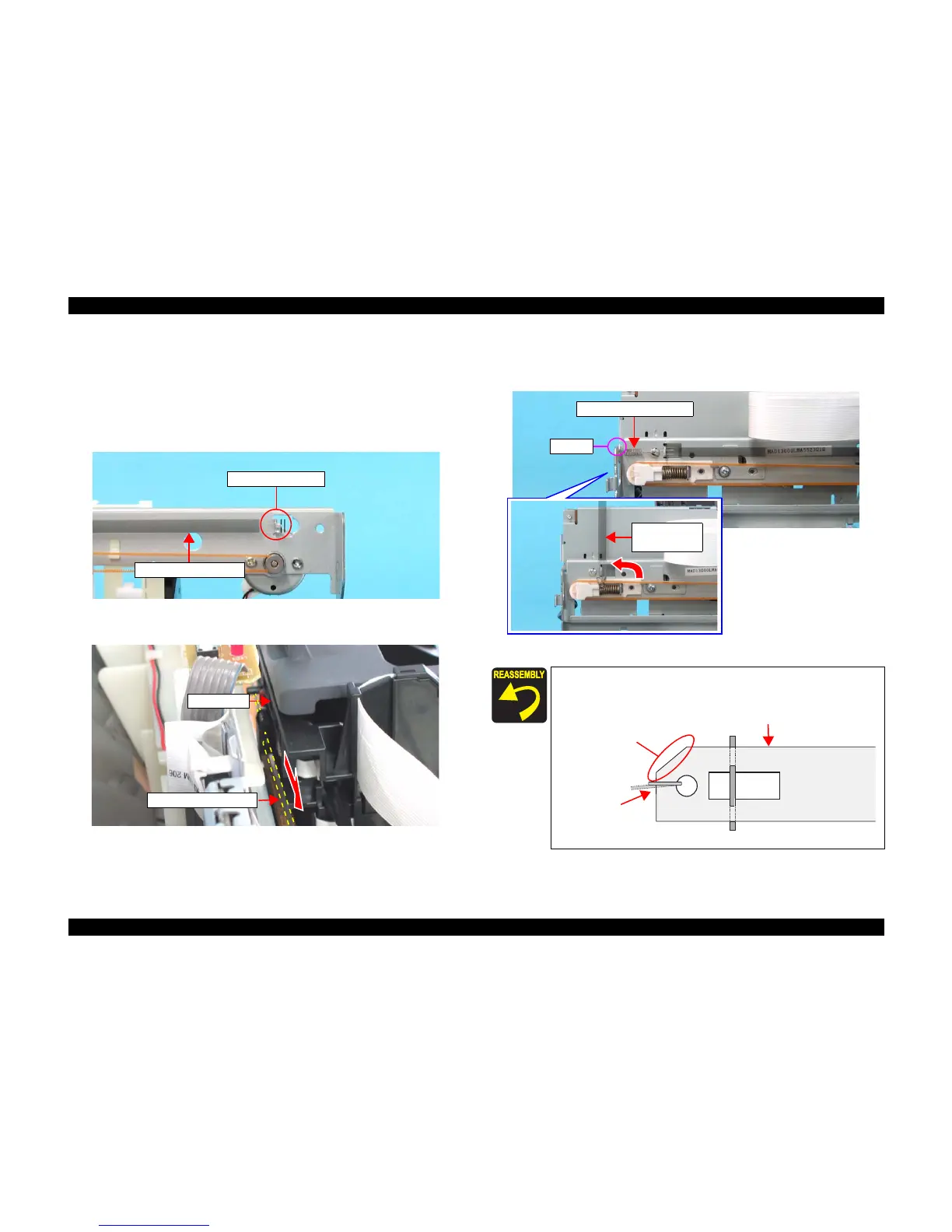

Figure 4-46. Removing CR Encoder Scale (1)
4) Remove the CR Encoder Scale from the CR Unit.
Figure 4-47. Removing CR Encoder Scale (2)
5) Release Extension Spring 1.494 on the left side of the CR Encoder Scale from
the tab of the Main Unit, turn the CR Encoder Sensor 90 degrees as shown in
the figure, and remove the CR Encoder sensor.
Figure 4-48. Removing CR Encoder Scale (3)
Slit and Tab
CR Encoder Scale
CR Encoder Scale
CR Unit
When installing the CR Encoder Scale, place the scale so that the
chipped part is facing upper left as shown in the figure below.
Figure 4-49. Installing CR Encoder Scale
Extension Spring 1.494
Tab
CR Encoder
Scale
Chipped Part
Extension Spring
1.494
CR Encoder Scale
