DISASSEMBLY/ASSEMBLY Disassembly Procedures 69
4.3.3.13 CSIC Board
1) Remove the CR Unit. (p64)
2) Remove the two screws that secure the IC Holder Cover to the IC Holder,
release the tab, and remove the IC Holder Cover.
• C.B.P. 2.5 x 8: 2

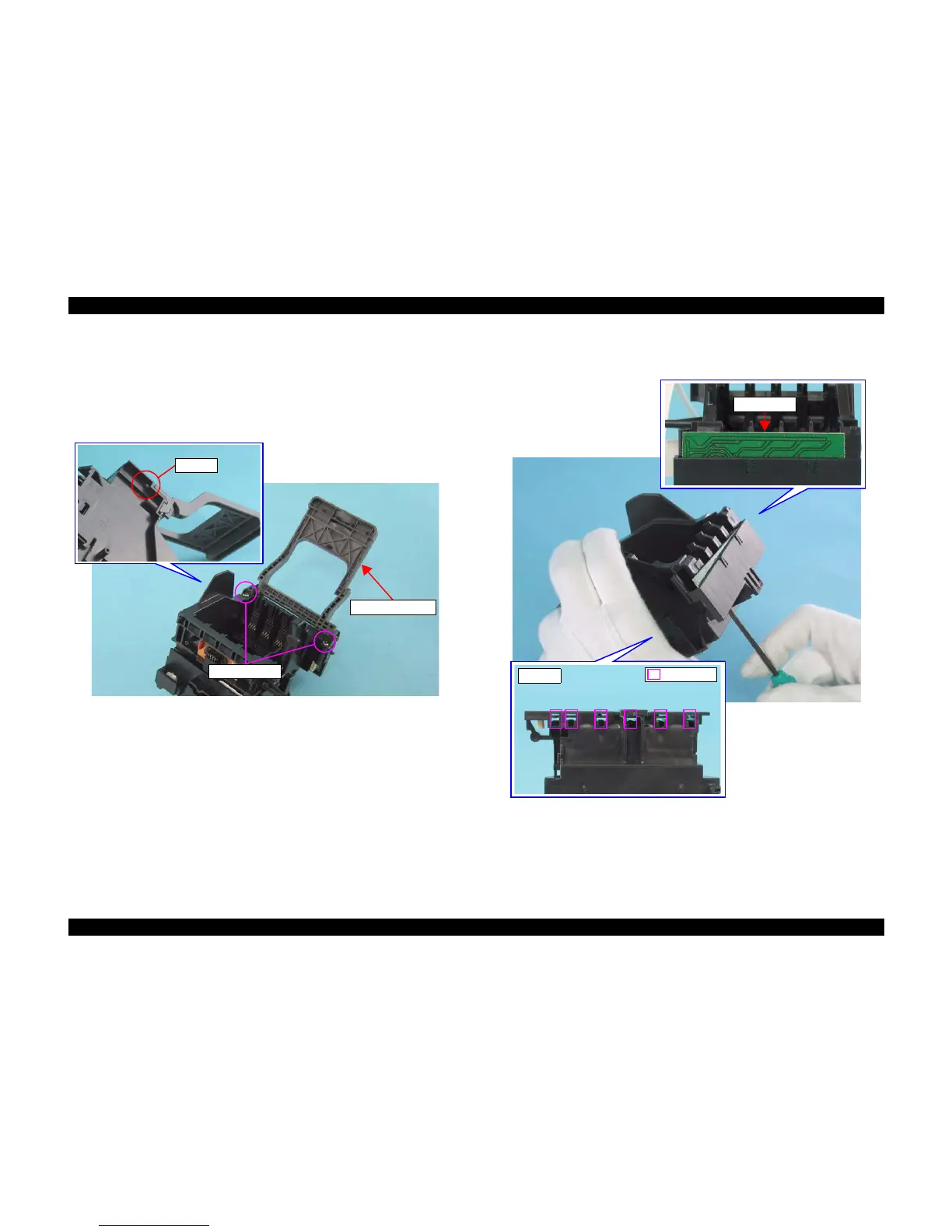

Figure 4-61. Removing IC Holder Cover
3) Insert a flathead screwdriver or a similar tool into the six A sections located
on bottom of the IC Holder, and remove the CSIC Board.
Figure 4-62. Removing CSIC Board
Tab
IC Holder Cover
C.B.P. 2.5 x 8
CSIC Board
Bottom
A Sections
