Epson Stylus C67 Service Manual

EPSON Stylus C67/C68/D68 Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedures 71

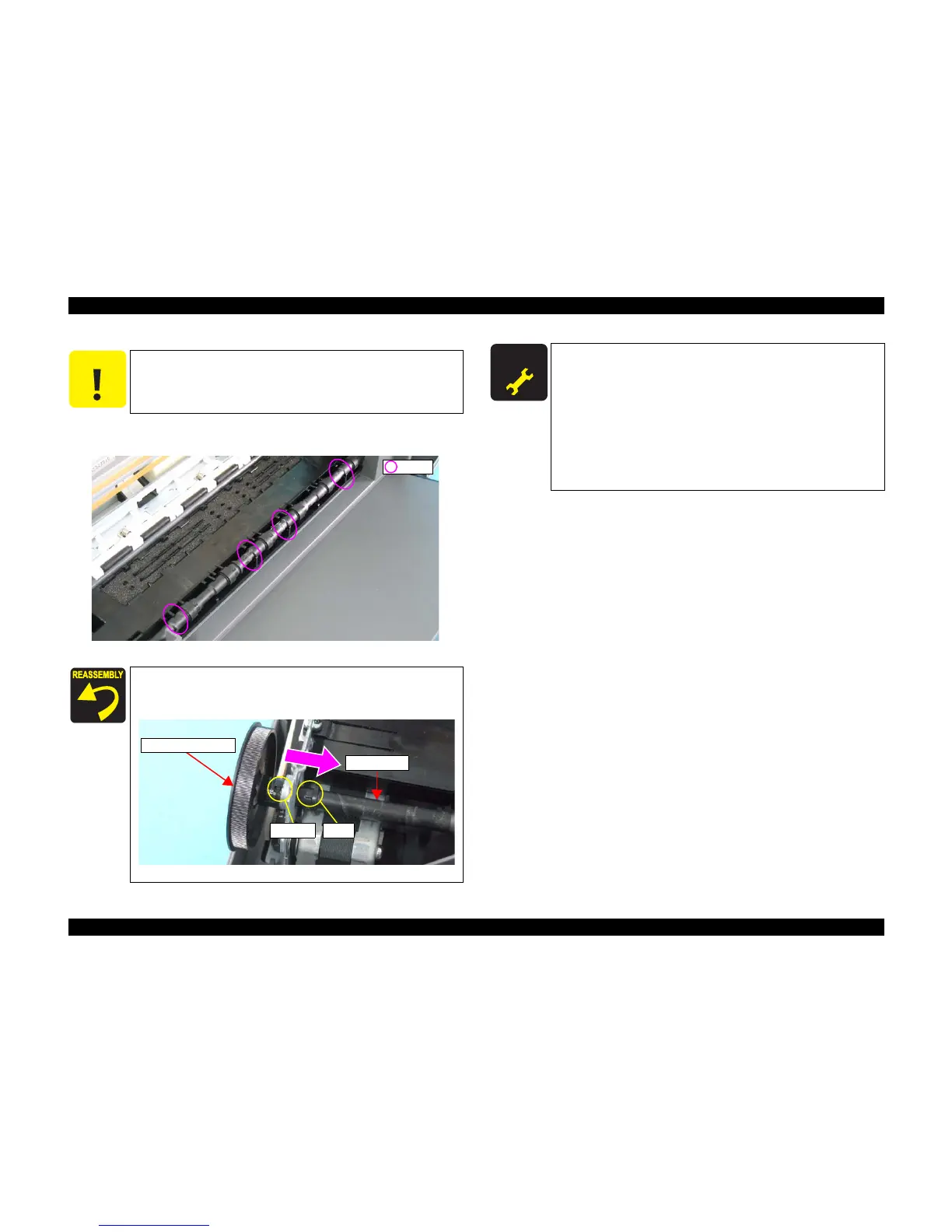

6) Release the Eject Roller from the four tabs of the Paper Guide, Upper Assy.,
and remove the Eject Roller.
Figure 4-65. Removing Eject Roller
C A U T I O N
Be careful not to damage the rubber area when performing the
following work.
When installing the Eject Roller, make sure to match the notch of
the Eject Drive Pulley with the tab of the Eject roller as shown
below.
Figure 4-66. Installing Eject Drive Pulley
Tabs
Eject Roller
Eject Drive Pulley
Tab
Notch
A D J U S T M E N T
R E Q U I R E D
 When you replace Paper eject roller with new one, lubricate it
aws specified. See "6.1.3 Lubrication" (p92) for details.
 When Paper eject roller is removed or replaced with new one,
the following adjustment must be performed in the order
below.
1. “Top Margin Adjustment”
2. “PF Adjustment”
3. “Bi-D Adjustment”
4. “Head Angular Adjustment”
5. “First Dot Adjustment”
