EPSON Stylus C67/C68/D68 Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedures 73
4.3.3.17 Pump Unit/Cap Unit
1) Remove the Housing, Lower Assy.. (p47)
2) Remove the Holder Shaft Unit. (p56)
3) Release the three tabs that secure the Pump Unit to the Main Unit, and remove
both the Pump Unit and the Cap Unit.

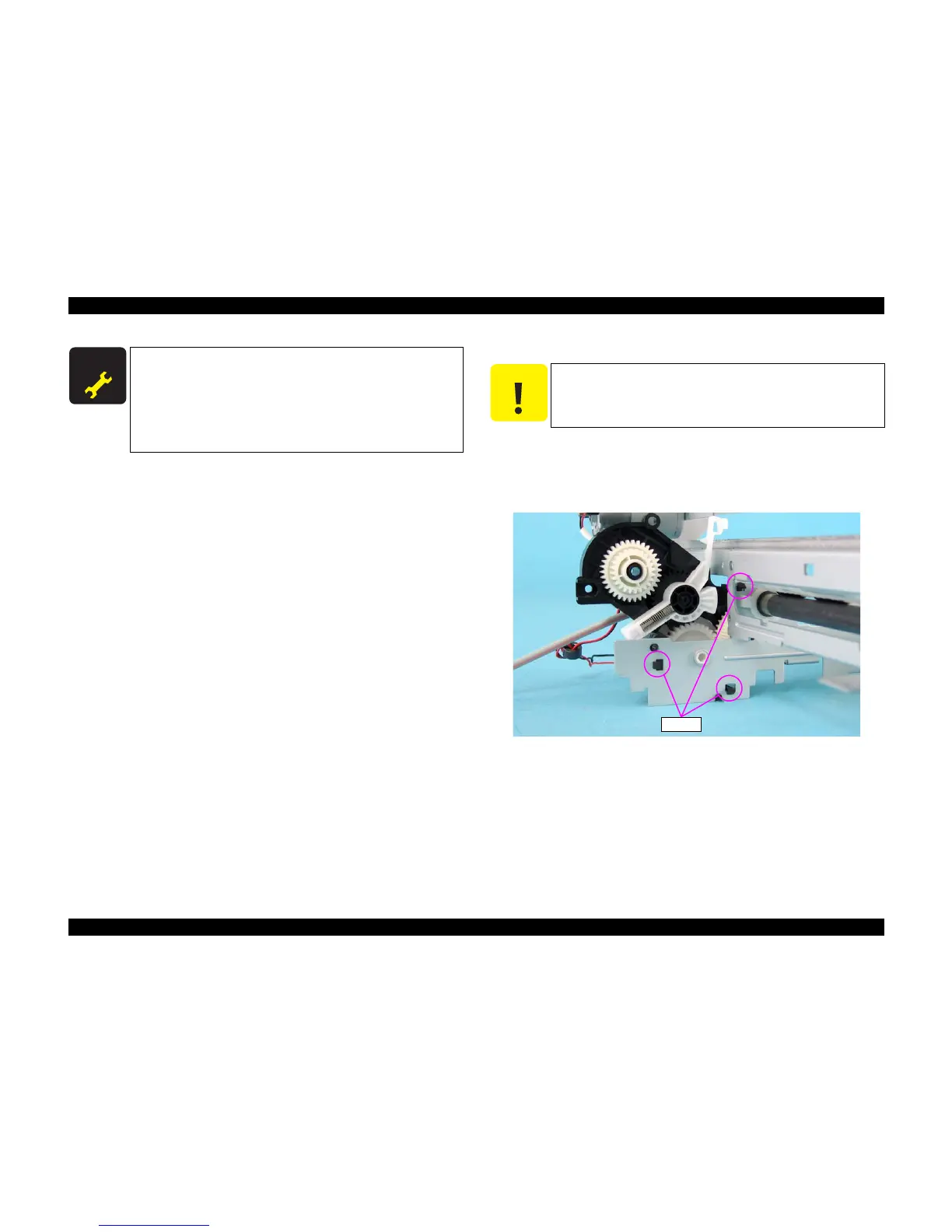

Figure 4-70. Removing Pump Unit/Cap Unit (1)
A D J U S T M E N T
R E Q U I R E D
When Paper guide front is removed or replaced with new one, the
following adjustment must be performed in the order below.
1. “Top Margin Adjustment”
2. “PF Adjustment”
3. “Bi-D Adjustment”
4. “Head Angular Adjustment”
5. “First Dot Adjustment”
C A U T I O N
When removing the Pump Unit and the Cap Unit, pay attention not
to drop the CR Lock Lever and the Gear.
Tabs
