EPSON Stylus COLOR 440, 640, and 740 Chapter 6 Maintenance
143

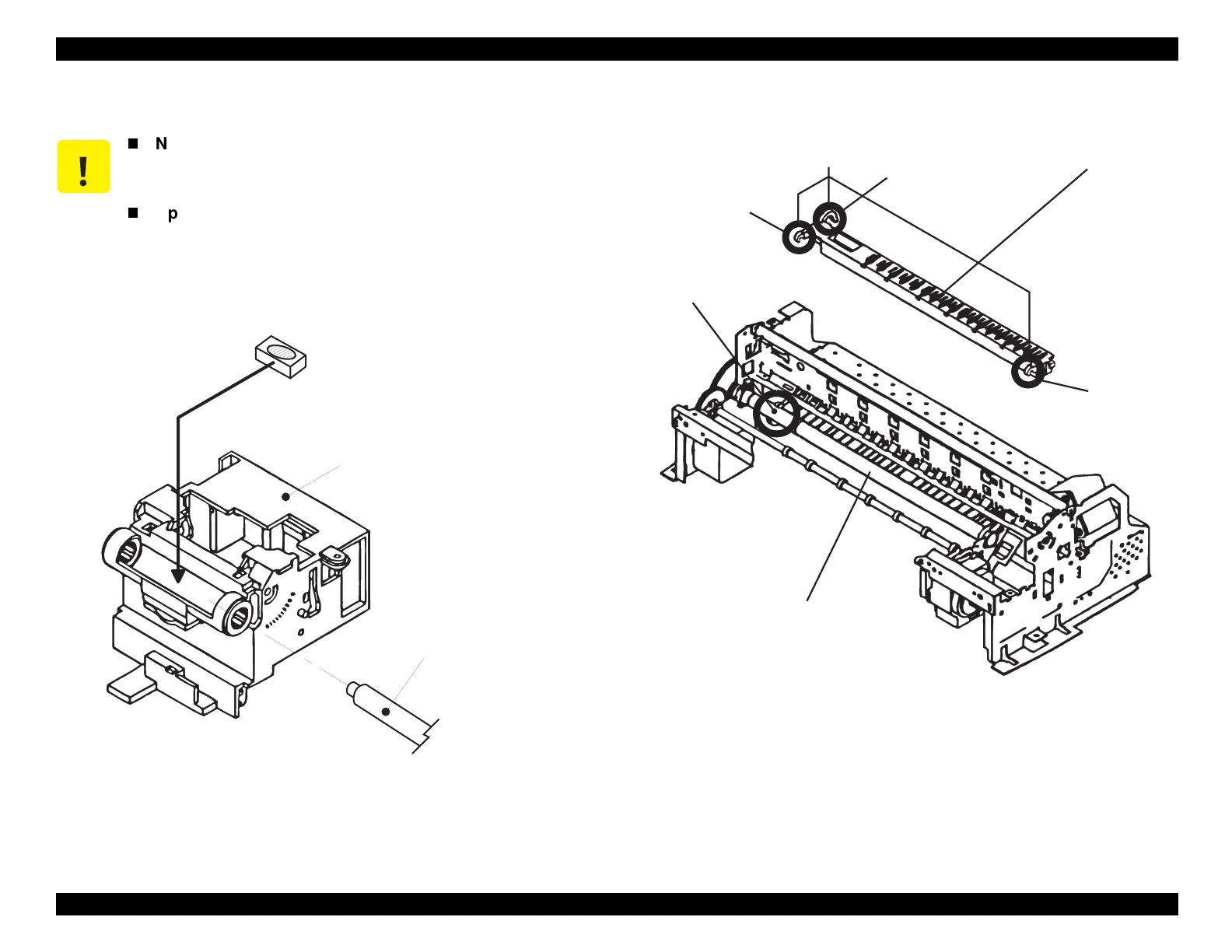

Figure 6-1. Applying Oil to the Oil Pad
Figure 6-2. Paper Feed Roller and Platen
CAUTION
 Never apply oil directly to the CR guide shaft.
Otherwise, you can damage printer components,
including the printhead.
 Apply only the specified amount of oil to the oil pad.
If you apply too much oil, throw away the pad and
start over with a new one.
No.12
(O il pad)
N ever apply m ore than 0.7 cc of oil.
C arriage Assem bly
(b o tto m v ie w )
C arriage G uide S haft
No.1
No.2
3/8 inch
(10 m m )
1/16 inch
(2 mm)
Platen
Paper Feed R oller
1/16 inch
(2 mm)
