Epson STYLUS CX3650

EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
MAINTENANCE Overview 179

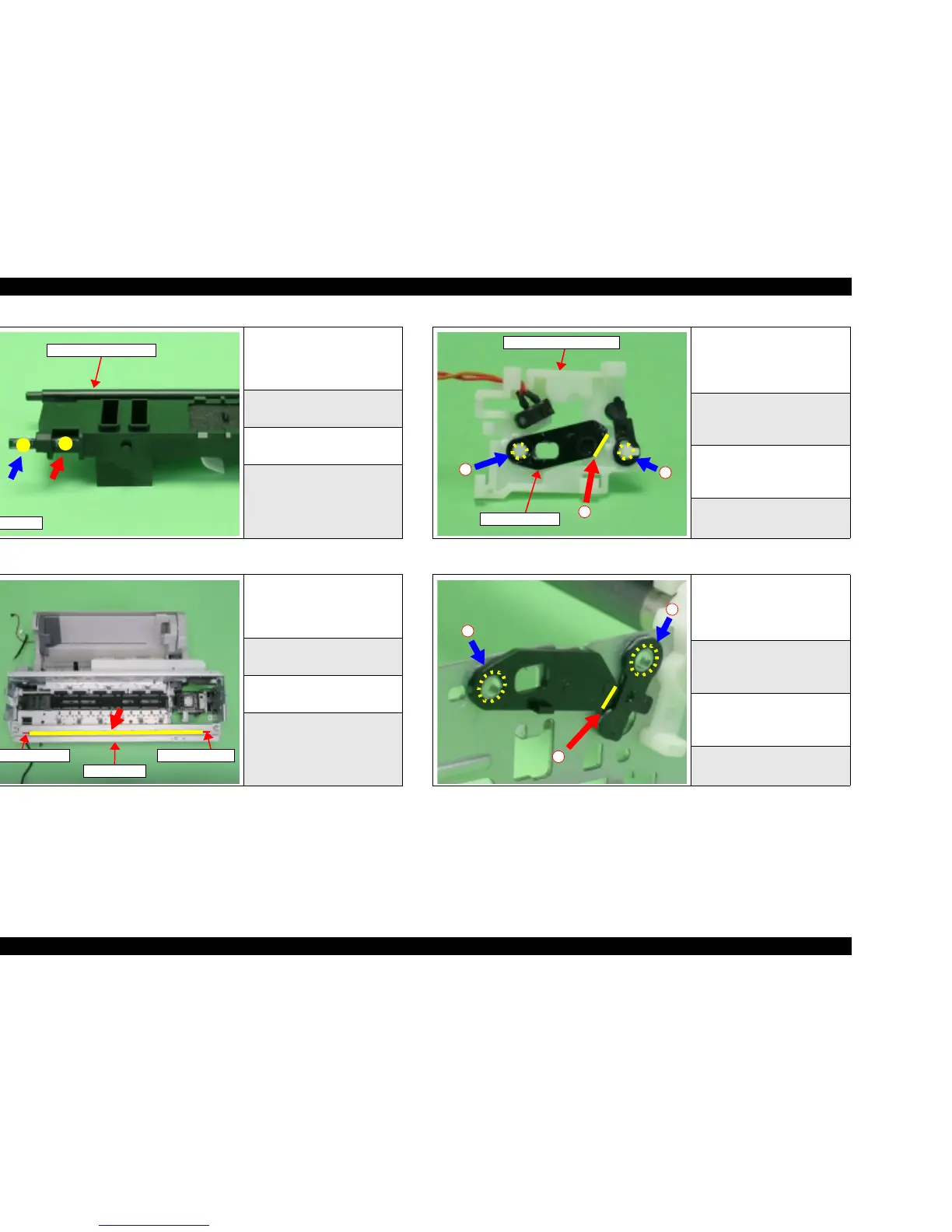

Figure 6-9. Lubrication
Figure 6-10. Lubrication
Figure 6-11. Lubrication
Figure 6-12. Lubrication
<Lubrication Point>
Points on the left side of Paper
Guide Front Unit as shown in the
figure
<Lubrication Type>
G-26
<Lubrication Amount>
φ1 x 1mm x 2 points
<Remarks>
Use a injector to apply it
<Lubrication Point>
From the left edge of the Front
Frame (left line mark) to the right
edge of that (right line mark)
<Lubrication Type>
G-71
<Lubrication Amount>
200mg
<Remarks>
Use a injector to apply it
Left side
Paper Guide Front Unit
Left line mark Right line mark
Front Frame
<Lubrication Point>
1. Edge line of Link Lever (Left)
2. Around 2 dowels of Link Lever
Holder (Left)
<Lubrication Type>
1. G-26
2. G-26
<Lubrication Amount>
1. φ1 x 1mm
2. φ1 x 2 points
<Remarks>
Use a injector to apply it
<Lubrication Point>
1. Edge line of Link Lever (Right)
2. Around 2 dowels of Main
Frame (Right)
<Lubrication Type>
1. G-26
2. G-26
<Lubrication Amount>
1. φ1 x 1mm
2. φ1 x 2 points
<Remarks>
Use a injector to apply it
1
2
2
Link Lever Holder (Left)
Link Lever (Left)
1
2
2
