EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A
MAINTENANCE Overview 180

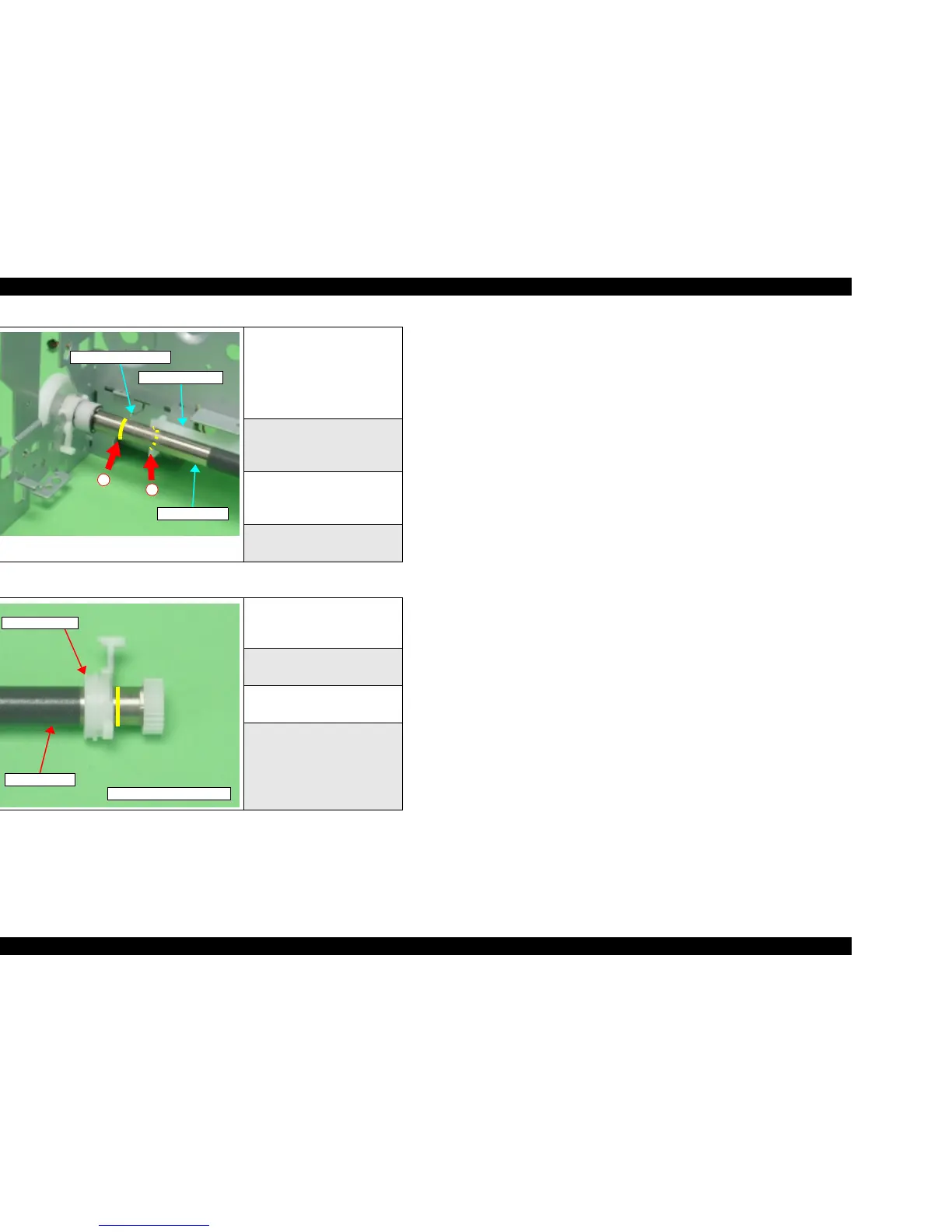

Figure 6-13. Lubrication
Figure 6-14. Lubrication
<Lubrication Point>
1. Contact point between PF
Grounding Spring and PF
Roller Unit
2. Contact point between Paper
Guide Rear and PF Roller Unit
<Lubrication Type>
1. G-26
2. G-26
<Lubrication Amount>
1. φ1 x φ of PF Roller Unit
2. φ1 x φ of PF Roller Unit
<Remarks>
Use a injector to apply it
<Lubrication Point>
Contact point between Bush 10
(Right) and PF Roller Unit
<Lubrication Type>
G-26
<Lubrication Amount>
φ1 x φ of PF Roller Unit
<Remarks>
Use a injector to apply it
1
2
PF Grounding Spring
Paper Guide Rear
PF Roller Unit
Bush 10 (Right)
Right side of PF Roller Unit
PF Roller Unit
