EPSON Stylus CX3500/CX3600/CX3650/CX4500/CX4600 Revision A

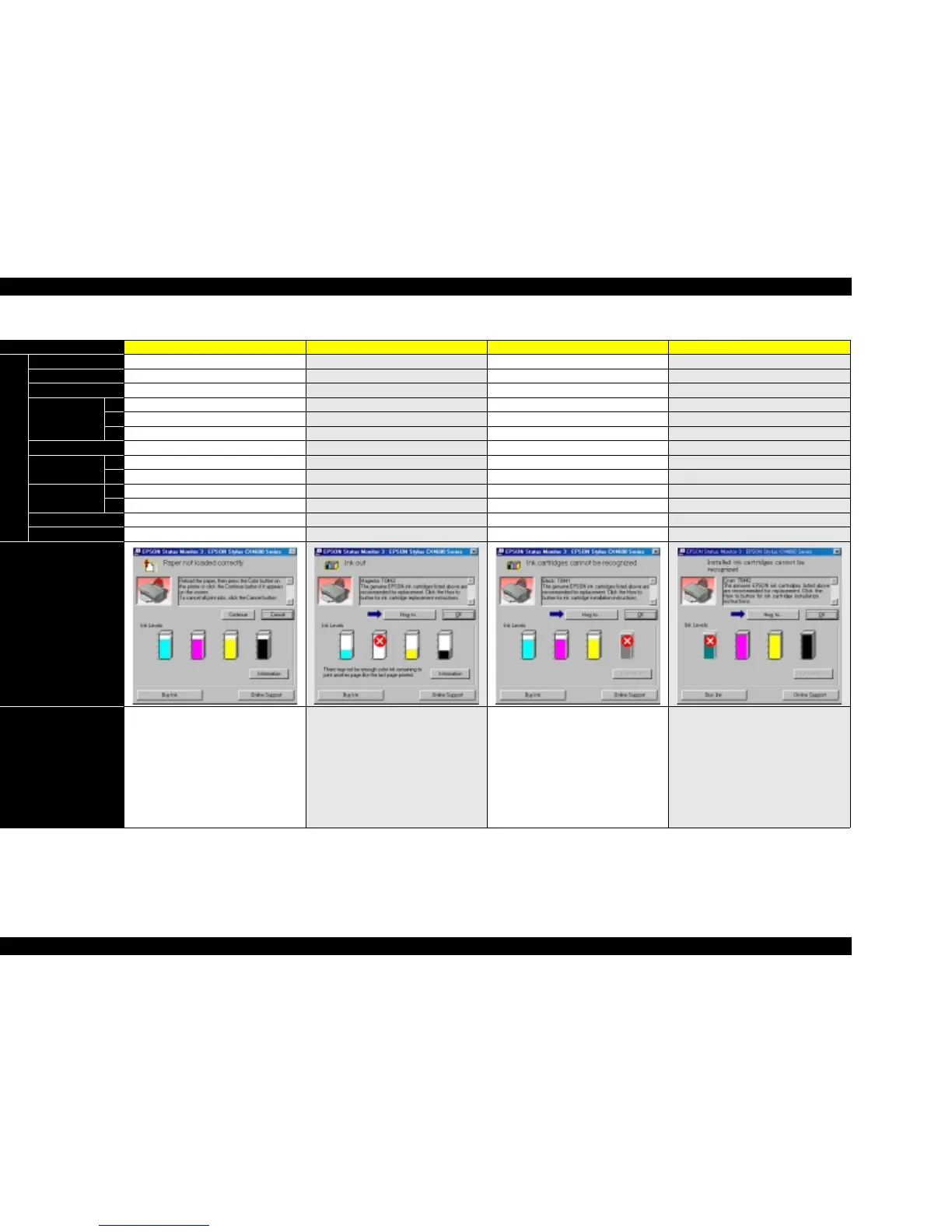

TROUBLESHOOTING Error Indications and Fault Occurrence Causes 83
Printer Status Paper out Ink out or No Ink cartridge CSIC error Incorrect I/C
Indi-
cations
Power — ———
Error On Off Off Off
Ink Off On On On
Memory Card
(only for Stylus
CX4500/CX4600)
1 — ———
2 — ———
3 — ———
7-seg. — ———
Paper Type
1 — ———
2 — ———
Paper Size
1 — ———
2 — ———
Fit to Page — ———
Card Access — ———
Status monitor 3 message
Fault Occurrence Cause
This error is detected when the top of a
paper is not detected with the PE
Sensor in the paper loading sequence.
This error is detected when;
• The ink consumption amount reaches
100%.
• The ink cartridge is defective.
Note :
The slight amount of the ink is remaining in
the I/C even if the Ink Out error is detected.
This is to prevent the Print Head nozzle from
the printing operation without firing the ink.
This error is detected when data from
CSIC cannot be read normally or when
data cannot be written to CSIC.
This error is detected when;
• An unsupported ink cartridge has
been installed.
• An ink cartridge with a different
destination has been installed.
Table 3-3. Error Indications and Fault Occurrence Causes
Note : “–” : Don’t care
Blink : 0.5sec. On + 0.5sec. Off repetition
Blink 2 : 0.2sec. On + 0.2sec. Off + 0.2sec. On + 0.4sec. Off repetition
Blink 3 : Blink on and off along with access to a memory card.
Fast blink : 0.2sec. On + 0.2sec. Off repetition
Slow blink: 2.0sec. On + 2.0sec. Off repetition
Note *1: When the setting is “On”.
*2: After finishing copying, the counter returns to the preset number of copies.
