Appendix
Die-cut label(Gap)
Media type Plain label / Matte label / Synthetic label / Glossy label
Media source Roll paper
Backing paper width 50 mm to 112 mm {1.97 to 4.41"}
Label width 46 to 108 mm {1.81 to 4.25"}
Label length 25.4 to 1117.6 mm {1 to 44"}
Gap between labels 3 to 6 mm {0.12 to 0.24"}
Left and right outer edges 2 0.5 mm {0.08 0.020"}
Label edge R 1.5 mm {0.08"} or less
Paper thickness Plain label/ Matte label/ Synthetic label:
0.129 to 0.236 mm {0.005 to 0.009"} (reference values)
Glossy label:
0.167 to 0.182 mm {0.007 to 0.007"} (reference values)
Paper core Internal diameter: 76.2 0.5 mm {3 0.020"}
External diameter: 82.2 mm {3.24"} or more
External diameter Maximum 101.6 mm {4"}
Winding direction Printing face must be facing outside.
Do not use the paper with a hole or cutout.
If the backing is synthetic media or film, it will be difficult to cut by hand even if there is a
perforation, so do not use the perforation.

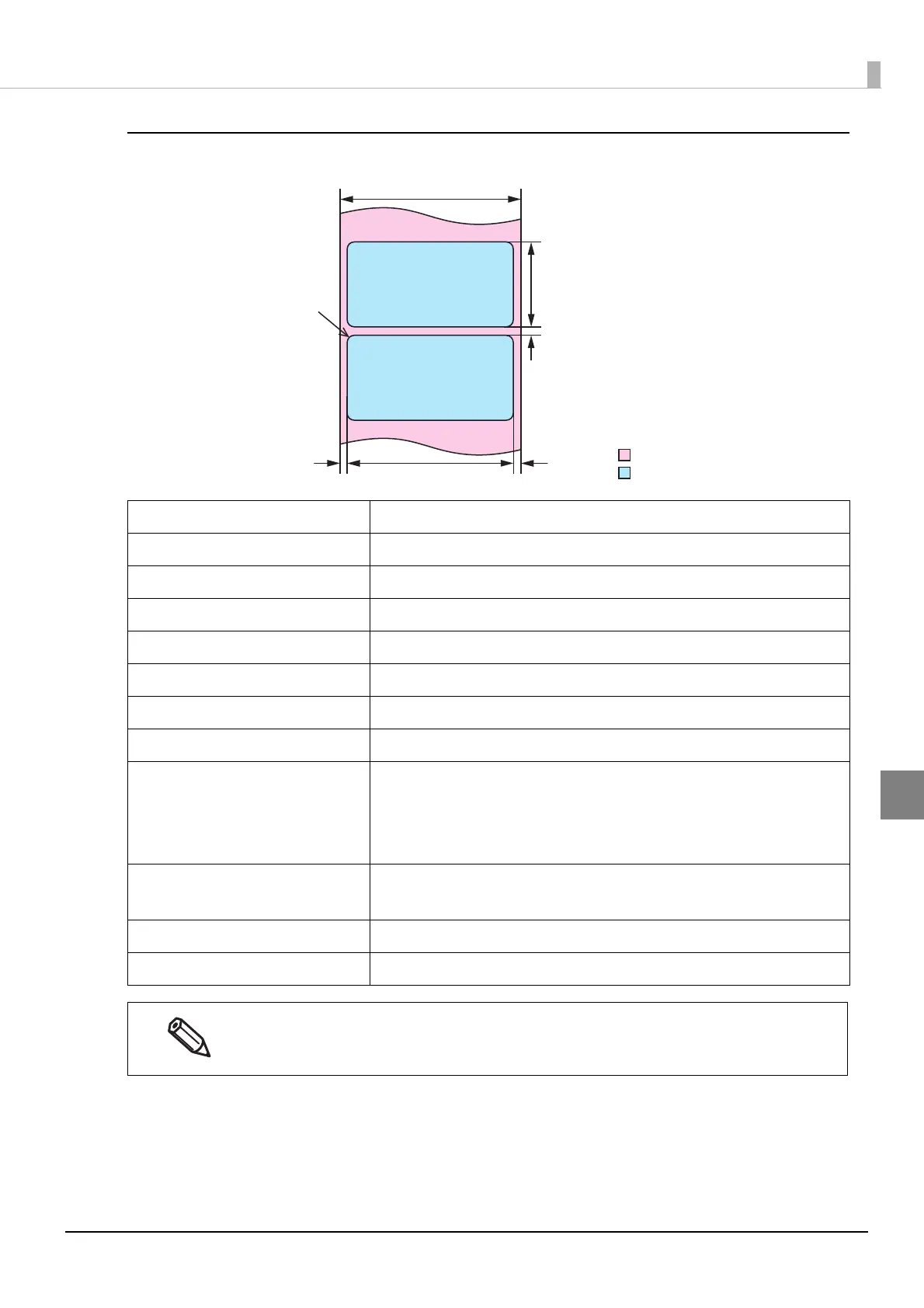

Label area
Backing paper
Backing paper width
Edge R
Label length
Gap between
labels
Edge cutoffEdge cutoff
Label width
