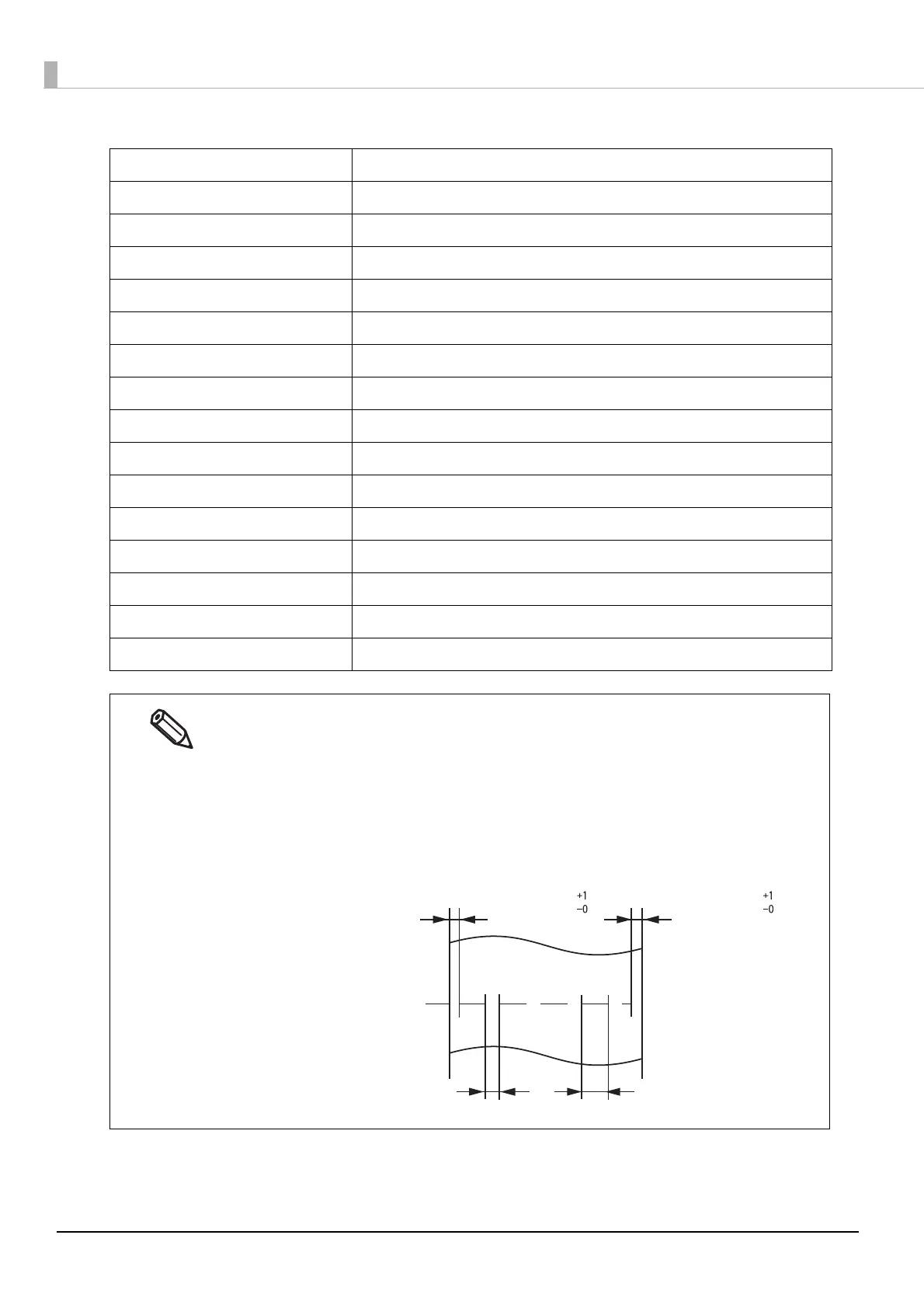

Media type Plain label / Matte label
Media source Fanfold paper
Backing paper width 50 to 112 mm {1.97 to 4.41"}
Label width 46 to 108 mm {1.81 to 4.25"}
Label length 25.4 to 301.8 mm {1 to 11.88"}
Gap between labels 3 to 6 mm {0.12 to 0.24"}
Left and right outer edges 2 mm 0.5 mm {0.08 0.020"}
Label edge R 1.5 mm {0.06"} or less
Width of a black mark 28 mm {1.10"} or more from paper edge
Length of a black mark 5 mm {0.20"} or more
Black mark position Right edge of back of paper, when feed edge is at top
Gaps between black marks 28.4 to 304.8 mm {1.12 to 12.0"}
Paper thickness 0.161 to 0.164 mm {0.006 to 0.006"} (reference value)
Perforated line pitch 203.2 to 304.8 mm {8 to 12"}
Form of perforated line 1 mm {0.039"} uncut, 5 mm {0.20"} cut
Number of folds 750 or less
Do not use the paper with a hole or cutout.
Autocutting on the perforated lines may generate minute paper dust, causing machine prob-
lems. Also, autocutting ahead of the perforated line may cause problems when feeding
paper. Therefore, autocutting must be performed 0.5 mm to 1 mm {0.02 to 0.039"} behind
the perforated line.
Therefore, set the black mark position 2 mm {0.08"} or more from the perforation.
For the black mark position of the die-cut label paper, match the label edge to the black
mark edge.
The perforations on both sides of the paper shall be uncut.
Perforated line
Length of the
uncut portion
Length of the portion
1 mm { }
0.04”
1 mm { }
0.04”
