Grounding the Printer
When you use the printer as a single unit (not connected to an intelligent
module), you need to ground your printer. (Intelligent module connection
is available for the TM-U375 only.)
Recommended wire is described below.
Thickness of wire
:
AWG18
or equivalent
Diameter of terminal to be attached
:
3.2
1.
Make sure that the printer is turned off.
2.

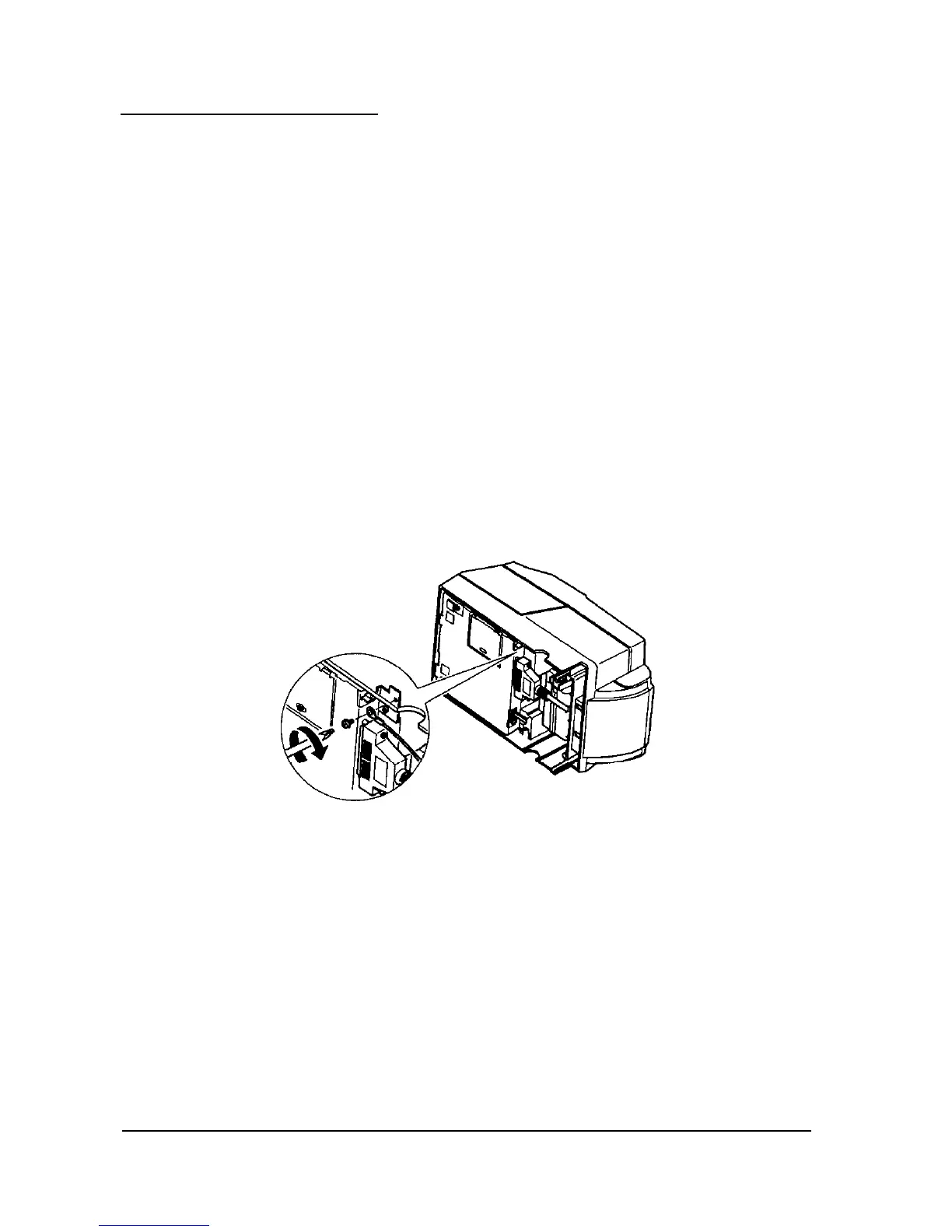

Connect the ground wire to the ground connector (marked FG) on the
bottom of the printer with the screw provided on the printer.
Alternatively, another screw located beside the power connector on the
TM-U375P can be used to connect the ground wire.
TM-U375
Setting Up the Printer
1-11
