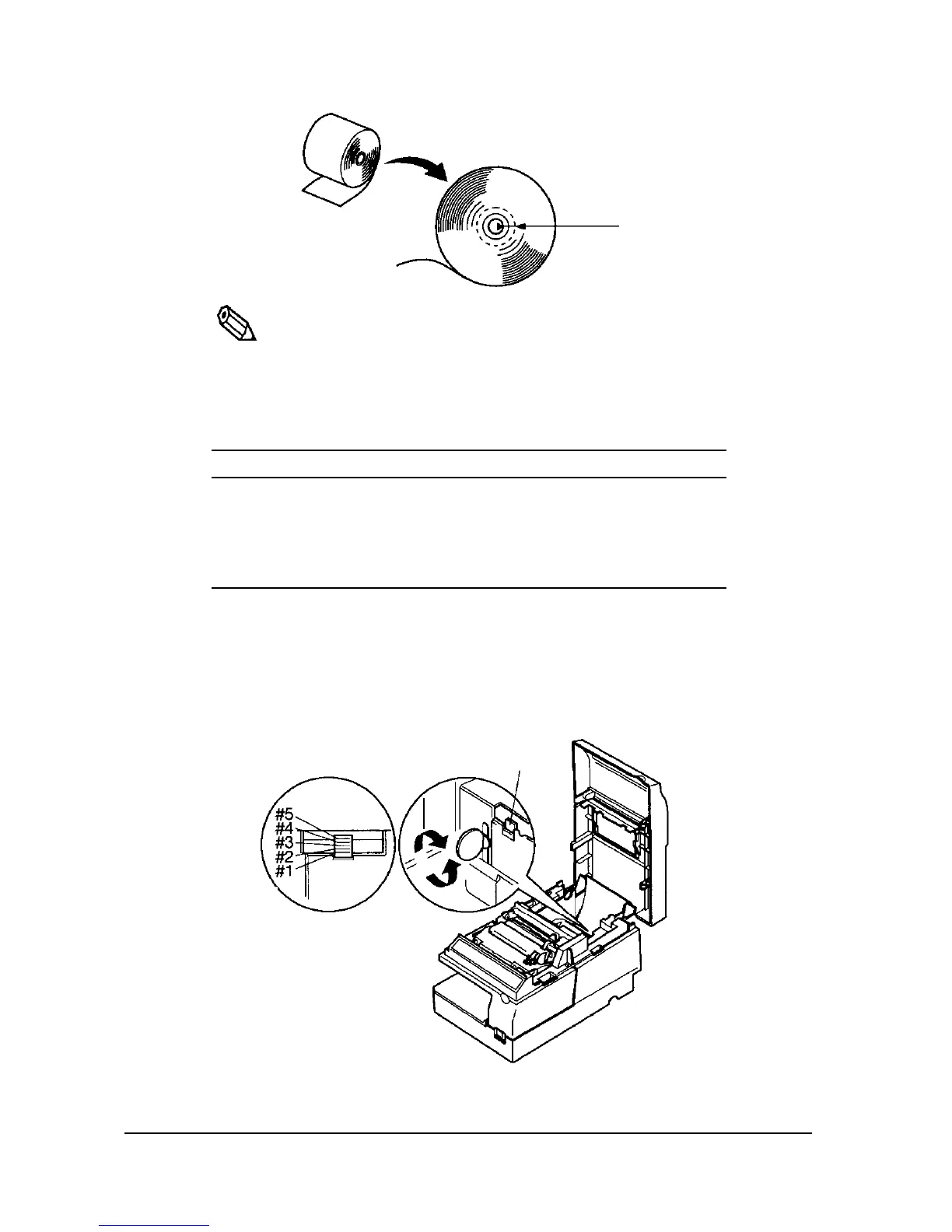

Distance A
*
a
Notes:
There may be some difference between
the
measured distance A
and
the
actual sensing position.
3.
Find the corresponding adjustment position number from
the
table below.
Distance A
Adjustment position number
10 mm (0.39 inch)
#l
8 mm (0.32 inch)
#2
6 mm (0.24 inch)
#3
4
mm (0.16 inch)
#4
2
mm (0.08 inch)
#5
4.
Loosen the detector screw with a coin or screwdriver.
5.
Set the detector scale to the position you determined from the table by
moving the detector screw up or down. The numbers
#1,
#2,
#3...
are
not marked on
the
detector scale. Use the illustration below for reference.
Detector scale
Detector scale
6.
Secure the detector screw; then replace the take-up spool and close the
printer cover.
1-24
Setting Up the Printer
