Epson WF-2010 User Manual

WF-2540 / WF-2530 / WF-2520 / WF-2510 / WF-2010 series Revision B
Confidential
Disassembly/Reassembly Disassembly/Reassembly Procedures 31

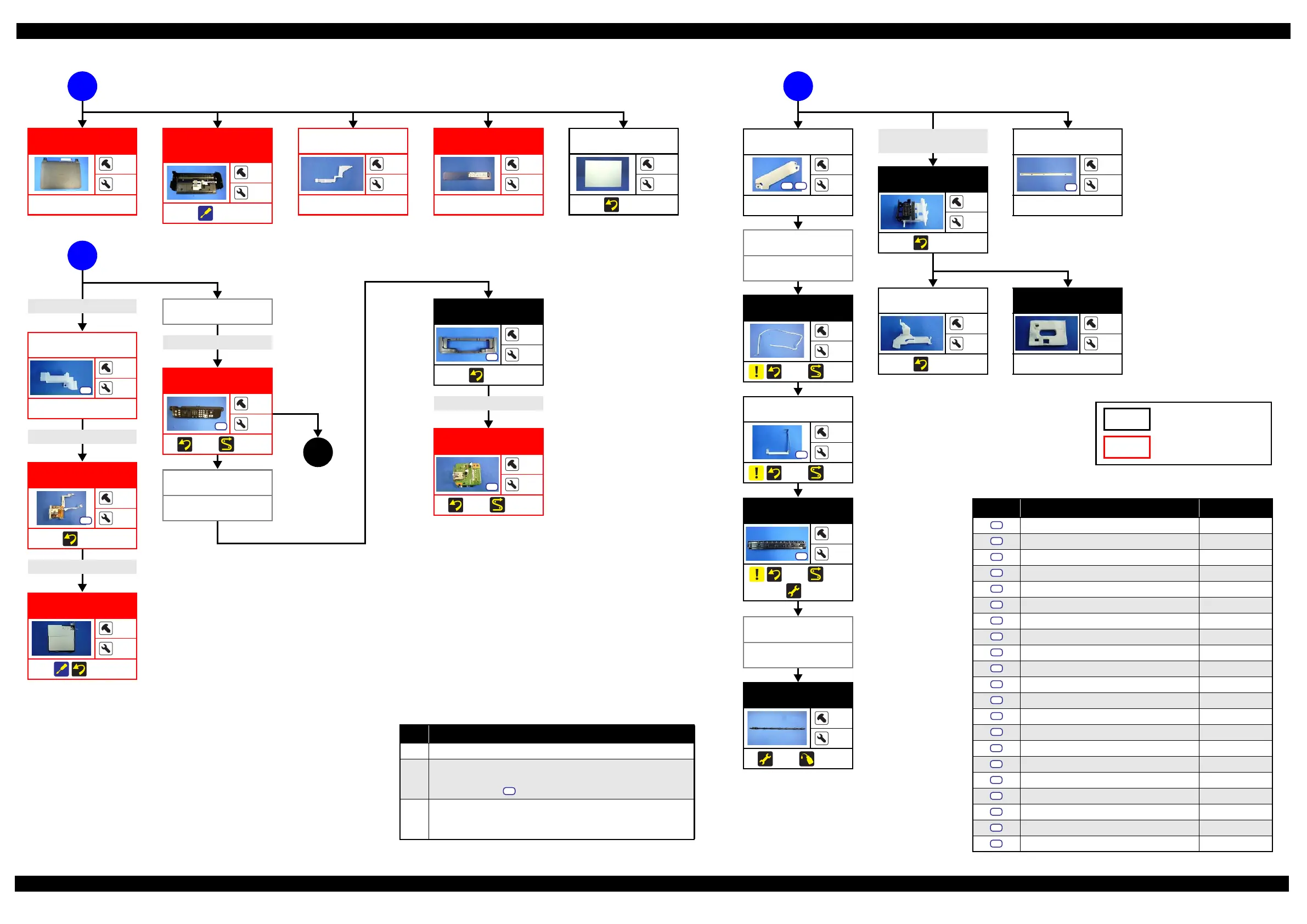

Flowchart 2-2. Multifunction Printer specific parts (2)
A
(p 30)
Document Cover
Assy
---
2
---
ADF Paper
Guide Cover
Assy
---
2
(p 40)
ADF Cable
Cover
---
4
---
Paper Support
Cover
---
2
---
C
(p 30)
Document Mat
---
---
(p 40)
Strengthen Plate
Upper
2
2
---
S1
S19
PIS Shield
Plate B
1
1
(p 43) (p 50)
S20
Star Wheel
Holder Assy
1
2
(p 43) (p 50)
(p 52)
S7
EJ Roller
---
6
(p 52) (p 67)
 Extension spring (x2)
 Pump tube
Cap Assy
---
3
(p 47)
Cap Lever
---
1
(p 47)
Strengthen Plate
Lower
2
3
---
S7
Porous Pad for
Cap Assy
---
---
---
 FFC/Cable* 1
B
(p 30)
Main Board FFC
Holder
1
2
---
S15
 Cable (CN14)
Ethernet Board
Assy
1
2
(p 46)
S7
 FFC/Cable* 3
FAX Assy
---
3
(p 45)
Panel FFC Cover
(p30)
 FFC/Cable* 2
5
(p 37)
Panel Unit
2
2
(p 42) (p 49)
S6
Hinge (p30)
Housing Right
(p30)
Housing Front
2
---
(p 41)
S6
 USB Board cable (CN2)
USB Board
2
---
(p 45) (p 50)
S7
FFC/cable list
No. FFC/Cable
1 Disconnect the Panel FFC (CN2), and remove the ferrite core.
2
Remove/disconnect the following.
 Panel FFC (CN2)
 Grounding wire( x1)
3
Remove/disconnect the following.
 USB Board cable (CN9)
 FAX FFC (CN1)
S17
Screw type/torque list
Symbol Screw Type Torque
C.B.P-TITE (S-P1) SCREW 3x12 F/ZN-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 2x6 F/ZN-3C 4 ± 1 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2
± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 2.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 4
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZB-3C 6 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 6
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5
± 0.5 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 7 ± 1 kgf·cm
C.B.P-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE (P2) SCREW 3x6 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE (P2) SCREW 3x6 F/ZN-3C 7
± 1 kgf·cm
C.B.S-TITE SCREW 2x4 F/ZN-3C 2 ± 0.5 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZB-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 6
± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 8 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 7
± 1 kgf·cm
C.P-TITE SCREW 3x4 F/ZN-3C 4 ± 1 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZB-3C 6
± 1 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
Model-specific parts/unit
Common parts/unit
Housing Left
Assy (p30)
EJ Roller Gear
(p34)
PIS FFC
---
---
(p 43) (p 50)
PIS Shield Plate
A (p30)
PIS Board Assy
(p30)
