11
•
Spare
parts
54
/ 56
80116-2
61
2018-07

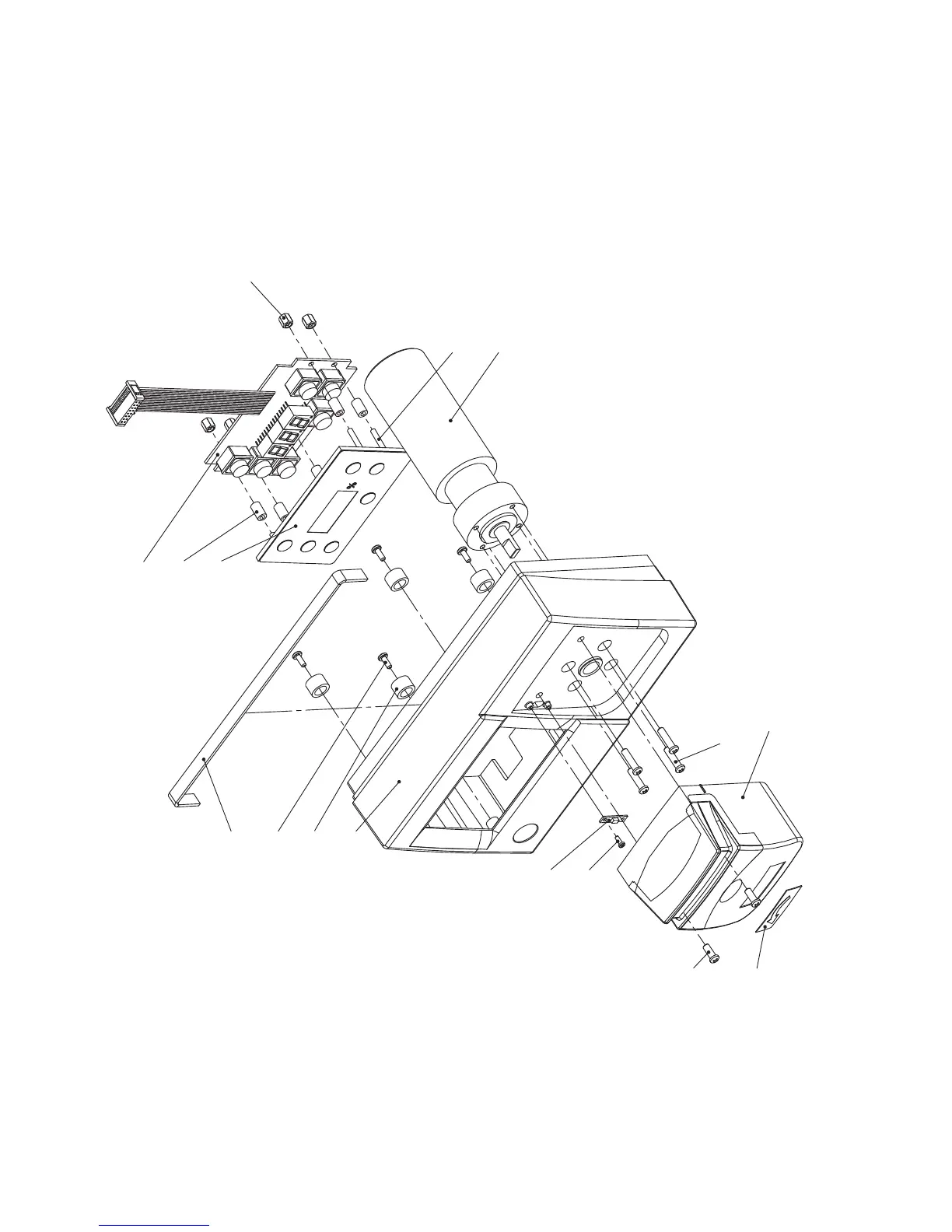

Fig.
11-7
55603-018 (5)
30325-007 (1)
40325-006 (1)
30325-801 (1)
55603-035 (5)
40325-009 (1)
80310-063 (1)
55000-121 (4)
55603-070 (4)
40325-001 (1)
30325-802 (1)
55021-108 (1)
55000-114 (2)
40325-011 (1)
55000-115 (4)
40325-021 (1)
53
55
Table of Contents
Default Chapter
5
Table of Contents
5
1 Safety Information
7
Classification of the Safety Information
7
Knowledge of the User Manual
7
Protection from the Risk of Electric Shock
7
Electrostatically Sensitive Components
8
Liability and Warranty
8
2 Modifications
9
3 Unit Description
11
Unit Variants
11
Factory Setting
11
Controls
12
Controls at the Front
12
Symbols
13
Controls at the Rear
13
Description of Function
14
4 Technical Data
15
5 Installation
17
Installation Possibilities
17
6 Circuit Descriptions
19
Block Diagram EIP 2 (120 V / 230 V)
20
Block Diagram EIP 2 (100 V)
21
Beschreibung der Einzelnen Baugruppen
22
Line Input
22
Transformer
22
Bridge-Connected Rectifier
22
Switching Controller
22
Monitoring the Motor Control
22
Motor Control
22
Microcontroller
23
CAN Module (Optional)
23
Footswitch
23
Control Panel
23
Motor
23
7 Service Programs
25
Calling up Service Program Mode
25
Navigating between Service Programs
25
Leaving the Service Program Mode
25
Description of Service Programs
26
Service Program S1 Flow Test
26
Service Program S2 LED Test
27
Service Program S3 Continuous Running / Burn-In
28
Service Program S4 Version Output
29
Service Program S5 Automatic Pressure Control
30
8 Remedying Malfunctions
31
9 Maintenance and Servicing
33
Technical Safety Check, National Regulations, Trained Persons
33
Test Intervals
33
Technical Safety Check
34
Important Information
34
User Manual and Visual Inspections
35
Tests to be Conducted in Accordance with the National Specifications
35
And Regulations
35
Performance Tests
35
10 Replacing Components
37
Change Pump Head
37
Change Gear Motor
39
Change Main Board
44
11 Spare Parts
47
Abbreviations
47
EIP 2 Without ECB
48
EIP 2 with ECB
52
