CHAPTER 3
Controls
Controls at the front

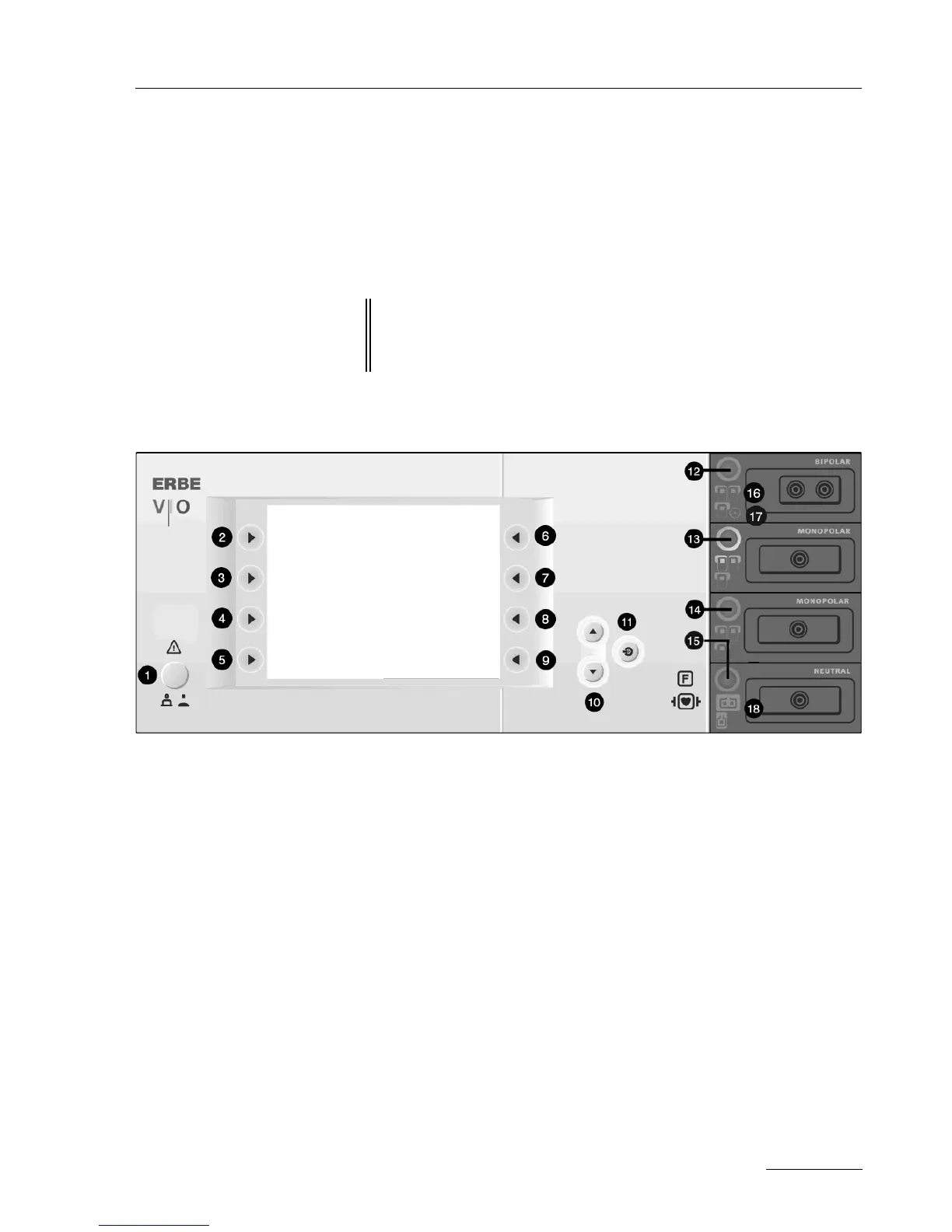

Fig. 3-1
IMPORTANT! This chapter contains an overview of the controls of the unit(s).
The relevant User Manual for the unit(s), knowledge of which is
assumed for servicing work, provides detailed information about
how to use the unit(s).
1 Power Switch
2 – 9 Selection buttons
10 Up/Down buttons
11 Enter button
12 – 15 Focus buttons
16 Pilot lamps for footswitches
17 Pilot lamp for AUTO START
18 Pilot lamps for neutral electrodes
