Erbe VIO 300 D Service Manual

8 • Measurement and adjustment
52 / 144
Art.-Nr.: 80116-271 04.06

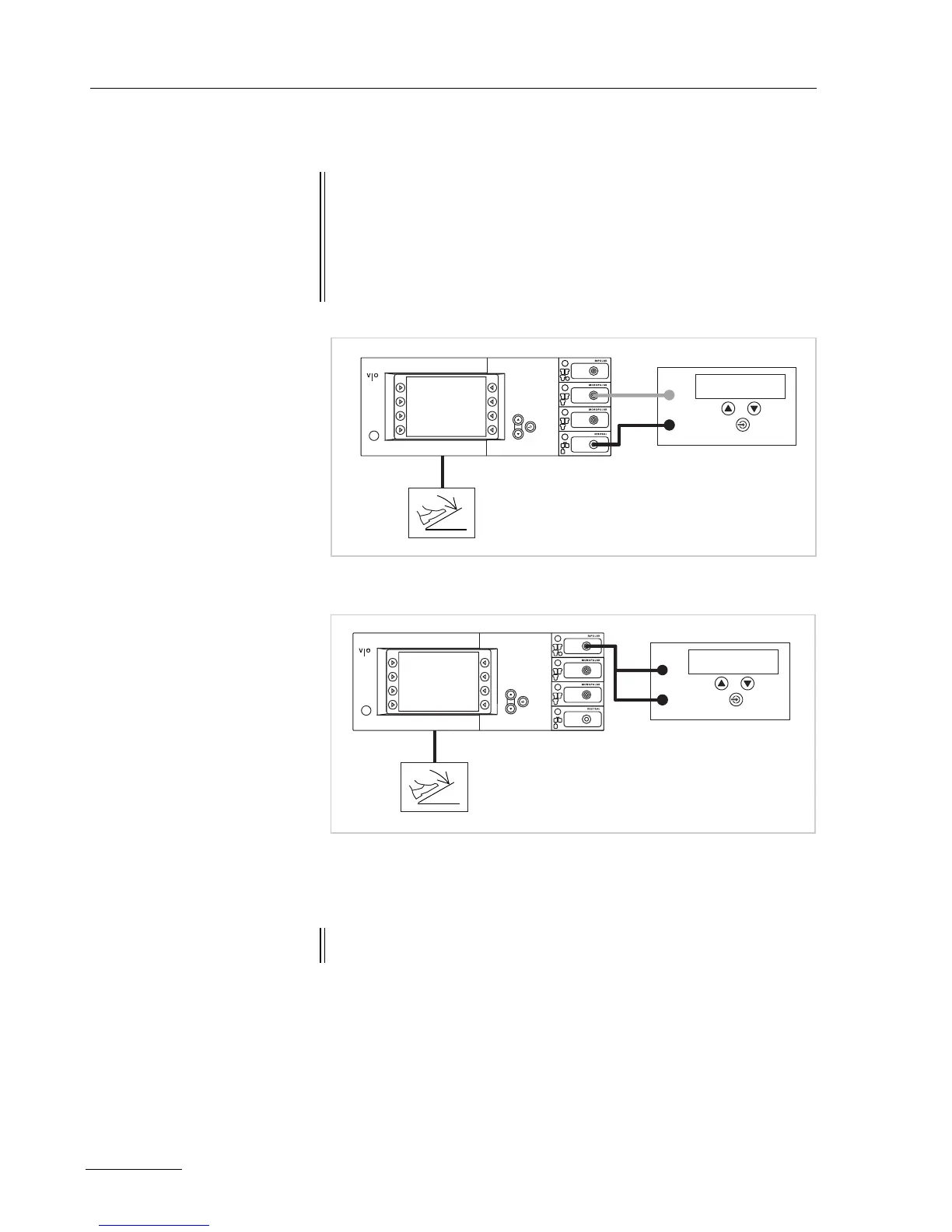

Test set-up
Fig. 8-1
Fig. 8-2
Test procedure
1. Switch the unit off and start it again in normal mode.
2. Set the mode, effect and power limitation using the values in the
safety check (STK) log.
3. Also set the impedance on the HF power meter using the values
in the safety check (STK) log.
4. Activate the unit. The values measured can be checked on the
HF power meter.
5. Repeat steps 2 to 4 with other settings.
IMPORTANT! ERBE Elektromedizin recommends measuring HF output power
with a Metron QA-ES. For this purpose the Metron must be
adjusted so that it is up to date. To this end please contact a Met
-
ron service point.
Measurements that are conducted with a different HF power meter
or one which has
not been adjusted can produce figures that are
very different than those on the final test report of the unit.
ERBE
AE
NE
HF power meter
ERBE
HF power meter
Bipolar
IMPORTANT! Measure the HF power output using the values in the safety check
(STK) log.
