EASY-ROTOR-CONTROL M V2.2 Instructions

___________________________________________________________________________

Tannenstr. 16 Page 37 of 44 email : erc@schmidt-alba.de

86836 Untermeitingen / Germany

This document is for the user only. Any publishing (printed or in electronic form) is not allowed.

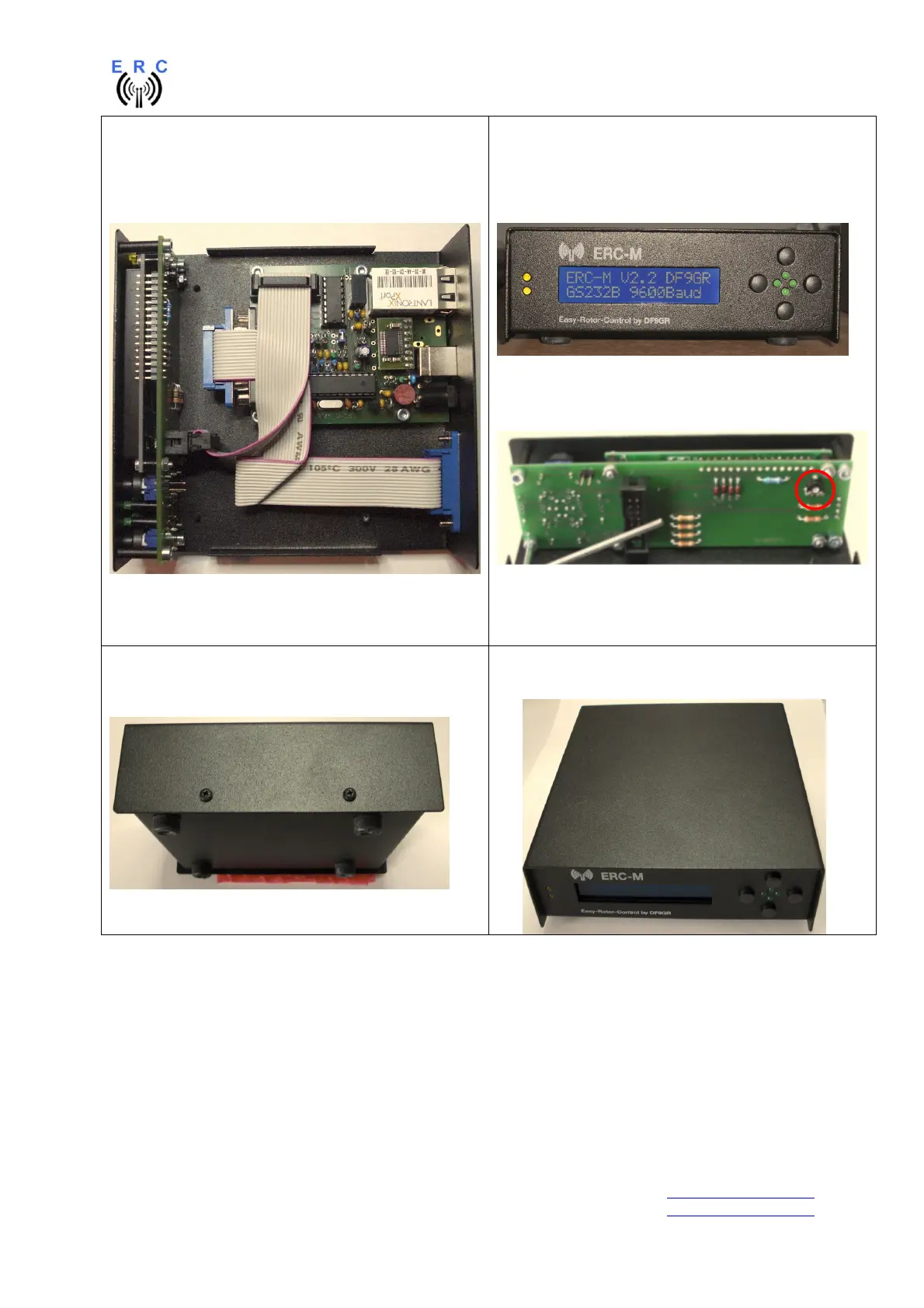

Attach the 16-pole flat-ribbon-cable into the

connectors as shown.

Connect the ERC-M to DC-supply or USB to check

contrast settings. After start-up you should see a

start-up-screen like this:

Adjust the contrast with the potentiometer R1 on the

backside of the HID-PCB.

Put the top-cover onto the housing and fix it with 4

screws 2.9x6.5mm

Here we are: READY to go
