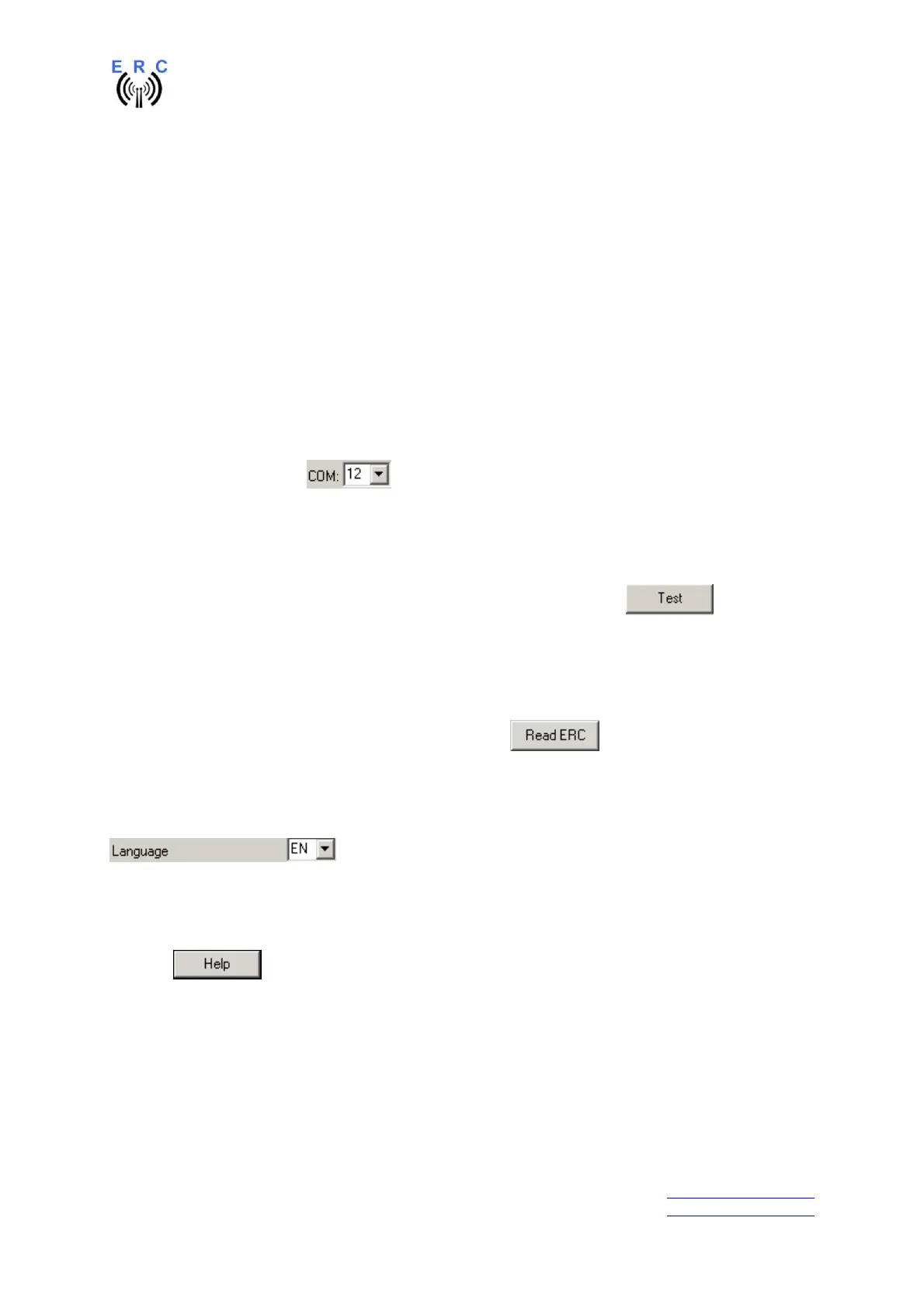

7. The Service-Tool

The Service Tool is on the CD supplied with the kit.

Start the Setup-File SETUP ERC-M_Vnn.EXE (nn=version) directly on the CD and follow the

instructions.

The installation wizard will automatically install the Service Tool in the program directory (or any other

if you choose a different one) and put an icon on your desktop.

Start the Service Tool by double-clicking the Icon on the desktop.

7.1 Configuration of the COM-Port

On shipment, the Service Tool is configured to COM1, which is most properly not the com-port, where

you connected the ERC-M, hence after Start-Up the program may bring up an error-message because

of the wrong COM-Port.

Choose the right COM-Port.

The Service Tool will check the availability of the ERC-M at the chosen COM-Port. If successful, the

Service Tool will read the configuration-parameters of the ERC-M and populates the configuration-

and the calibration-windows.

You can now perform a little hardware-test before the installation. Click the -button and all

LEDs on the HID-PCB and relays on the rotor-cards will be switched on sequentially.

7.2 Read the ERC-M-configuration-parameters

The parameters of the ERC-M can be read by clicking the button.

7.3 Language

The Service-Tool and the help-files are available in different languages. Choose the language with the

-box.

7.4 Other functions of the Service Tool

The other functions of the Service Tool are well described in the help-function of the Service Tool.

Click the button.
