EASY-ROTOR-CONTROL M V2.2 Instructions

___________________________________________________________________________

Tannenstr. 16 Page 42 of 44 email : erc@schmidt-alba.de

86836 Untermeitingen / Germany

This document is for the user only. Any publishing (printed or in electronic form) is not allowed.

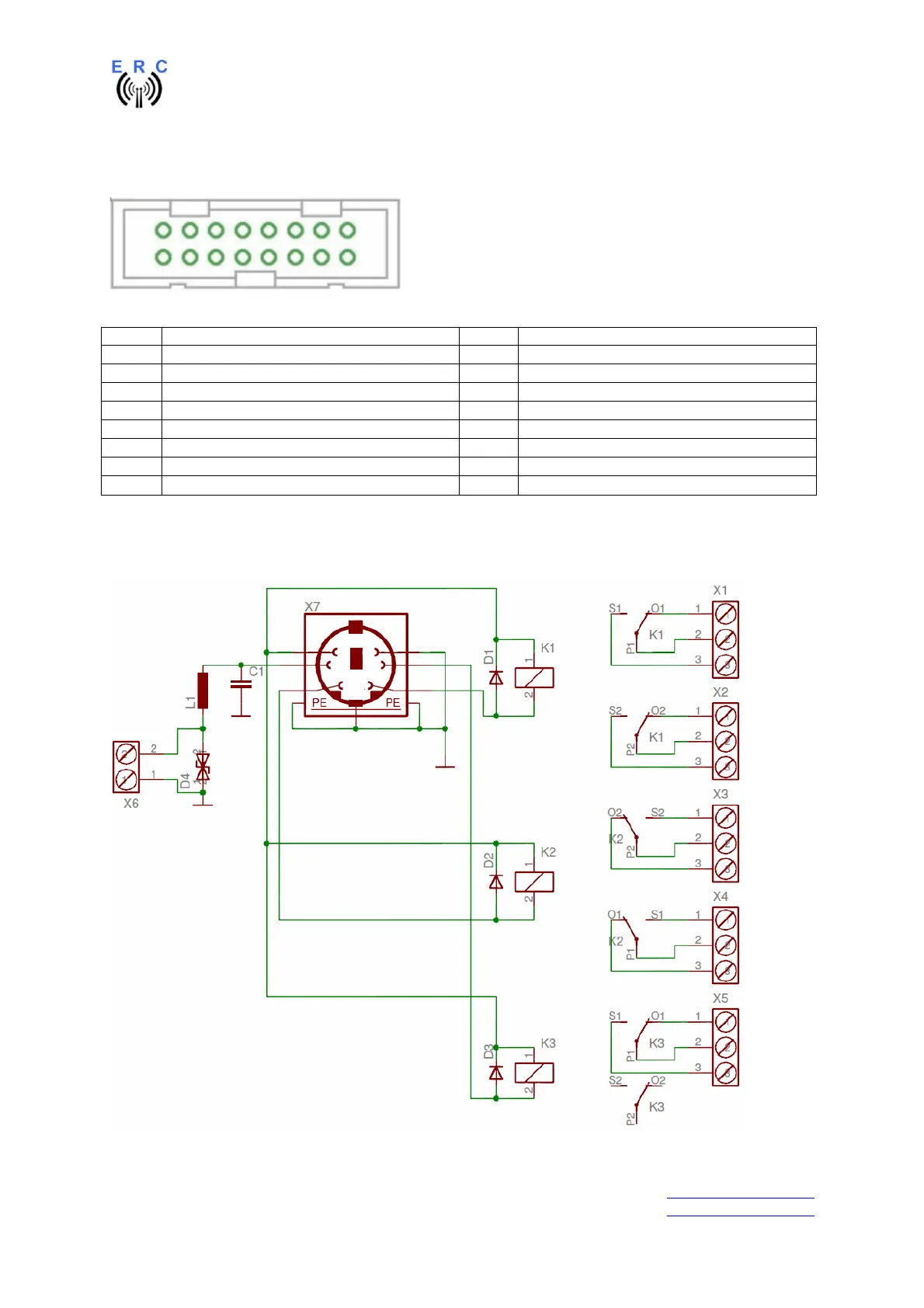

Appendix4: Pin-out of the HID-connector on ERC-M

2 4 6 8 10 12 14 16

1 3 5 7 9 11 13 15

Pin Pin

1 GND 9 LCD E

2 VCC 10 LCD RS

3 Keyboard Common 11 LED AUX2

4 +5V 12 LED AUX1

5 LCD D7, Keyboard UP 13 LED DWN

6 LCD D6, Keyboard DWN 14 LED UP

7 LCD D5, Keyboard CW 15 LED CCW

8 LCD D4, Keyboard CCW 16 LED CW

Appendix5: Schematics Rotor-Card
