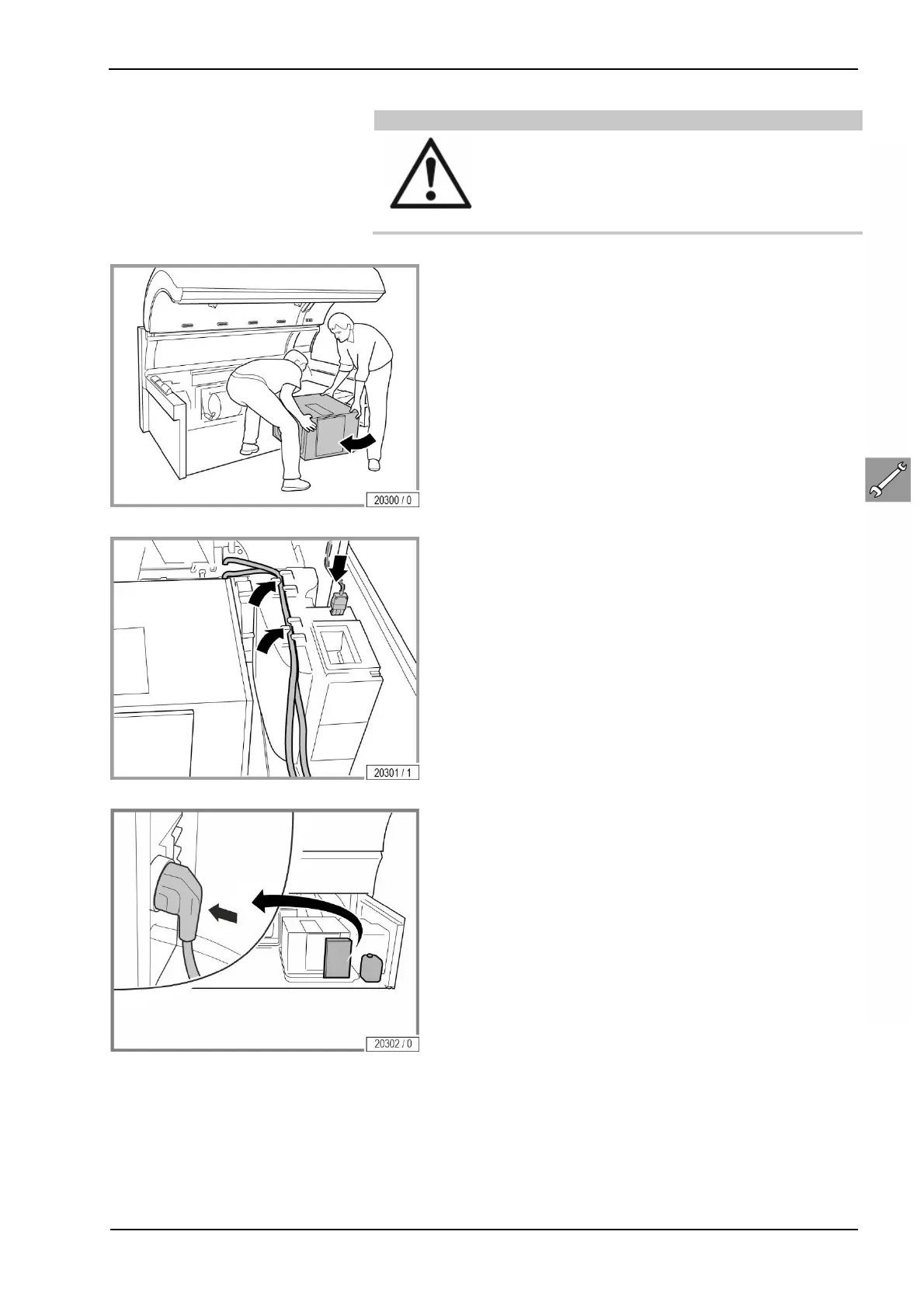

09/2022 1028657-00A Installation instructions – 43/58
Heavy parts! Risk of injury!
Depending on the version the air conditioning unit
weighs between 40 kg and 45 kg.
This procedure requires two (2) people.
– Insert the air conditioning unit.
– Direct mains cable along the top of the air condi-
tioning unit!
– Plug in the head and body ventilation (ST56)
connectors at the ventilation ducts.
– Push air conditioning and heating cables into the
clamps.
– Push body ventilation cables into the clamps.
– Put condensate canister and air conditioning unit
cover into the right place.
– Plug in connector and mains connector at air
conditioning cover.
To Next Page
