09/2022 1028657-00A Installation instructions – 21/58

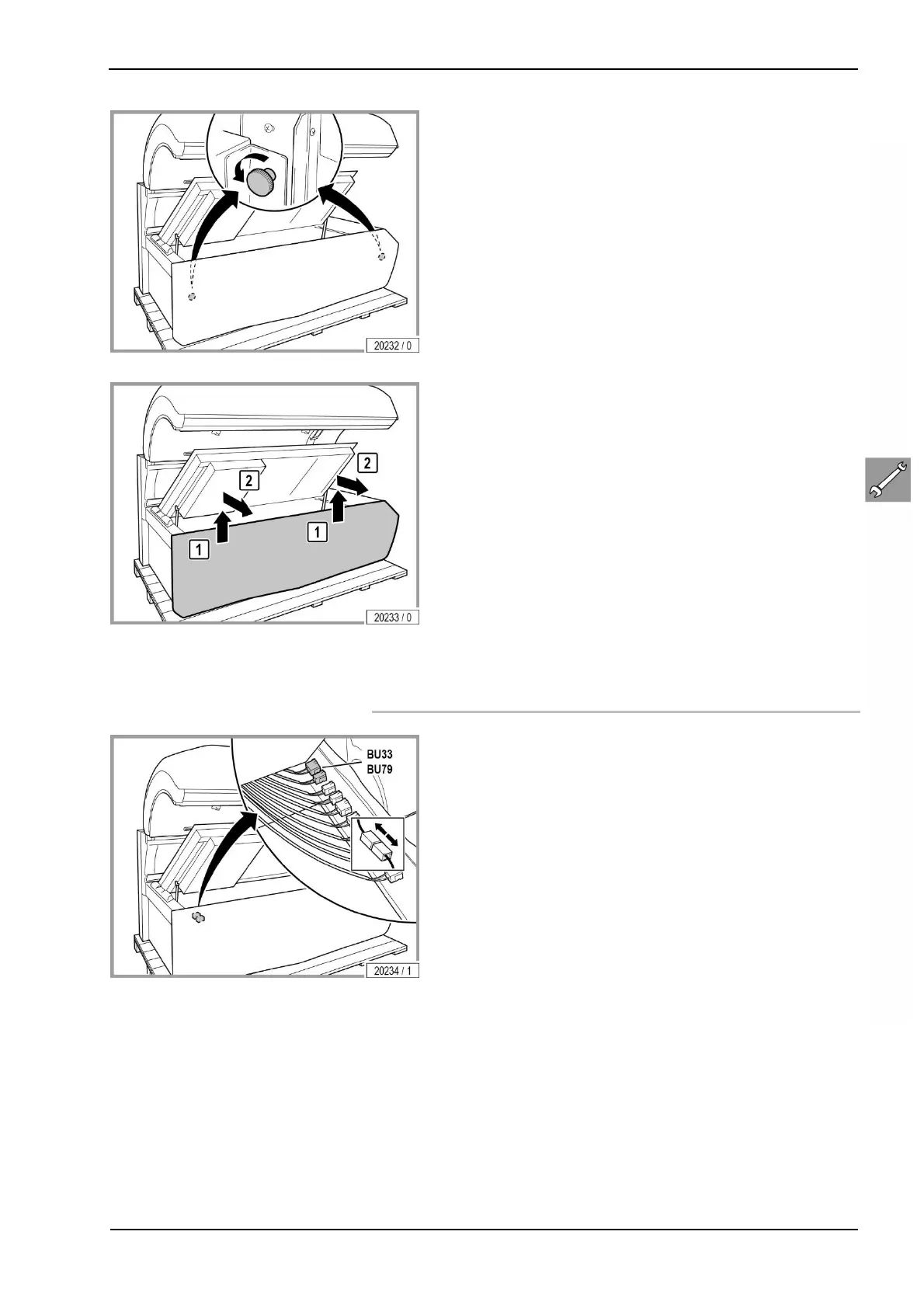

– Unscrew and remove both knurled thumb-screws
that hold the front panel in place.
– Lift the front panel (1) up slightly to release it
from the retaining fixture.
– Pull the front panel (2) out towards the front.
– Lines with the following plugs are connected to
the front panel:
X01ST
BU57
BU50
5.3 Dismantling the tray
– Unplug the rear two connectors on the left side of
the component rack:
BU33
BU79
