Dismantling
09/2022 1028657-00A Installation instructions – 31/58

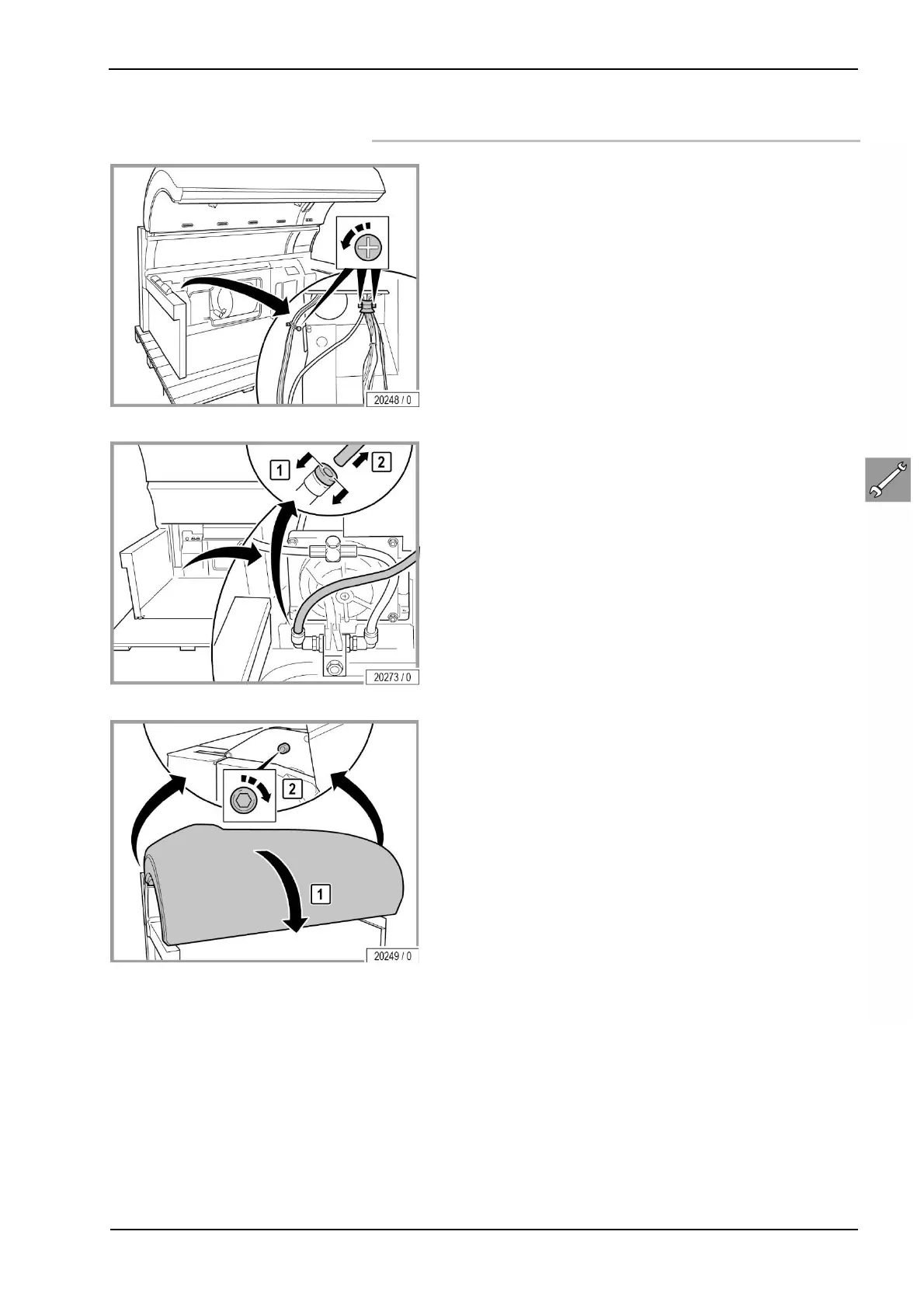

5.7 Dismantling the canopy
Unscrew pull reliefs on the left side.
Unscrew both pull relief screws (canopy wiring).
Tool: No. 2 Philips screwdriver or battery-powered
screwdriver with PHZ-bit 2
Pull the end of the hose off the compressor of
the AQUA / AROMA SYSTEM.
Close the canopy (1).
Secure the lifting device with screws (2)
transport lock.
