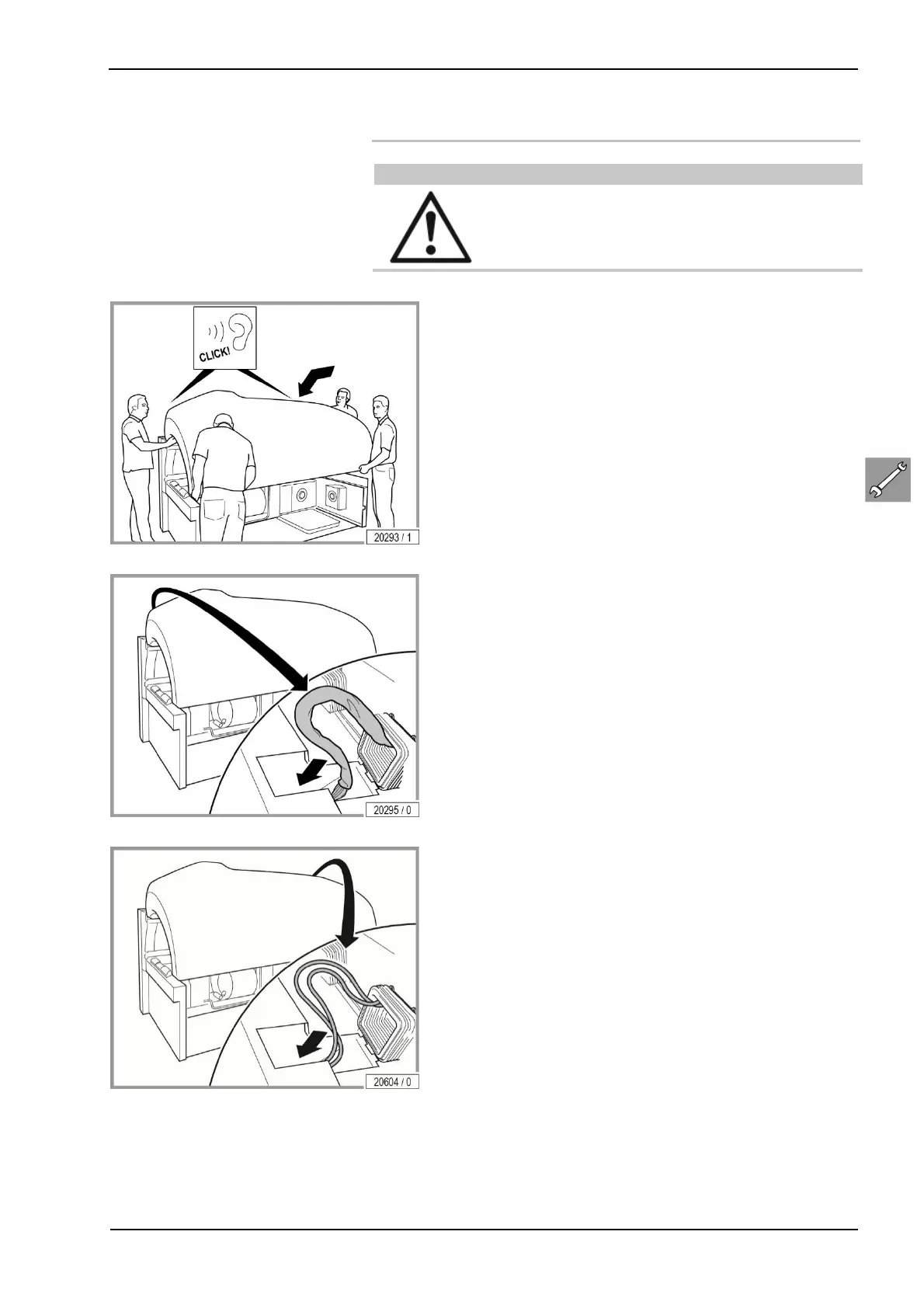

6.3 Installing the canopy
Heavy parts! Risk of injury!
The canopy weighs over 110.0 kg.
This procedure requires four (4) people.
– Place the canopy on the lifting device.
The canopy must lock in place!
– Insert canopy wiring and hoses into the cable
duct.
– Pull out wiring and hoses foot end from inside.
– Pull out wiring at the head end from inside.
The number of cables varies depending on the unit
equipment.
