EROAD Clarity Edge - Standard Power Connection; Standard Power Cable Pinouts

Clarity Edge Install Guide
41
Standard power connection

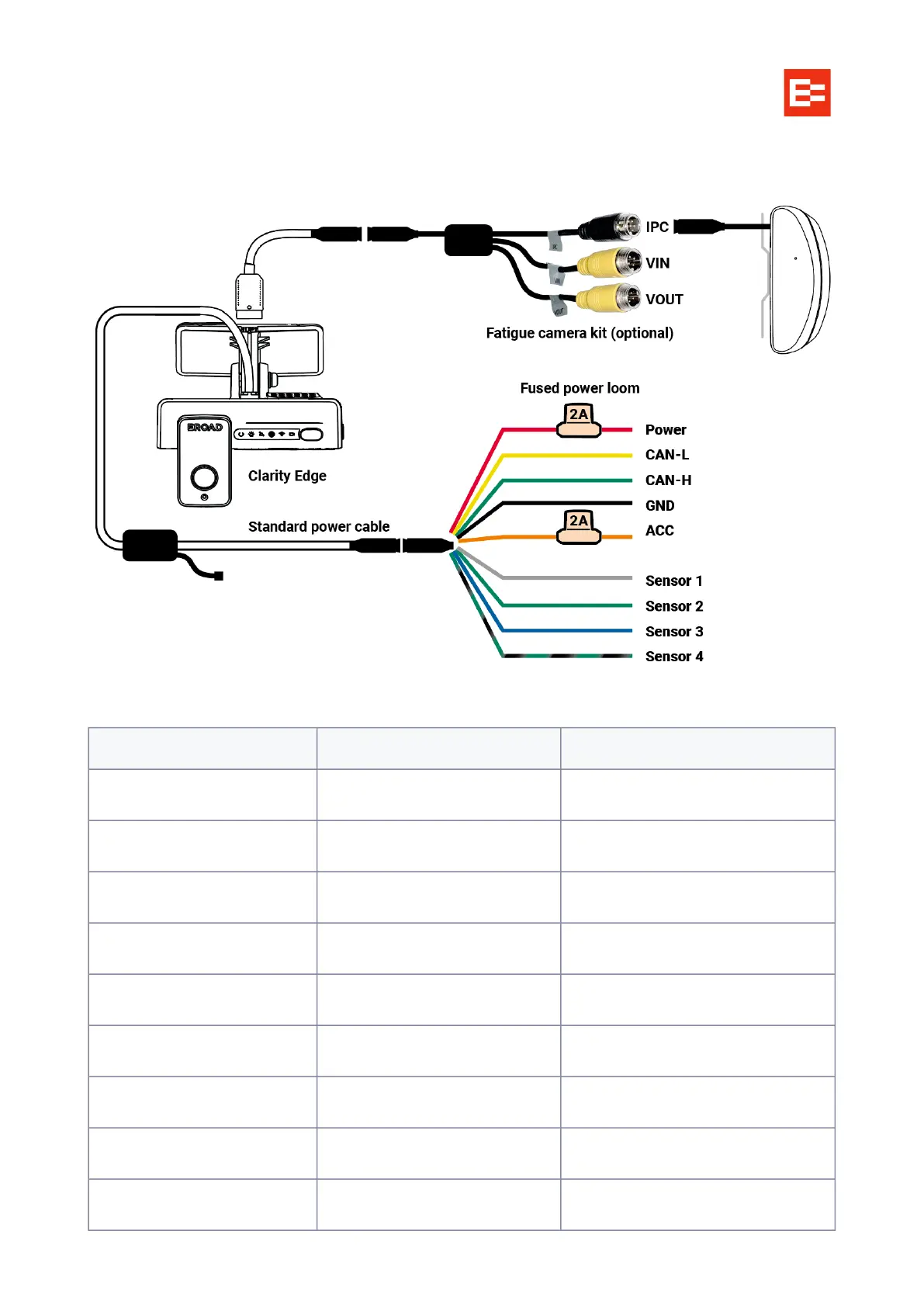

Standard power cable pinouts
Signal Color 10-pin DIN male
ACC Orange 6 (3A fused)
CAN-L Yellow 1
CAN-H Green 2
Sensor IN3 Blue 8
Sensor IN2 Green-Yellow 7
Sensor IN1 Grey 5 (Remote Trigger)
Sensor IN4 Green-Black 9
Power Red 3 (3A fused)
GND Black 10
