Vehicle power (standard) install

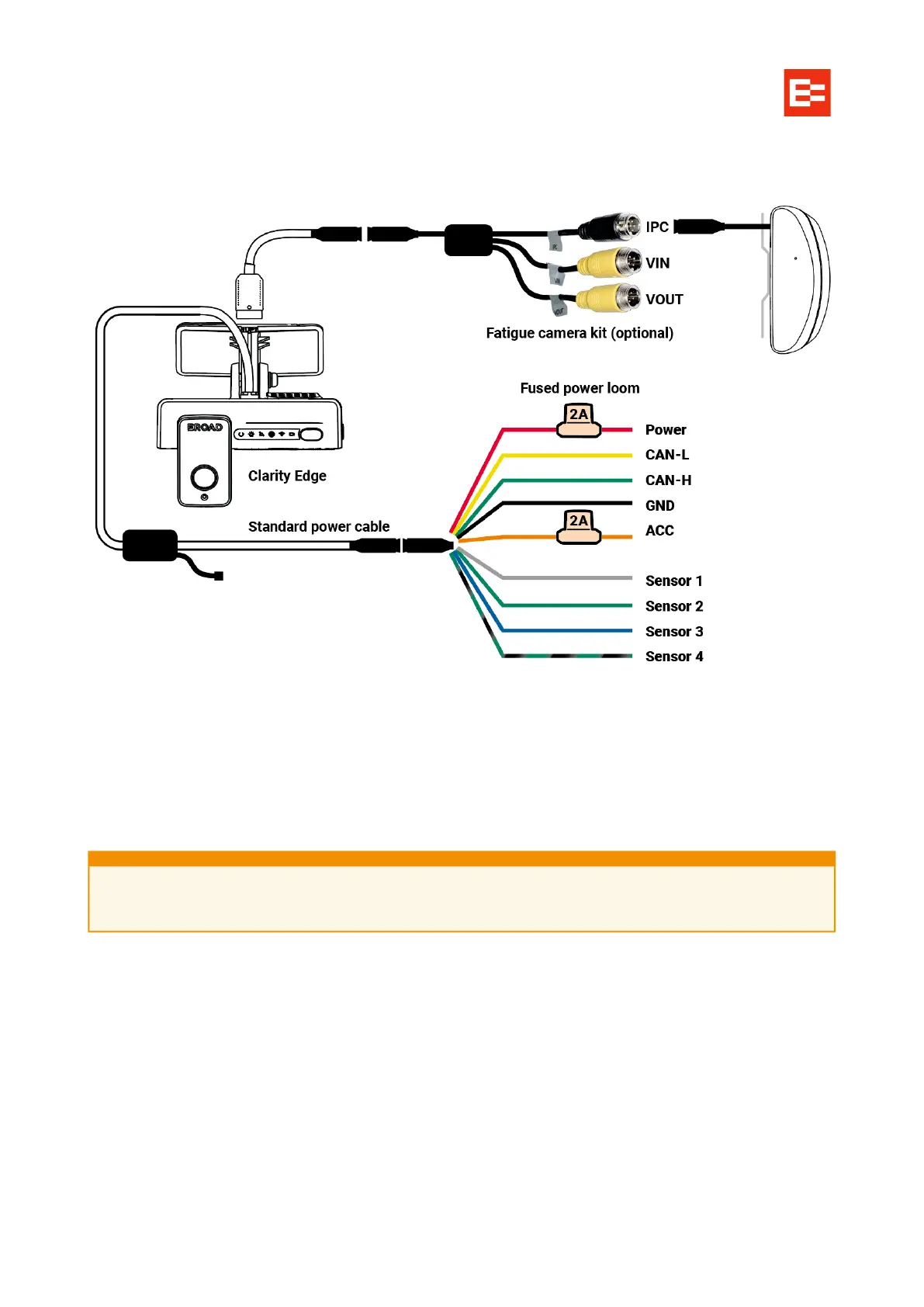

Connect the unit to the standard power supply cable.
Run the cable as illustrated behind the dash. Avoid loops and pinches in the cable.
Connect the fused power loom to the standard cable.
Connect Power (fused), ACC (true idle, ignition, fused) and GND to the corresponding correct vehicle
connection points for the vehicle.
Use the EROAD recommended connection method of solder, tape & cable tie.
• The power supply box MUST be firmly mounted in place via cable ties/ double sided tape.
secure it clear of any excessive shake or vibration locations (loudspeakers, engine etc)

