EROAD Clarity Edge - OBDII Connection Install

Clarity Edge Install Guide
9
1.
OBDII connection install
OBDII power cable
OBDII port.

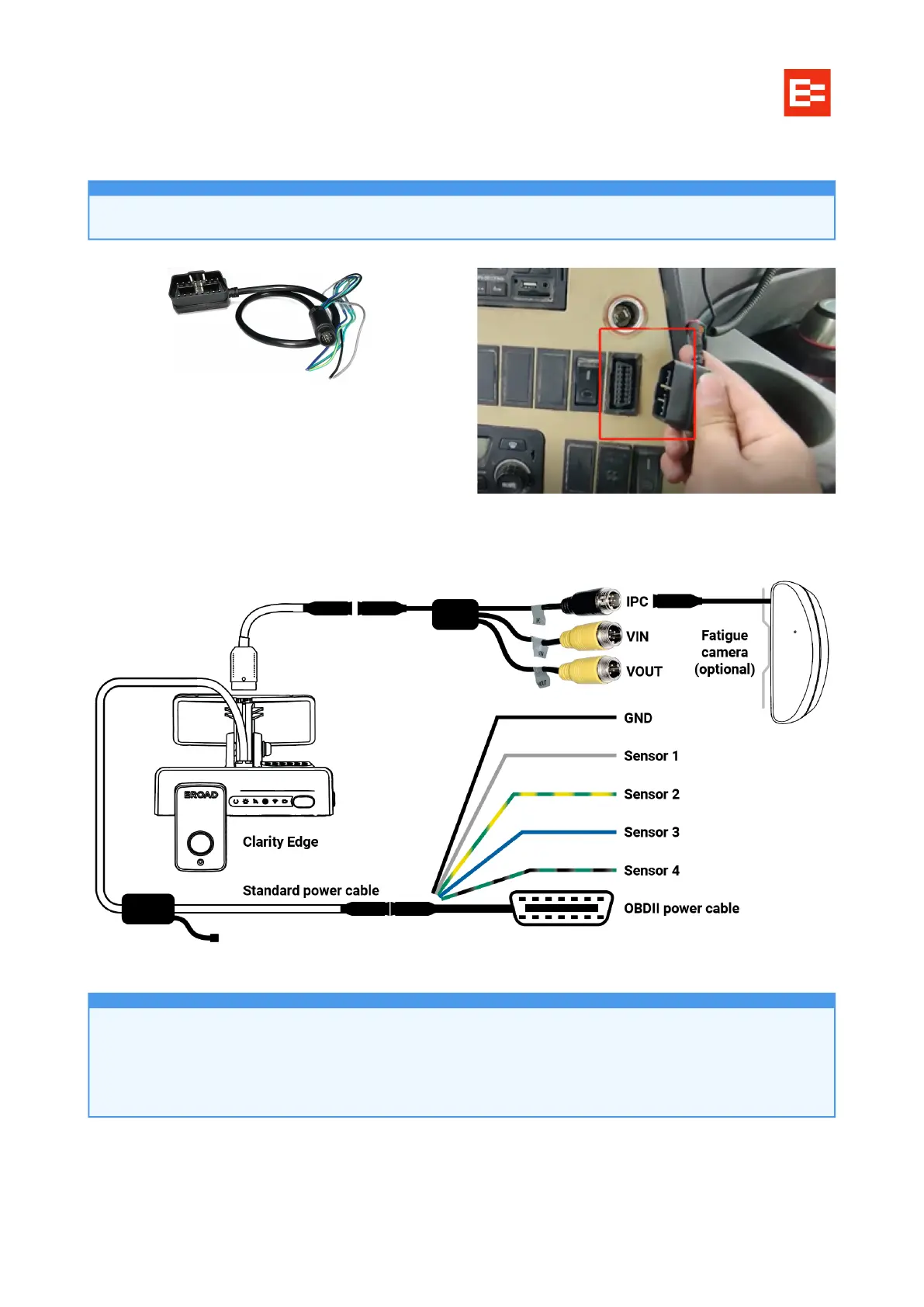

Attach the OBDII harness to the unit loom, and plug the OBDII connector into the vehicle’s port.
If the OBDII port is already occupied, perform a standard installation.

•
•
The power supply box MUST be firmly mounted in place via cable ties/ double sided tape. It
needs to be kept clear of any locations with excessive shake or vibration (loudspeakers,
engine etc)
The power supply box has a built-in turning-on/off control functionality)

