© ESAB AB 2010
-19-
bp12a1
Dedicated power line may be necessary.
EPP-360 is equipped with line voltage compensation but to
avoid impaired performance due to an overloaded circuit, a
dedicated power line may be required.
NOTICE
7.4.2 Input conductors
S Customer supplied
S May consist e ither of heavy r ubber covered copper conductors (three power and
one ground) or run in solid or flexible conduit.
S Sizedaccordingtothechart.
7.4.3 Input connection procedure
IMPROPER GROUNDING CAN RESULT IN DEATH OR INJURY.
CHASSIS MUST BE CONNECTED TO AN APPROVED
ELECTRICAL GROUND. BE SURE GROUND LEAD IS NOT
CONNECTED TO ANY PRIMARY TERMINAL.

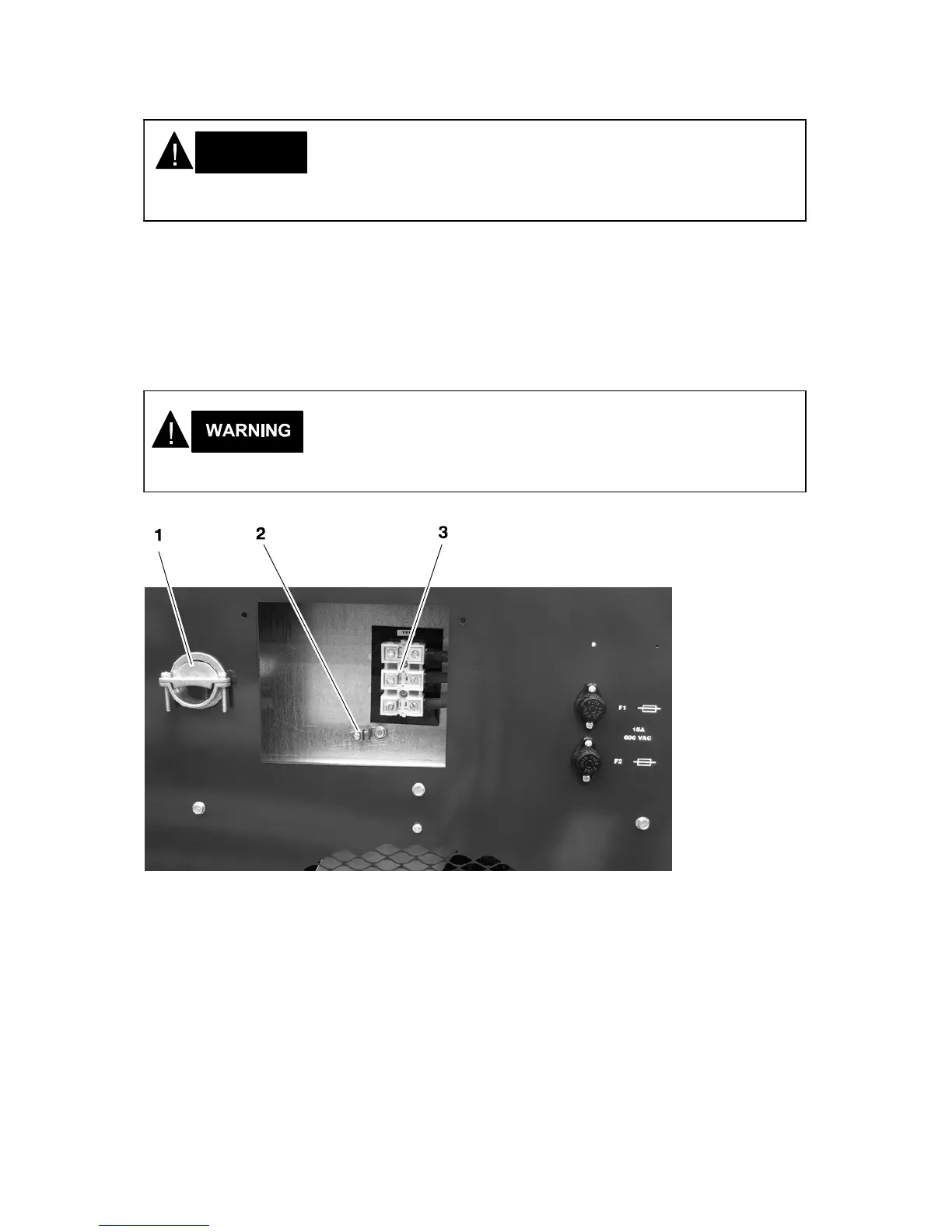

1 Power input cable access
opening (rear panel)
2 Chassis ground 3 Primary terminals
1. Remove small rear panel of the EPP-360.
2. Thread cables through the access opening in the rear panel.
3. Secure cables with strain relief at the access opening.
4. Connect the ground lead to the stud on the chassis.
5. Connect the power leads to the primary terminals.
6. Connect the input conductors to the line (wall) disconnect.
7. Before applying power, replace the rear cover panel.
