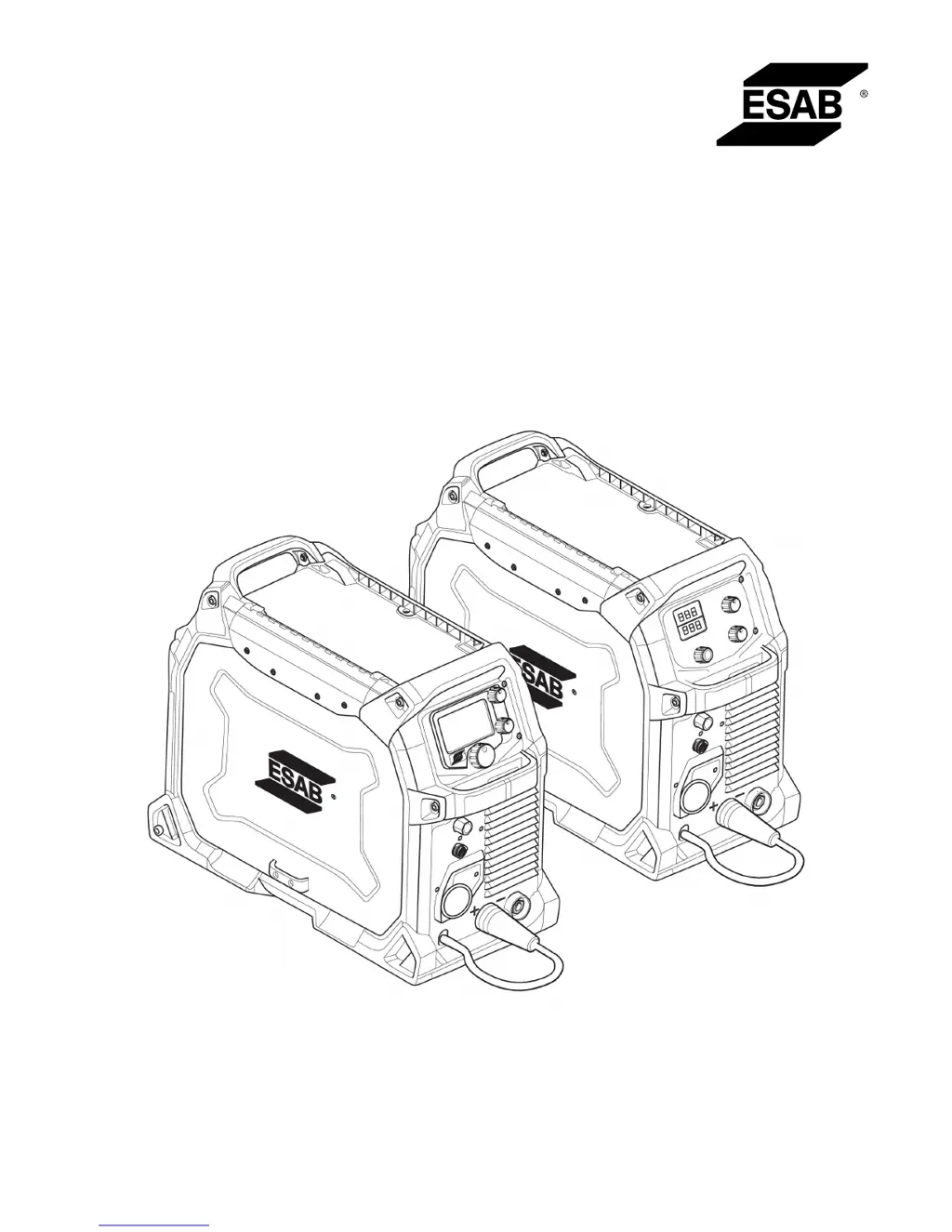

ESAB EMP235ic User Manual (English)

Questions and Answers:

D
dcampbellAug 2, 2025
How to troubleshoot MIG (GMAW/FCAW) welding problems with ESAB Welding System?
- M
  Mary PerryAug 2, 2025
  To address MIG (GMAW/FCAW) welding problems with your ESAB Welding System, ensure the MIG gun is connected with the correct polarity. Replace the contact tip if there are arc marks in the bore that cause excessive drag on the wire. Also, verify that you're using the correct shielding gas, gas flow, voltage, welding current, travel speed, and MIG gun angle. Finally, check that the work lead has proper contact with the workpiece.
N
Nicholas JoyceAug 6, 2025
How to fix wire feeding problems in ESAB EMP235ic?
- R
  Rhonda NelsonAug 6, 2025
  If you're experiencing wire feeding problems with your ESAB Welding System, take these steps: * Ensure the wire spool brake is adjusted correctly. * Check that the feed roller is the correct size and not worn. * Verify the correct pressure is set on the feed rollers. * Use the correct contact tip, ensuring it's not worn. * Confirm the liner isn't bent, which could cause friction between it and the wire.
E
Elaine WashingtonAug 11, 2025
What to do if ESAB EMP235ic Welding System has no arc?
- M
  Madison KingAug 11, 2025
  If your ESAB Welding System isn't producing an arc, check the following: first, ensure the electrical power supply switch is turned on. Next, verify that the mains, welding, and return cables are correctly connected. Confirm that the correct current value is set and check the electrical power supply fuses.
J
John CarsonAug 17, 2025
How to prevent porosity in weld metal when using ESAB EMP235ic?
- Z
  Zachary JonesAug 17, 2025
  To resolve porosity issues in the weld metal with your ESAB Welding System: * Check that the correct gas is connected and the correct gas flow is used. * Keep the distance between the MIG gun nozzle and the workpiece to a minimum. * Ensure the workpiece is clean before welding.
E
Eric SmithAug 22, 2025
How to troubleshoot TIG (GTAW) welding problems with ESAB EMP235ic?
- K
  Karen RussellAug 22, 2025
  To resolve TIG (GTAW) welding problems with your ESAB Welding System, ensure the TIG gun lead is connected to the negative welding terminal. Check that you're using the correct shielding gas, gas flow, voltage, welding current, travel speed, filler rod placement, electrode diameter, and welding mode on the power source. Verify the work clamp has proper contact with the workpiece and that the gas valve on the TIG gun is on.
M
Mark RobinsonAug 27, 2025
Why does the overheating protection trip frequently on my ESAB Welding System?
- P
  pchungAug 27, 2025
  If the overheating protection trips frequently on your ESAB Welding System, ensure that you are not exceeding the recommended duty cycle for the weld current you are using. Also, make sure the air inlets or outlets are not clogged.

ESAB EMP235ic Specifications

General

Brand	ESAB
Model	EMP235ic
Category	Welding System
Language	English

Summary

Safety Precautions

Meaning of Symbols

Explains hazard symbols like Danger, Warning, and Caution used throughout the manual.

General Safety Guidance

Covers electrical shock, fire hazards, fumes, gases, cylinder handling, and personal protective measures.

User Responsibility

Outlines the user's duties for safe operation, workplace readiness, and adherence to regulations.

Introduction and Equipment

Equipment Package Contents

Lists all items included in the EMP/EM series package, including the power source and accessories.

Technical Data Specifications

Installation Procedures

Location and Lifting

Details proper placement, ensuring airflow, and safe lifting procedures for the welding unit.

Electrical Supply and Safety

Covers voltage requirements, supply quality, and general electrical safety for connecting the unit.

Recommended Fuse Sizes and Cable Area

Provides specific recommendations for electrical connections, fuse ratings, and minimum cable sizes.

Operation Guide

Connections and Cables

Explains how to connect welding and return cables, torch connections, and gas supplies.

Polarity Change and Wire Insertion

Details how to change polarity and the procedure for inserting and replacing welding wire.

Wire Feed Settings and Rollers

Covers setting wire feed pressure and changing feed/pressure rollers for different wire types.

Shielding Gas Selection

Guides on choosing the appropriate shielding gas based on the material being welded.

Performance Curves and Limits

Presents Volt-Ampere curves, duty cycle information, and overheating protection features.

Control Panel Navigation

EMP235ic Interface Overview

Details the EMP235ic control panel, main menu, and specific welding modes like sMIG and Manual MIG.

EMP235ic Welding Modes

Explains Flux cored, Stick, and LIFT-TIG modes on the EMP235ic control panel.

Settings and User Information

Covers accessing settings, user manual information, and understanding icon references on the control panel.

EM235ic Interface and Symbols

Explains the EM235ic control panel navigation, symbols, and references like overtemperature and spool gun indicators.

Maintenance and Care

Routine Maintenance

Outlines regular maintenance tasks and inspection points for optimal performance and safety.

Power Source and Wire Feeder Cleaning

Details the procedure for cleaning the power source interior and wire feeder components.

Torch and Liner Maintenance

Explains how to clean and maintain the welding torch and its liner.

Troubleshooting Guide

Parts, Charts, and Diagrams

Ordering Spare Parts

Information on ordering original ESAB spare parts and warranty considerations.

MIG Weld Parameter Chart

Provides recommended settings for MIG welding based on material, wire, thickness, and voltage.

System Diagram and Ordering Numbers

Includes a system diagram and a list of product ordering numbers for machines and kits.

Wear Parts and Accessories

Lists wear parts, consumables, optional accessories, and diagrams for identification.
