ESAB EMP235ic - EMP235 ic Interface Overview

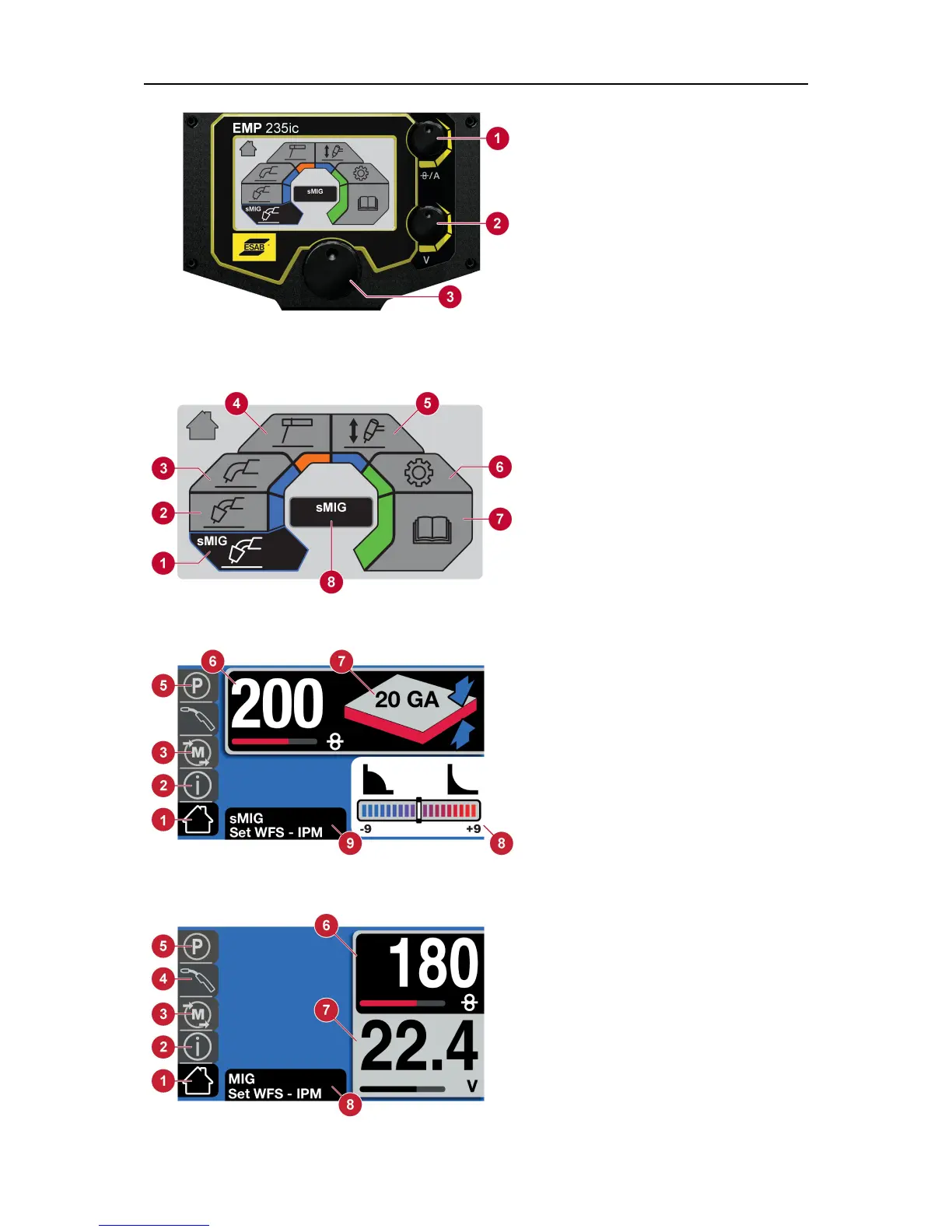

6 CONTROL PANEL
0463 479 001
- 29 -
© ESAB AB 2017
1. Current / Wire feed speed selection
2. Voltage selection
3. Menu navigation. Rotate and push
to select menu option.
6.1.1 Main menu
EMP235ic
1. sMIG mode
2. Manual MIG mode
3. Flux cored wire mode
4. Stick/MMA mode
5. Lift-TIG mode
6. Settings
7. User manual information
8. Dialogue box
6.1.2 sMIG mode
1. Home screen
2. Information
3. Memory
4. MIG/Spool gun selection
5. Parameter
6. Wire feed speed
7. Material thickness
8. Trim box
9. Dialogue box
6.1.3 Manual MIG mode
1. Home screen
2. Information
3. Memory
4. MIG/Spool gun selection
5. Parameter
6. Wire feed speed
7. Voltage
8. Dialogue box
