© ESAB AB 2010
-24-
bp12a1

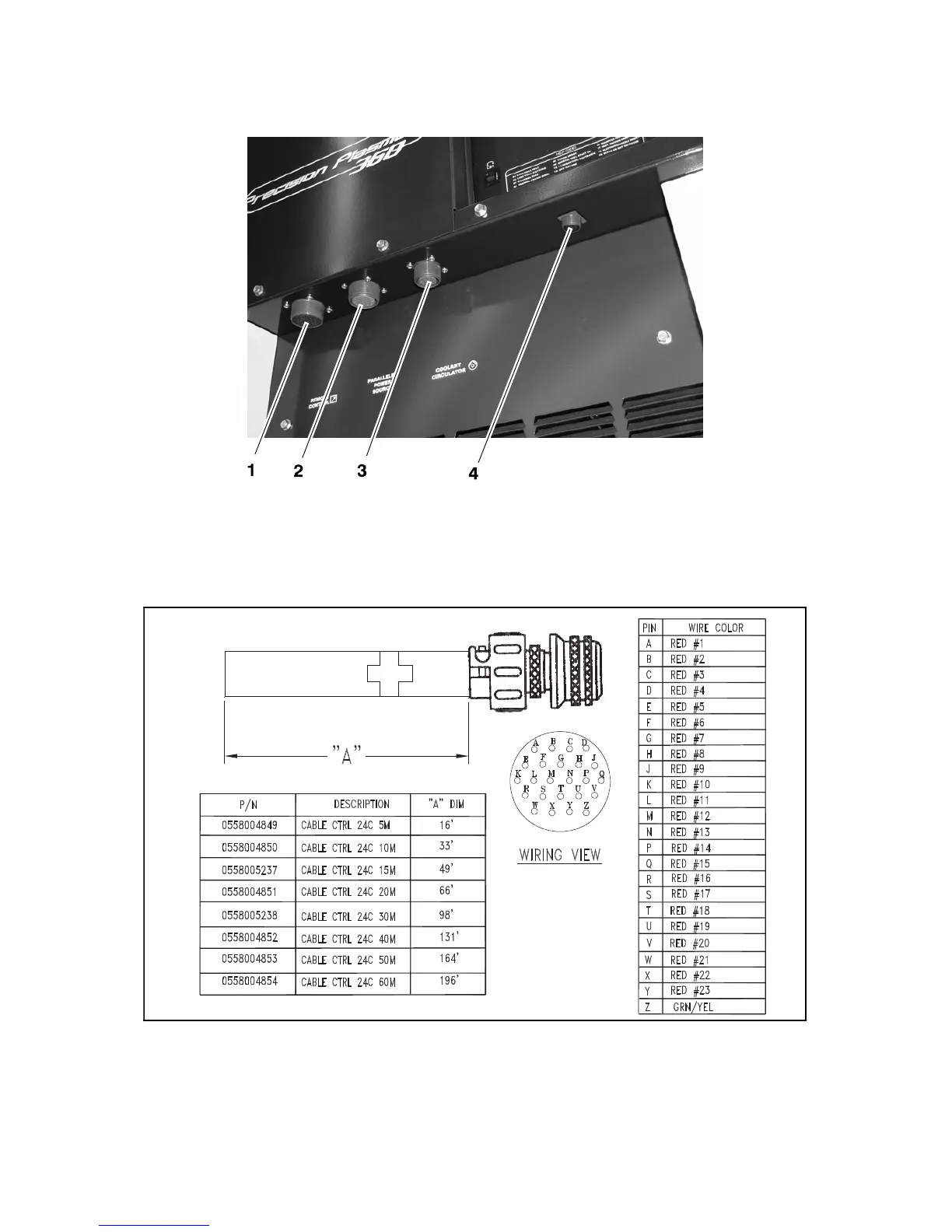

7.7 Interface cable connectors
1 Remote control (CNC) 2 Parallel power source
3 Coolant circulator 4 E-stop connector
7.7.1 CNC interface cables with mating power source connecto r and
unterminated CNC interface
