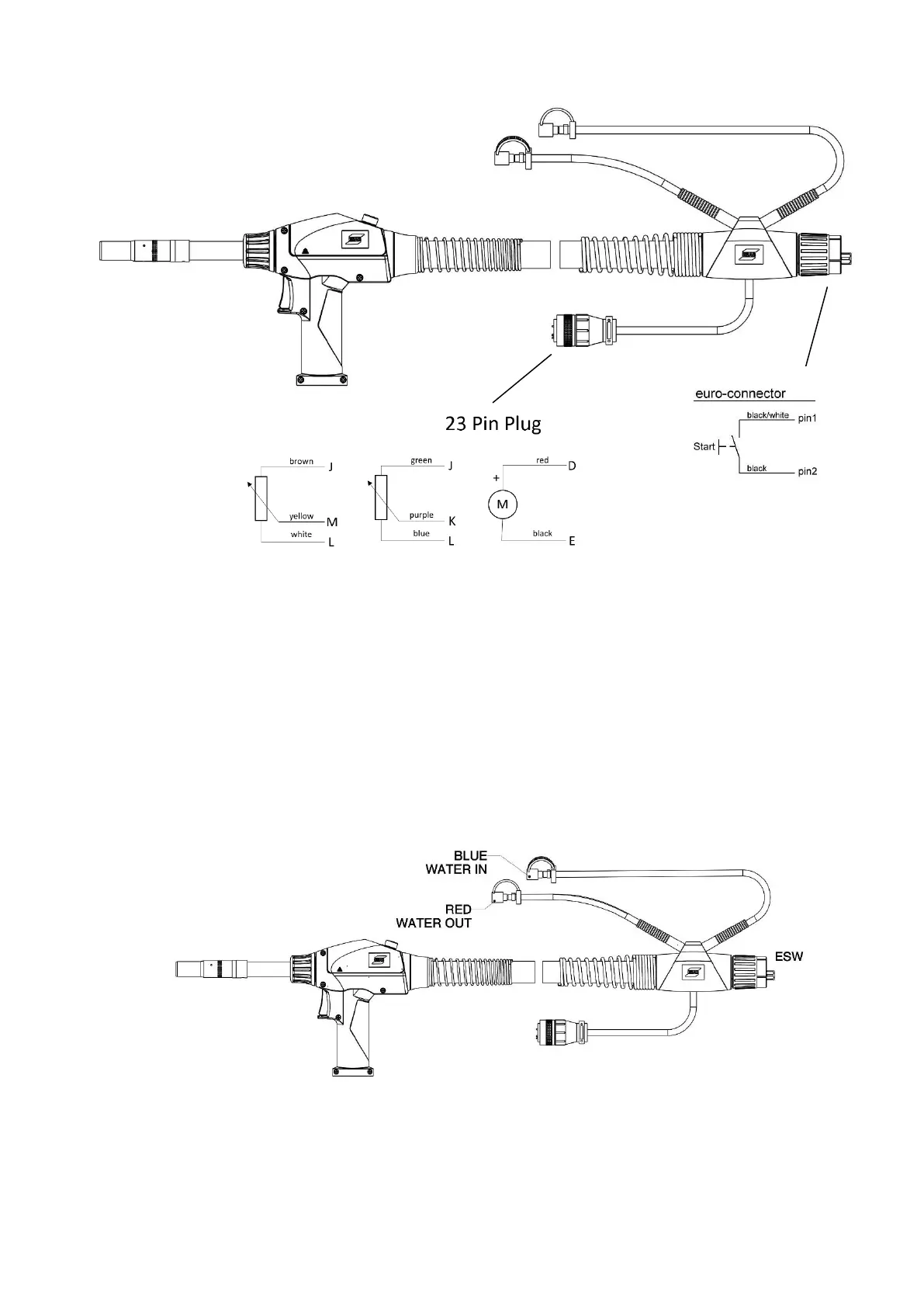

3.4.2 Connection plan for ESAB MXH PP
3.5 Connection to the power source
▪ Connect the central connector of the torch to the power source socket.
▪ Ensure that the wire guide behind the central connector is cut to the correct length. Please also
observe the instructions of your power source. When processing aluminum wire, the wire guide must
reach the feed rolls of the power source.
▪ Tighten the locking nut of the central connector by hand.
▪ Connect the control cable plug to the corresponding socket (suitable connection kit).
3.6 Connection to the cooling circuit (water-cooled torch only)
▪ Connect the blue-marked connection hose of the torch to the inlet flow (“water-in”, cold water) of the
welding machine (cooling device).
▪ Connect the red-marked connection hose of the torch to the return flow (“water-out”, warm water) of
the welding machine (cooling device).
