ESAB MXH 315 PP - Torch Design

DOKP4M4060 3.0 -9- © ESAB/TBi 2021

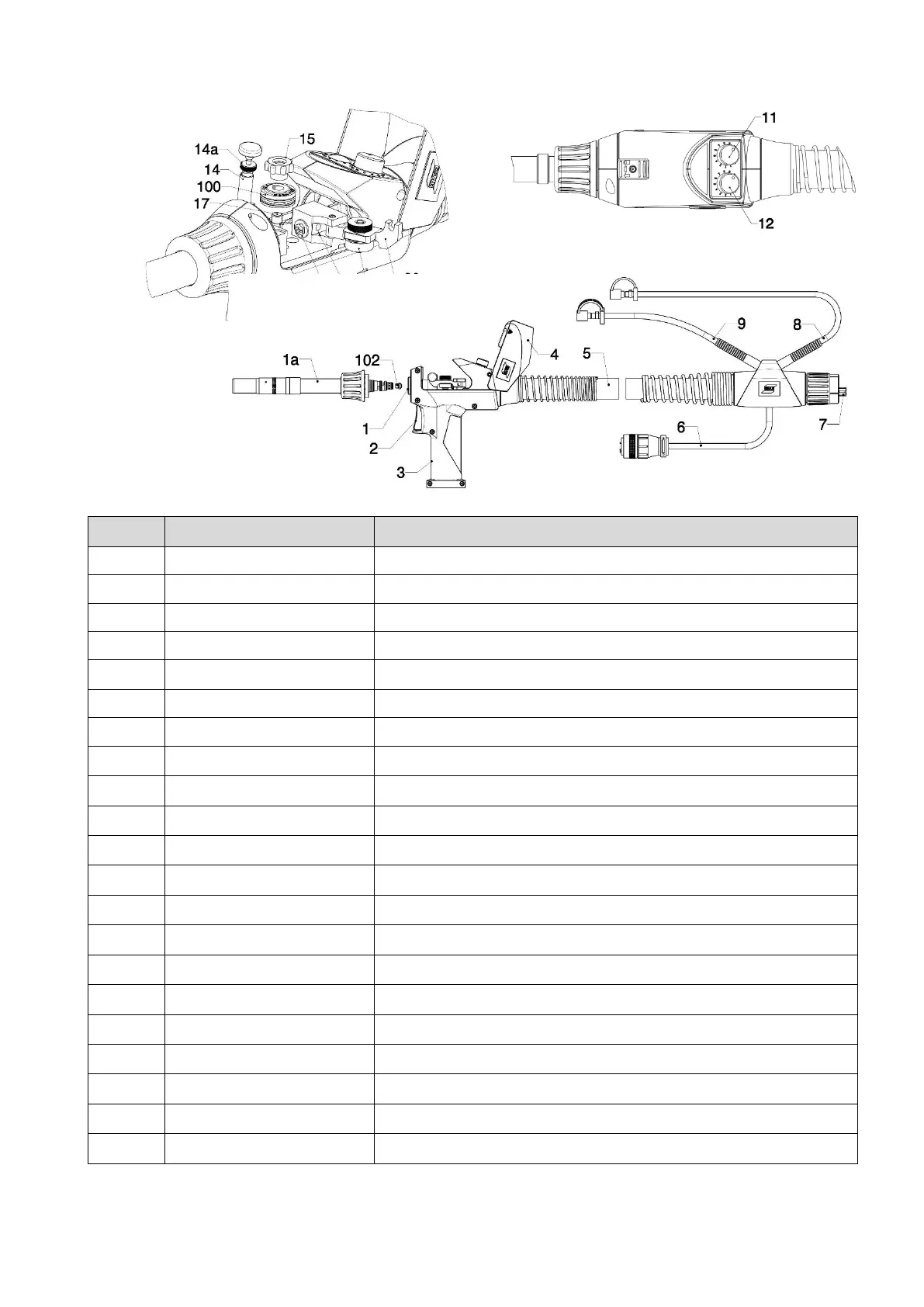

2.4 Torch design
Item
Description
Function/ Description
1
MXH torch neck holder
Quick-change system
1a
MXH PP Torch neck
In different versions (air and/or water-cooled models)
2
Torch switch
power source On/Off
3
Handle
4
Cover
5
Cable assembly
6
Control cable
To connect drive motor (supply voltage) and control elements
7
EURO central connector
8
Water inlet
Marked blue (water-cooled version only)
9
Water return
Marked red (water-cooled version only)
11 & 12
Potentiometer
To connect to the remote-control interface of the power supply
13
Viewing window
Control viewing window for the correct positioning of the wire guide
14
Tension spring holder
Locking device for pressure roll holder
14a
Adjusting screw
Regulating the contact pressure (pressure roll holder)
15
Knurled nut
Fixing the drive roll
100
Feed roll
For feeding the welding wire
17
Drive shaft
Drive/mounting of drive roll
19
Pressure roll
For the wire guide to the drive roller
20
Pressure roll holder
Holder of the counter-pressure roll
101
Wire guide
guides the welding wire to the feed roll
102
Inlet guide
for fixing the wire guide in the torch neck
