Esco Ascent max - Troubleshooting; Troubleshooting Common Issues



27
DuctlessFumeHoods
Chapter7–Troubleshooting

Thisguideaddressesthemostcommonserviceissues.Formoretroubleshootingorserviceinformation
contactyourlocalESCODistributor.

Hardware:
• DVM(DigitalVoltageMeter).
Note:Ananalogmetercanbeusedfortroubleshooting,butcannotbeusedformotorvoltagemeasurement.
• Phillipsscrewdriver
• Insulatedjumpercables

TheElectricalPanelandComponentLayout:

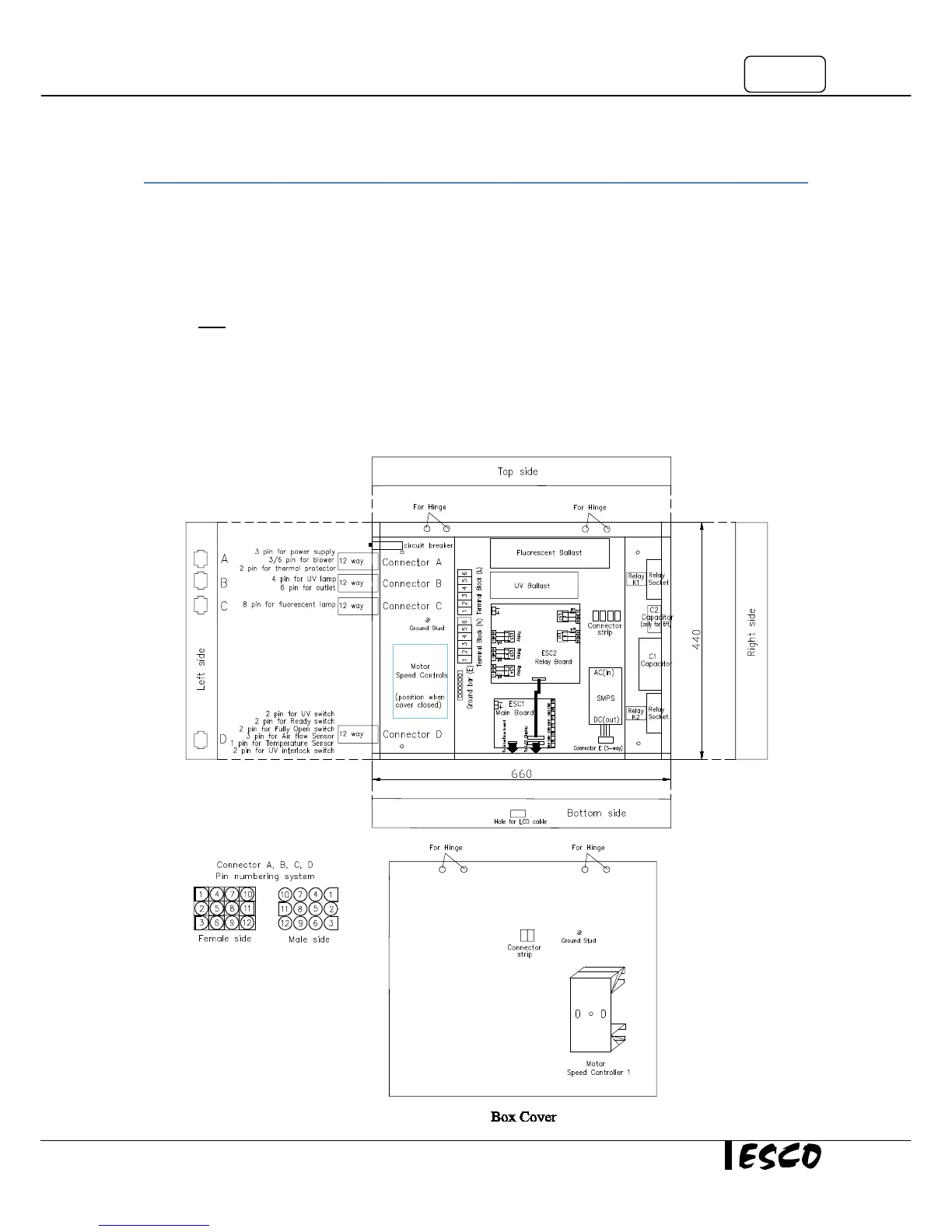

Open the front panel, the electrical panel is the red covered box located on the back of the panel. The
componentlayoutisasfollowed:


