8.3AscentMaxADC_D_Series

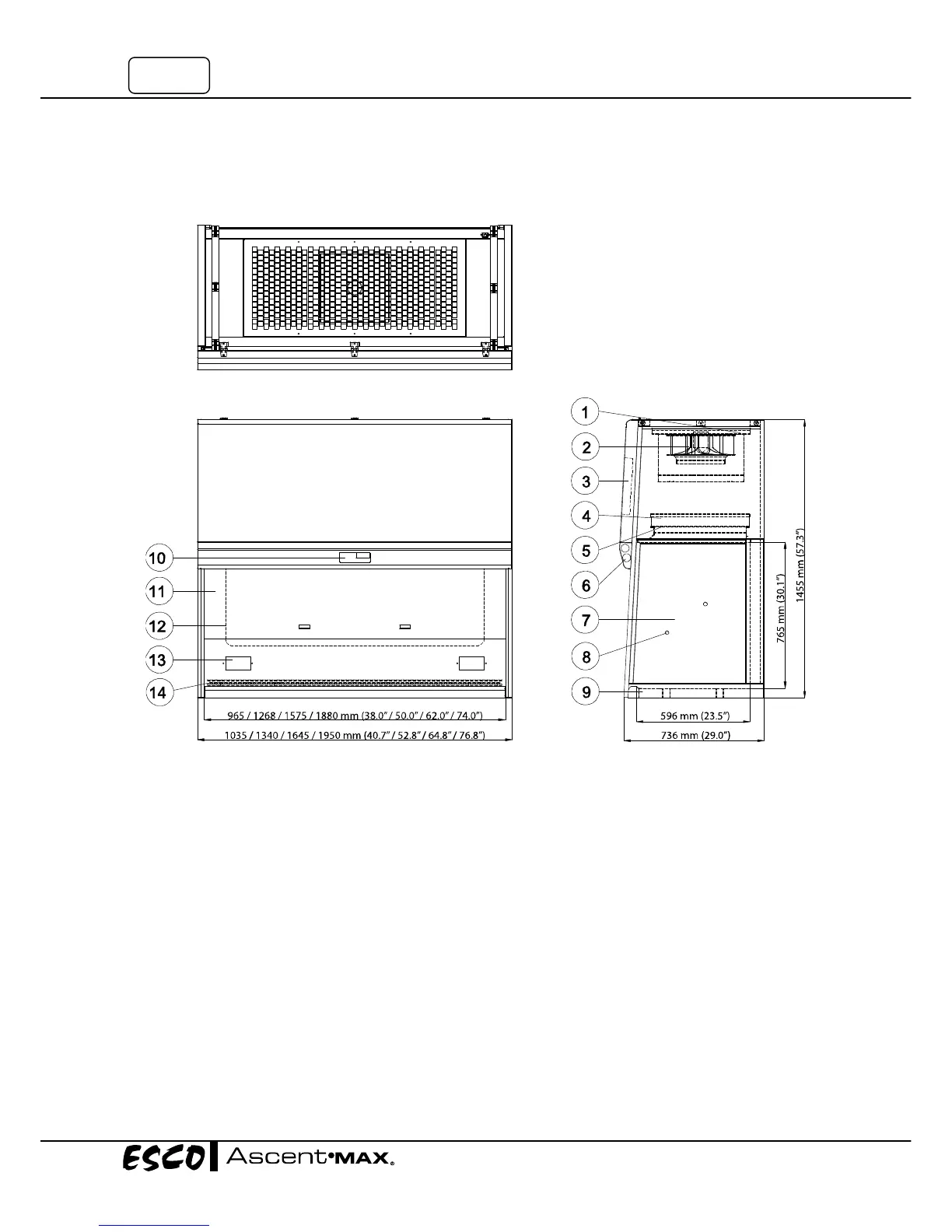

8.3.1EngineeringDrawing



1. VOCsensor(optional)
2. Blower
3. Electrical/ElectronicPanel
4. CarbonFilter(s)
5. Pre‐Filter
6. FluorescentLamp
7. TemperedGlassSides
8. PluggedServiceFixtureProvision(2oneachside)
9. StainlessSteelWorktop
10. EscoSentinelMicroprocessorControl
11. TemperedGlassSlidingSashWindow
12. TemperedGlassBackWall

13. ElectricalOutletKitProvision
14. AutoPurgeSlots

 
