8.4AscentMaxADC_E_Series

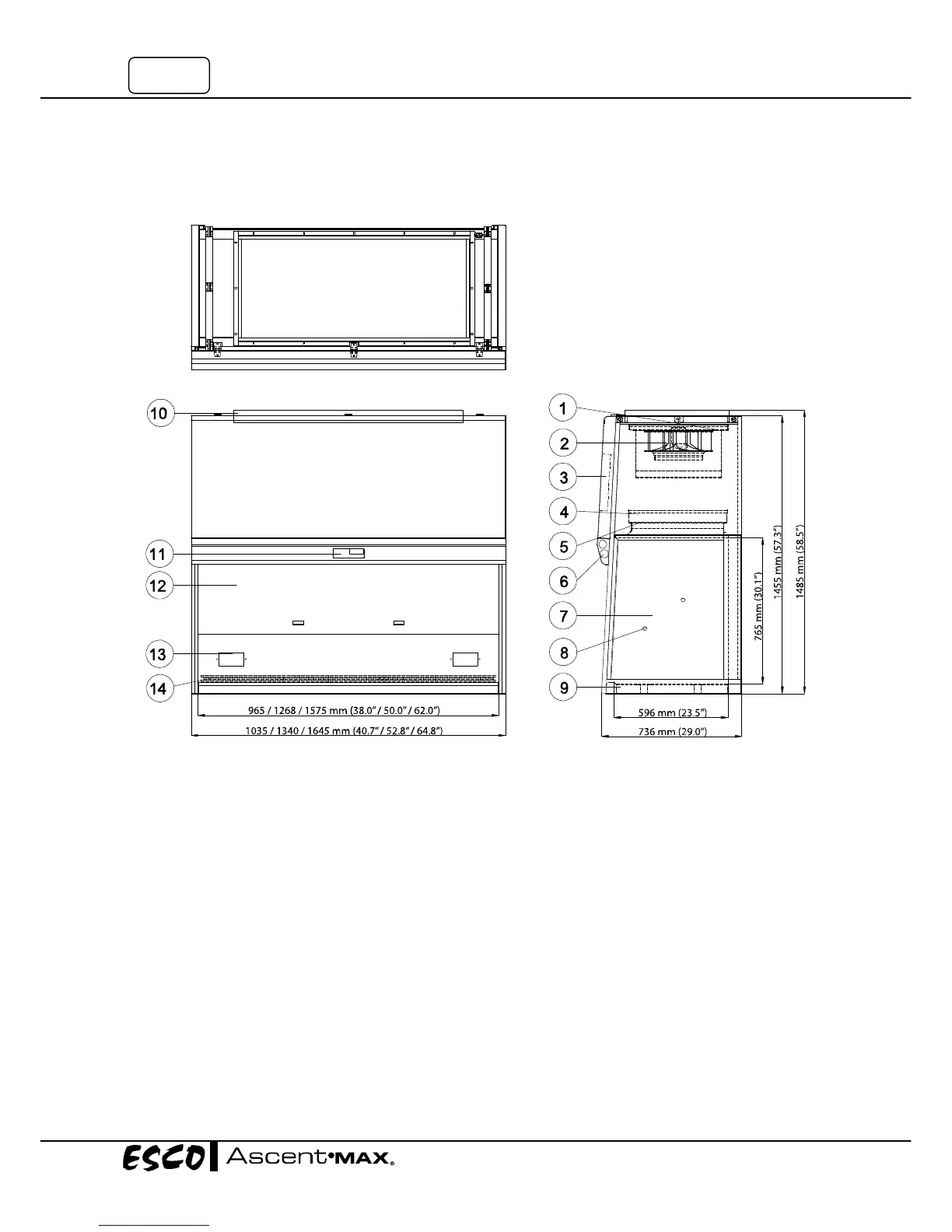

8.4.1EngineeringDrawing



1. VOCsensor(optional)
2. Blower
3. Electrical/ElectronicPanel
4. CarbonFilter(s)
5. Pre‐Filter
6. FluorescentLamp
7. TemperedGlassSides
8. PluggedServiceFixtureProvision(2oneachside)
9. StainlessSteelWorktop
10. SecondaryBackupHEPAFilter
11. EscoSentinelMicroprocessorControl
12. TemperedGlassSlidingSashWindow

13. ElectricalOutletKitProvision
14. AutoPurgeSlots
 
