eta SH20 - Setting the Hot Water Charging Times

ETAtouch controller [Fresh water module] function block
49
based on the set runtimes and pauses, regardless
of whether hot water is currently being drawn or
not.
Example:
Time window = 10:00 am to 2:00 pm
[Circulation runtime] = 5 minutes
[Circulation pause] = 10 minutes
=> The pump runs from 10:00 am to 10:05 am ,
then pauses until 10:15 am , restarts at 10:15 am,
pauses from 10:20 am to 10:30 am , and so on ...
until the end of the time window at 2:00 pm .
In this operating mode, the circulation pump
can also start outside of the time window
when hot water is being tapped. This is useful if, for
example, the time window ends at 8:00 pm and
you shower at 9:30 pm . When you then turn on the
hot water briefly, the circulation pump starts, and
you will have hot water for showering shortly
afterwards.
This runtime (outside the time window) is set in the
text menu (parameter [Circulation pump delay]).
Enter the same value as parameter [Circulation
runtime].
7.5.1 Setting the hot water charging times
Open the overview screen of the set charging
times and temperatures
The standby times for the hot water and the set tem-
peratures can be adjusted in the settings ( button).
To adjust, open the settings and then open the standby
times of any given day with the [Stand-by times
Daily plan] button. An overview screen opens.

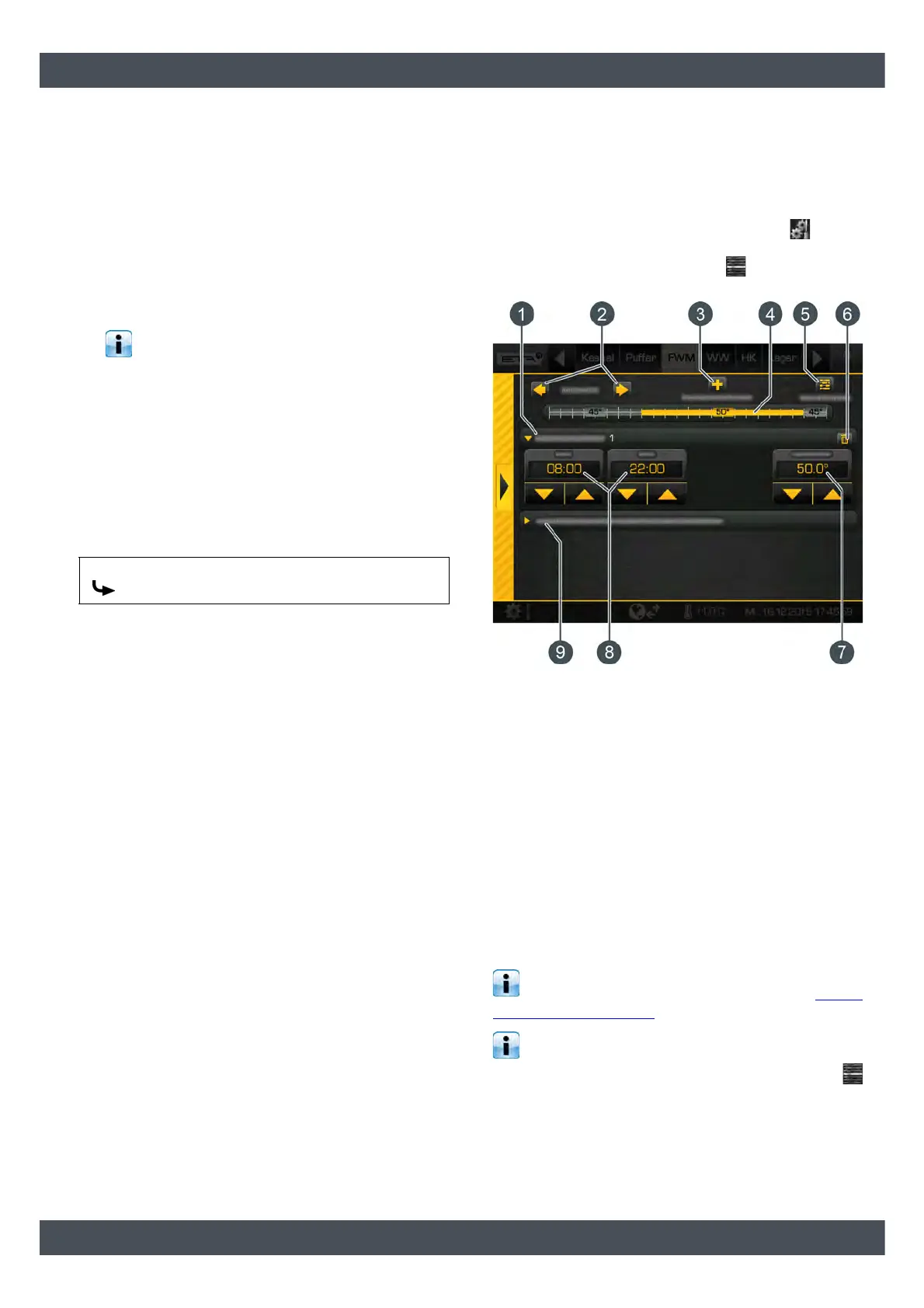

Fig. 7-53: Overview
1 Set time windows (standby times)
2 Select day of the week
3 Add another time window
4 Graphical representation of the time window
setting
5 Overview of all time windows for the entire week
6 Delete time window
7 Adjustable hot water temperature within the time
window
8 Period of the time window
9 Set-back temperature of the hot water outside the
time window
Setting the time window and copying to other
days of the week is described in chapter 7.1.6.6
"Setting a time window".
If a circulation pump is also installed (and the
function [Self-learning] is switched off), these
operating times are set in the same way (button
[Circulation times Daily plan]).
Circulation
Circulation pump delay
