ETAS Getting Started
ES592.1 - User Guide 30

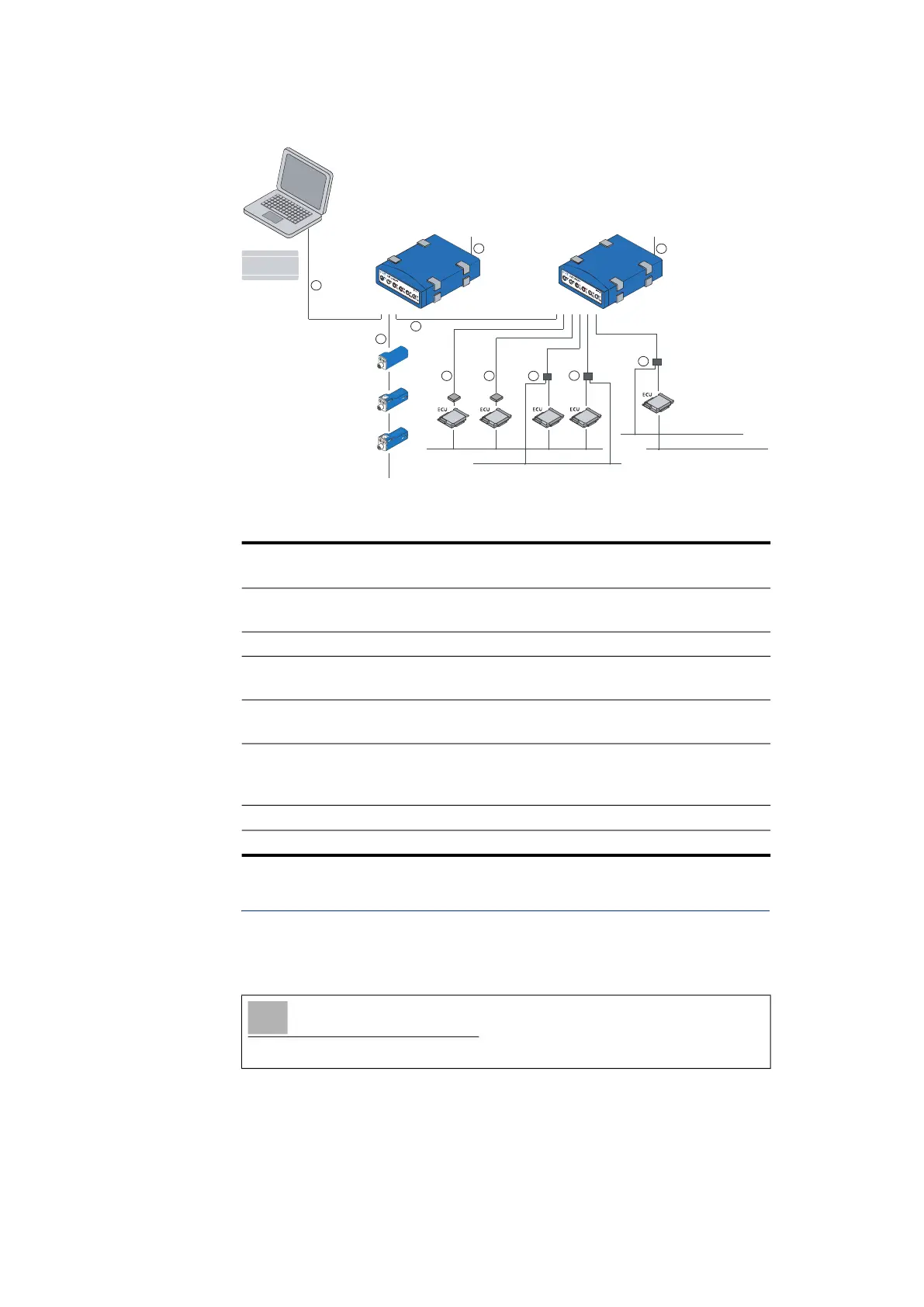

Fig. 6-4 ES592.1 and ES595.1 with ES400 modules, XETK, ETK and vehicle
buses
6.3 Wiring
The ports of the ES592.1 may be wired in any order.
For order information on other cables which can be supplied separately, refer to
the chapter
“Cable and Accessoires” on page 53.
Cable in
Fig. 6-4
Function Short Name
1 Power supply cable CBP120,
CBP1205
2 Host connecting cable CBE100
3 PC connecting and Power supply cable ES4xx, ES63x CBEP420,
CBEP425
4 Ethernet connecting cable CBE130,
CBE140
5 XETK connecting cable with XETK interface cable CBAE330
and
CBE230
6 ETK connecting cable CBM150
7 CAN/ LIN/ FlexRay connecting cable CBCFI100
NOTE
Be sure to check that the ports carry no voltage, before starting the cabling.
LIN
CAN
Ethernet
Application
4
7
CAN2
LIN2
7
CAN1
LIN1
ETK
6
ETK
ES595
1
7 ... 29 V DC
7
FLX1
FLX2
FlexRay Channel A
FlexRay Channel B
3
XCP
on
Ethernet
ES400
ES592
1
7 ... 29 V DC
5
XETK
XCP on Ethernet
Ethernet
ETH
2
